PCI Express x4, 4/8-Port USB 3.0 Expansion Card Advantech PCE-USB4

Price and avalability

Partnumber Description Price VAT incl Avalability
PCE-USB4-00A1E Мережевий пристрій/Перетворювач інтерфейсів 4 USB3.0 Ports expansion card(PCIex4)  11 757,6
PCE-USB8-00A1E Мережевий пристрій/Перетворювач інтерфейсів 8 USB3.0 Ports expansion card(PCIex4)  14 177,2

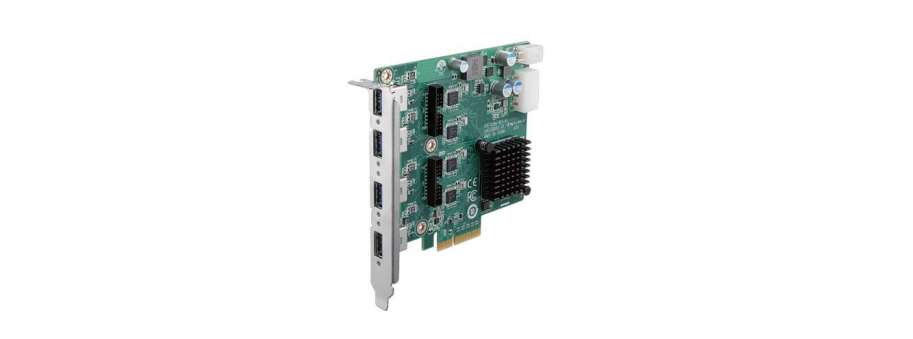

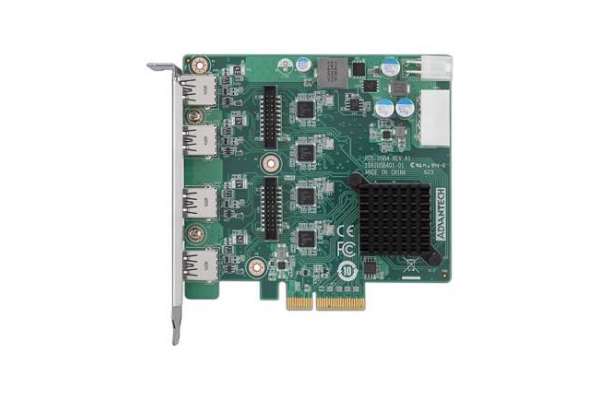

PCE-USB4 is a 4-port PCIe x4 expansion card aimed at industrial imaging applications. Featuring four independent Renesas μPD720202 USB 3.0 host controllers, a Gen 2 PCI Express® x4 interface, and a per-port bandwidth of 5 Gbps when operating four ports simultaneously, PCE-USB4 delivers maximal per-port performance. PCE-USB4 features four USB 3.0 ports (for expansion, PCE-USB8 features eight USB 3.0 ports) with 1500 mA current to ensure stable power for external USB devices. PCE-USB4 is a high-bandwidth industrial-power expansion card designed for machine vision, factory automation, and medical applications, as well as any other applications that require high data transfer speeds.

  • Four USB 3.0 host controllers
  • Supports 1500mA Max. current per port
  • Supports four or eight USB 3.0 ports
  • Compliant with USB 3.0 specification and Intel® xHCI specification, revision 1.0
  • PCI Express x4 interface
  • Supports Microsoft Windows 7/8.1/10 and Linux operating systems

Additional information

USB

Interface PCI Express x4
Connector

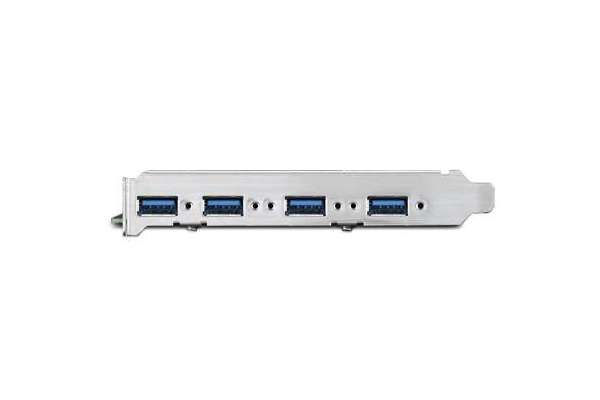

  • 4 x USB 3.0 Type A (PCE-USB4-00A1E)
  • 8 x USB 3.0 Type A (PCE-USB8-00A1E)
Host Bus 4-lane Gen 2 PCIe interface, compliant with PCI Express Base Specification, Revision 2.0
Controller
  • 4 x Renesas μPD720202 host controllers
  • Compliant with Universal Serial Bus 3.0 Specification and Intel® xHCI Specification, Revision 1.0
Max. current 1500 mA maximum per port
Data Transfer Rate Super speed (5.0 Gbps)/high speed (480.0 Mbps)/full speed (12.0 Mbps)/low speed (1.5 Mbps)

Environment

Operating Temperature 0 ~ 60 °C
Storage Temperature -40 ~ 85 °C
Dimensions (L x H) 118 x 111 mm (4.64" x 4.37")
Certifications CE/FCC, Class B
