Affordable Fanless Embedded Computer on Intel® Pentium® N4200 / Celeron® N3350 Processor Cincoze DA-1100

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

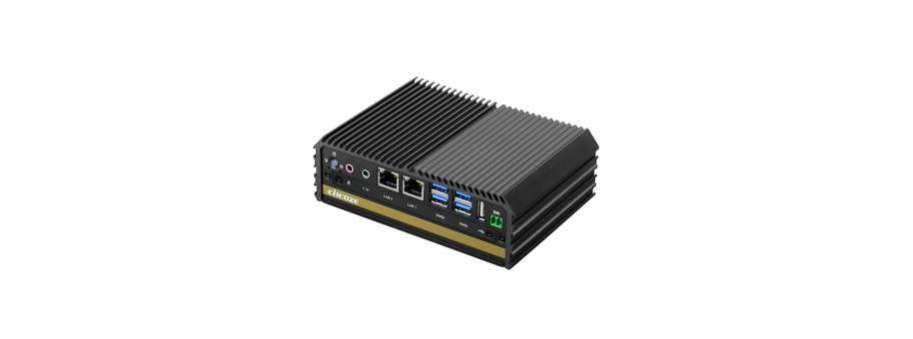

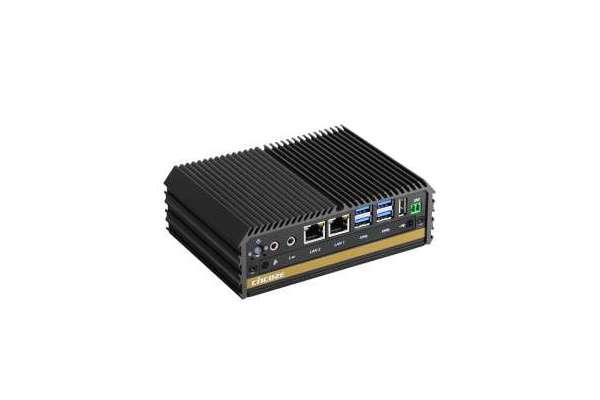

Cincoze’ DA-1100 affordable fanless embedded computer is based on the Intel® Pentium® N4200 / Celeron® N3350 processor. This mainstream Intel® SoC (Apollo Lake) integrates the Intel® Gen 9 graphics architecture with triple display support in 4K/2K UHD resolution. DA-1100 supports both Combined Multiple I/O (CMI) and Control Function Module (CFM) which are specially designed for flexible I/O and function expandabilities, such as COM ports, optical isolated digital I/O, LPT/PS2, HDMI, DisplayPort, DVI-D, VGA, and Power over Ethernet (PoE). Leveraging a reliable fanless and durable cable-free design in an ultra-compact aluminum housing, DA-1100 is ideally for deployment in space-constrained place and continuous operation under harsh environments.

  • Onboard Intel® Pentium® N4200 / Celeron® N3350 Processor
  • Supports Triple Independent Display
  • Supports PoE+ Function (with optional CFM module)
  • Supports CMI Interface for I/O Expandability
  • 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • 2x Full Size Mini-PCIe Socket, 1x SIM Card Socket
  • Ultra Compact Size (150 x 105 x 52.3 mm)
  • Wide Operating Temperature -40°C to 70°C
  • Safety: LVD EN62368-1

Additional information

Processor
  • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
  • Onboard Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz
BIOS AMI BIOS, 8MB SPI Flash ROM built on board
Memory
  • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
  • Supports up to 8GB (un-buffered and non-ECC)
Graphics
  • Integrated Intel® HD Graphics 505 (Pentium® N4200)
  • Integrated Intel® HD Graphics 500 (Celeron® N3350)
  • Supports Triple Independent Display (DVI-D + VGA from DVI-I, one output from optional CMI module)
Audio Codec Realtek ALC888-GR

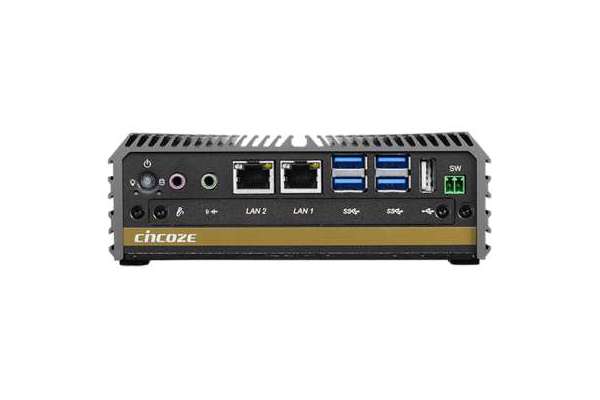

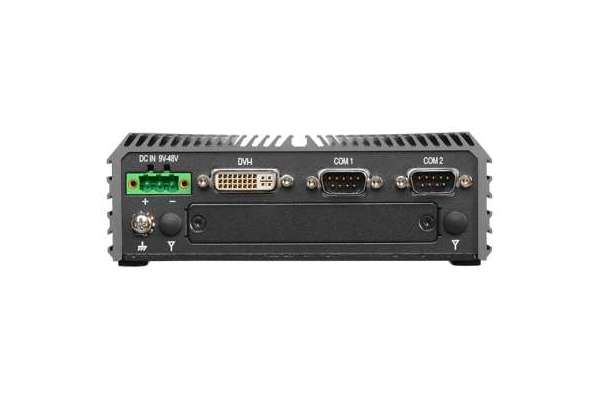

External I/O Interface
  • 1x DVI-I (1920 x 1080 @60Hz)
  • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 (- GbE1: Intel® I210 - GbE2: Intel® I210)
  • 4x USB 3.0 (Type A)
  • 1x USB 2.0 (Type A)
  • 2x RS-232/422/485 with Auto Flow Control, DB9
  • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/Off Button
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Switch
  • 1x Remote Power On/Off Connector, 2-pin Terminal Block
Storage
  • 1x mSATA (SATA 3.0, Shared by Mini-PCIe Socket)
  • 1x 2.5" HDD/SSD or 1x Half-Slim SSD (SATA 3.0) * The 2.5” HDD/SSD bracket has to be removed when installing Mini-PCIe MEC LAN Module or Half Slim SSD.
Expansion
  • 2x Full-size Mini-PCIe Socket
  • 1x Control Function Module (CFM) Interface

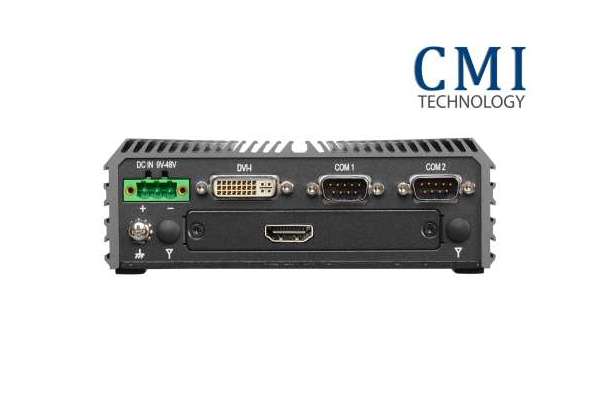

  • 1x Combined Multiple I/O (CMI) Interface
  • 1x SIM Card Socket
  • 2x Antenna Holes
Other Functions
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
  • Supports Instant Reboot Technology (0.2 sec)
Power Requirement
  • Supports AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • 1x 3-pin Terminal Block
  • Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)
Physical
  • Dimensions (WxDxH, mm): 150 x 105 x 52.3 mm
  • Weight: 0.87 kg
  • Construction: Extruded Aluminum with Heavy Duty Metal
  • Mounting: Wall / VESA (Optional DIN-Rail/Side Mounting)
  • Unibody Chassis
  • Fanless Design
  • Jumper-less Design
  • Cable-less Design
Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 20A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System
  • Windows® 10
  • Linux: Supports by project
Environment
  • Operating Temperature: -40°C to 70°C ( * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 95%RH @ 70°C (non-Condensing)
  • Shock: Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27
  • Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64
  • MTBF: 632,353 Hours
Certification
  • EMC: CE, FCC Class A
  • Safety: LVD EN62368-1
