Box Computer EPC-R4680

Rockchip RK3288 Cortex-A17 ARM Based Box Computer by Advantech with 4K display, 6 USB2.0, 6 UART, 1 GbE and 8 GPIO EPC-R4680

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

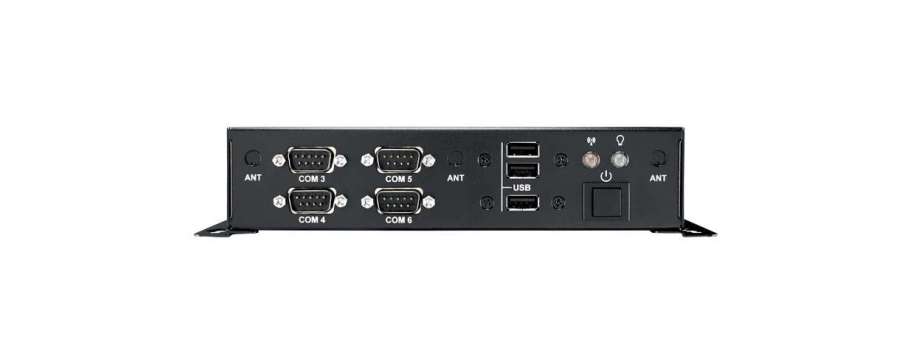

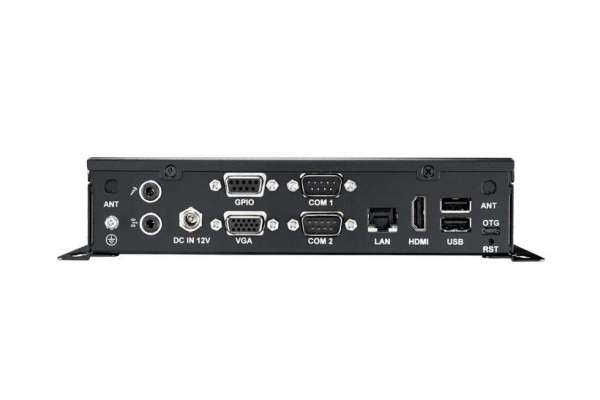

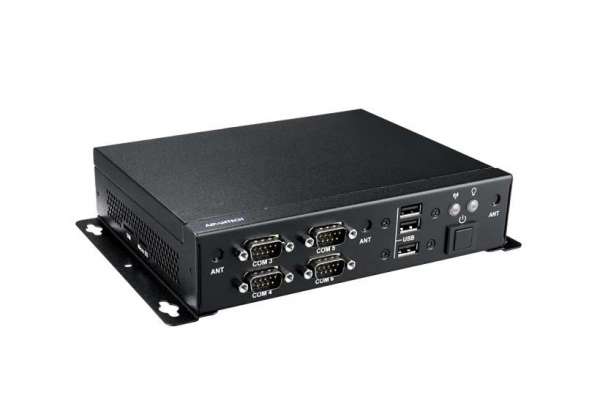

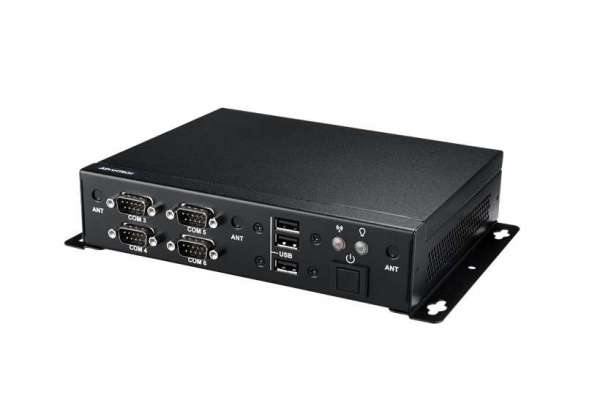

EPC-R4680 is an ARM based Box Computer powered by Rockchip ARM Cortex-A17 RK3288 Quad core high performance processor, which supports 4K display and 4Kx2K multiformat video decoding via HDMI. It also features M.2, Mini-PCIe and SIM card slots for WIFI, BT and 4G connectivity. EPC-R4680 also offers rich interfaces such as 6 USB2.0, 6 UART, 1 GbE and 8 GPIO. It is an ideal solution for Kiosk,Vending machine and Digital signage application.

  • Rockchip ARM Cortex-A17 RK3288 Quad core up to 1.6GHz
  • Onboard 2GB DDR3L memory and 8GB eMMC
  • Support 4K H.264/H.265 Video decoding, OpenVG1.1, OpenGL ES1.1/2.0/3.0, OpenCL1.1, DrectX11.
  • Support HDMI 3840 x 2160 at 60Hz, VGA 1920 x 1200 at 60Hz
  • 6 UART, 5 USB2.0, 1 USB OTG, 1GbE, 8GPIO
  • Support M.2 slot for WIFI/BT module, Mini-PCIe slot for 4G module
  • Support Linux and Android

Price and avalability

Partnumber Description Price VAT incl Avalability
EPC-R4680CQ-XAA1E EPC-R4680 RK3288 Quad core/2GB DDR3L System  14 262,5
EPC-R4680CQ-XAA1E EPC-R4680 RK3288 Quad core/2GB DDR3L System  14 262,5

Additional information

Specifications



Form Factor

ARM-based Box Computer

Processor


CPU Rockchip ARM® Cortex® A17 RK3288 Quad-core, up to 1.6 GHz
Technology DDR3L 1333MHz
Capacity On-board 2GB DDR3L
Flash 8GB eMMC NAND Flash for OS and Advantech boot loader 4MB SPI NOR Flash

Graphics


HDMI 1 HDMI, 3840 x 2160 at 60Hz
VGA 1 VGA, up to 1920 x 1200 at 60Hz
H/W Video Codec Encode: H.264 (BP@level4.0, MP, HP@level4.0), MVC and VP8 Decode: MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, VP8, MVC, HEVC/H.265 decoder, 4k@60FPS

Ethernet


Chipset TI DP83867
Speed 1 10/100/1000 Mbps

RTC

Yes

WatchDog Timer

Yes

Expansion


SD socket 1 x Micro SD slot
M.2 1 x M.2 2230 Key.E
mini PCIe 1 x Full size mini PCIe slot (USB signal only)
SIM 1 x SIM slot

I/O


SATA -
SATA Power -
USB 5 x USB Type A, 1 x USB OTG
Audio 1 x line-out, 1 x mic-in
SPDIF -
Serial Port
  • 1 x 4-wire RS-232/485
  • 1 x 2-wire RS-232/Debug port, pin header selected by jumper
  • 4 x 4-wire RS-232
SPI 1 x SPI by pin header
CAN -
GPIO 8 x GPIO via D-SUB 9 (3.3V TTL level)
I2 C 1 x I2 C by pin header
System Bus -
Touch -
I/R -
LED 1 x Power LED, 1 x 4G LED
Button 1 x Power button, 1 x Reset button

Power


Power Supply Voltage 12V
Power Type DC-in
Power Consumption TBD

Environment


Operational Temperature 0 ~ 55 °C/-20 ~ 70 °C
Operating Humidity 5% ~ 95%

Mechanica


Dimensions (W x D) 190 x 150 x 43 mm
Operating System Android/Linux
Certifications CCC/CE/FCC Class B
