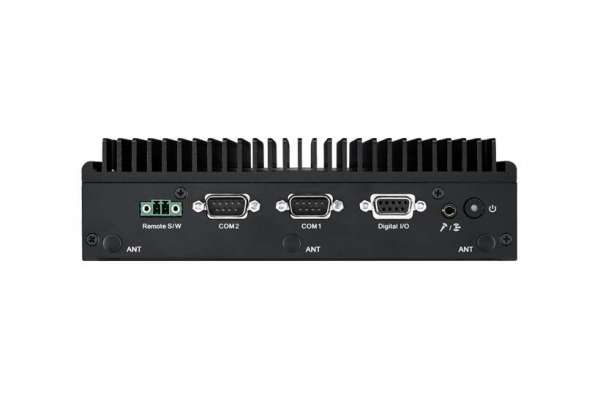

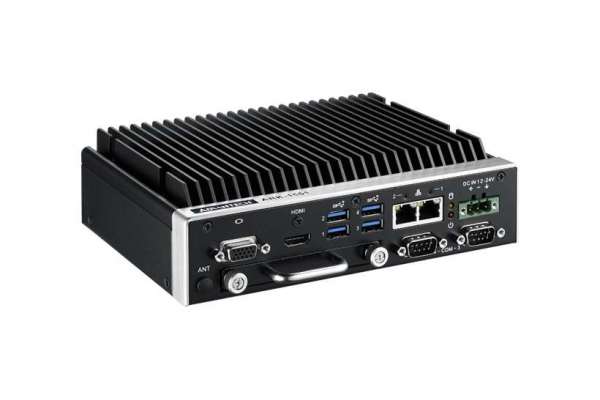

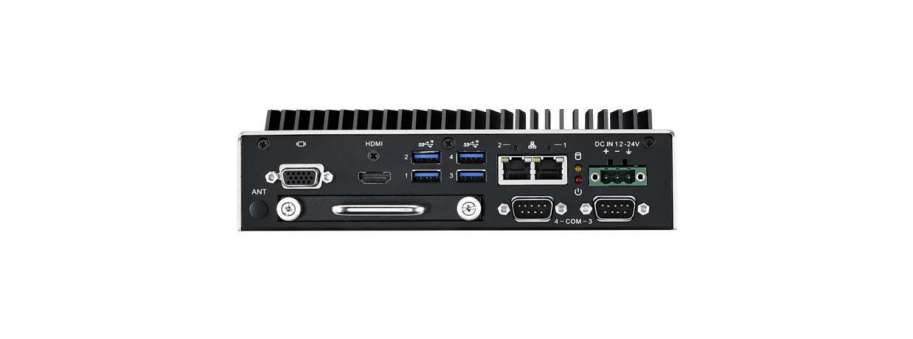

Slim Fanless Computer ARK-1551

Slim Fanless Computer ARK-1551 by Advantech Intel® 8th Generation Core™ i5/Celeron

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Intel® 8th Generation Core™ i5/Celeron Slim Fanless Computer

  • Gen 8th Intel® Core™ i5/Celeron
  • Dual DDR4 2400MHz SO-DIMM memory up to 32G
  • 1 x swappable 2.5" SATA HDD drive bay and 1 x mSATA slot, supports Intel software RAID 0/1
  • 4 x USB 3.1 Gen 2, 2 x Intel GbE LAN, 4 x RS-232/422/485, 8 bit GPIO
  • 4K2K HDMI and VGA dual independent displays
  • 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 E Key
  • Support Advantech SQF PCIex2 NVMe storage
  • 12V - 24V @ -10%/+20% wide range power input
  • Advantech DeviceOn built-in for easy manageability

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-1551-S6A1 Компактний промисловий комп'ютер Advantech ARK-1551, Intel i5-8365UE VGA+HDMI+TPM 12-24V A1  47 386,8
ARK-1551-U0A1 Компактний промисловий комп'ютер Advantech ARK-1551, Intel Celeron 4305UE VGA+HDMI 12-24V A1  24 802,7

Additional information

Part Number

ARK-1551-S6A1 ARK-1551-U0A1

Processor



CPU

Intel® Core™ i5-8365UE

Celeron 4305UE

Frequency

1.6 GHz, turbo burst up to 4.1 GHz

2.0 GHz

Core Number

4 2

BIOS

AMI EFI 256 Mbit

AMI EFI 256 Mbit

Memory



Technology

DDR4 2400MHz SO-DIMM

DDR4 2400MHz SO-DIMM

Max. Capacity

32 GB

32 GB

Socket

2 x 260 pin SO-DIMM

2 x 260 pin SO-DIMM

Graphics



Chipset

Intel UHD Graphics 620

Intel HD Graphics 610

Graphic Engine

Gen9 Low Power; 24 (UHD 620) /12(UHD 610) Execution Units. Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC. 3D HW Acceleration: OpenGL 4.5, DirectX* 11.3/12, OpenCL* 2.1

Gen9 Low Power; 24 (UHD 620) /12(UHD 610) Execution Units. Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC. 3D HW Acceleration: OpenGL 4.5, DirectX* 11.3/12, OpenCL* 2.1

HDMI

1 x HDMI 1.4b, 4096 x 2160@30Hz

1 x HDMI 1.4b, 4096 x 2160@30Hz

Dual Display

Yes, VGA + HDMI

Yes, VGA + HDMI

Ethernet



LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel i219GbE, support Wake On LAN

10/100/1000 Mbps Intel i219GbE, support Wake On LAN

Audio



Interface

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

I/O



Serial port

4 x RS-232/422/485 support from 50 bps to 921.6 kbps, with auto flow control. COM3 with 5V/12V power, by jumper setting

4 x RS-232/422/485 support from 50 bps to 921.6 kbps, with auto flow control. COM3 with 5V/12V power, by jumper setting

USB

4 x USB 3.1 Gen2, Type A connector

4 x USB 3.1 Gen2, Type A connector

GPIO

8-bit Programmable DIO

8-bit Programmable DIO

Expansion



Mini PCIe

1 x full-size mPCIe with 1x nano SIM holder (PCIe x2, USB 2.0x1, UIM, SATA x1)

1 x full-size mPCIe with 1x nano SIM holder (PCIe x2, USB 2.0x1, UIM, SATA x1)

M.2

1 x M.2 2230 E key for WIFI module

1 x M.2 2230 E key for WIFI module

Storage



2.5" HDD/SSD

1 x Swappable 2.5" SATAIII drive bay (compatible with 7mm height)

1 x Swappable 2.5" SATAIII drive bay (compatible with 7mm height)

mSATA

1 x Full-size mSATA (*share with mPCIe slot)

1 x Full-size mSATA (*share with mPCIe slot)

PCIe

Support 2x Advantech SQF PCIex2 NVMe storage (1 x M.2 2230 E Key + 1 x mPCIe)

Support 2x Advantech SQF PCIex2 NVMe storage (1 x M.2 2230 E Key + 1 x mPCIe)

Others



Watchdog timer

255 levels timer interval, setup by software

255 levels timer interval, setup by software

TPM

Infineon SLB9665XQ 2.0

Infineon SLB9665XQ 2.0

Case Open

Support

Support

Software Support



Microsoft Windows

Windows 10 Enterprice

Windows 10 Enterprice

Linux

Support by project

Support by project

Power



Power Type

AT/ATX

AT/ATX

Input Voltage

12 ~ 24 VDC @ -10%/+20%

12 ~ 24 VDC @ -10%/+20%

Power Adaptor

AC to DC, 90W for 0 ~ 40 °C/ AC to DC, 120W for condition -20 ~ 55 °C (Optional)

AC to DC, 90W (Optional)

Power Consumption

Typical 13.87 W, Max 47.12W

Typical 8.93W, Max 24.7W

Mechanical



Construction

Aluminum housing

Aluminum housing

Mounting

Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional)

Wall Mounting (Default); VESA & DIN-Rail Mounting (Optional)

Dimensions

195 x 55 x 140 mm (7.68" x 2.16" x 5.52")

195 x 55 x 140 mm (7.68" x 2.16" x 5.52")

Weight

1.2 kg (2.65lb)

1.2 kg (2.65lb)

Environment



Operating Temperature

With extended temp. peripherals: -20 ~ 55 °C (-4 ~ 131 °F) with 0.7 m/s air flow. With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow

With extended temp. peripherals: -20 ~ 55 °C (-4 ~ 131 °F) with 0.7 m/s air flow. With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification



EMC

CE/FCC Class B, CCC, BSMI

CE/FCC Class B, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI

UL, CB, CCC, BSMI
