Panel PC PPC-3211SW

21.5" Fanless Panel PC Advantech PPC-3211SW with Intel® Core™ i5-6300U Processor IP65-rated

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

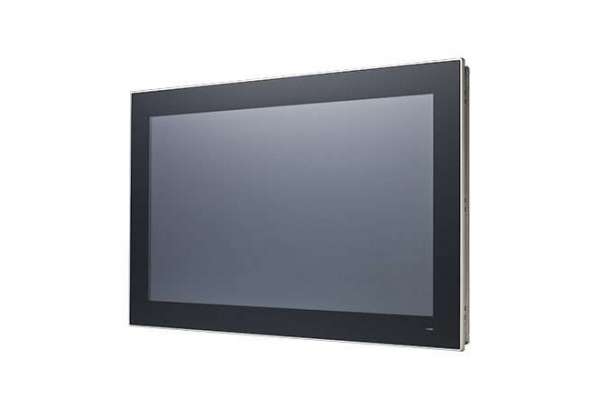

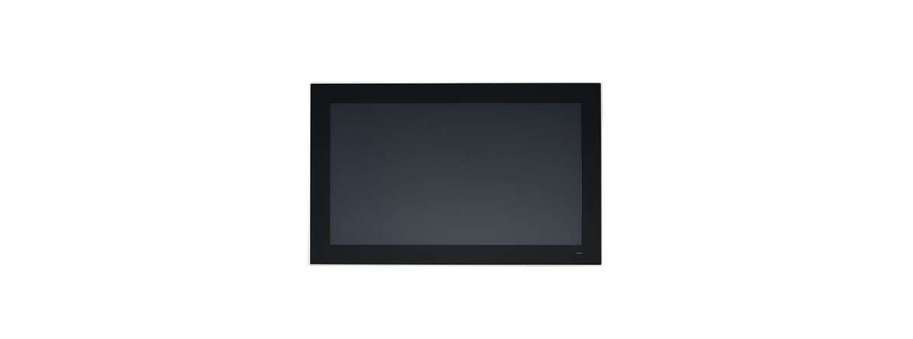

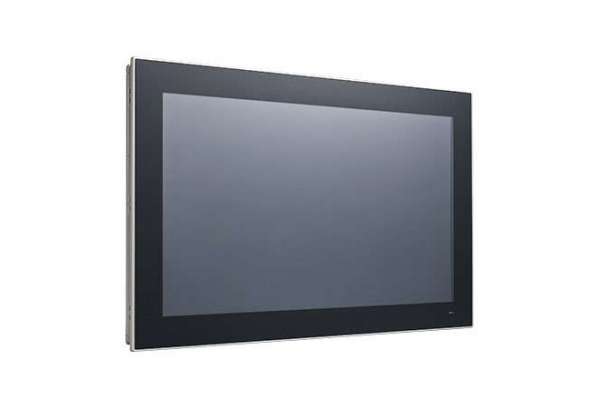

The PPC-3211SW is an all-in-one light panel PC with a wide format 21.5" industrial-grade LCD. Powered by 6th generation Intel® Core™ i processor, PPC-3211SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3211SW features a true-flat touchscreen with IP65-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.

  • Industrial-grade 21.5" LCD panel with 50k backlight lifetime
  • True-flat touchscreen with multi-touch projected capacitive control
  • High-performance, fanless 6th generation Intel® Core™ i processor
  • Up to 16 GB DDR4 SDRAM

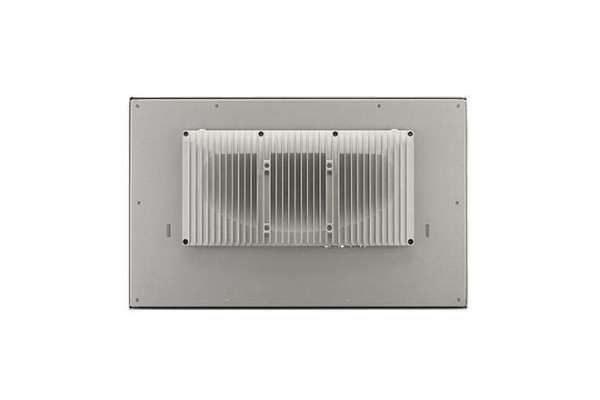

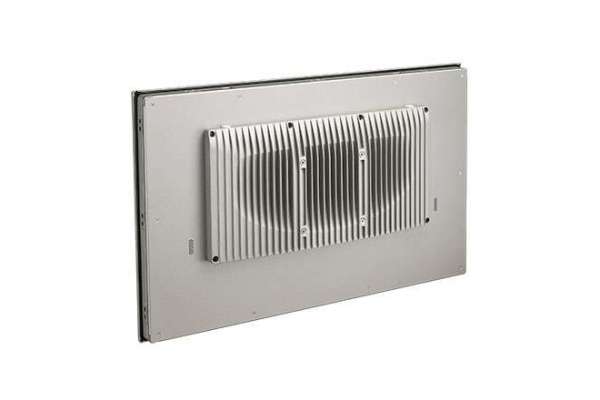

  • Compact, fanless design with aluminum alloy enclosure
  • IP65-rated front panel
  • Supports dual displays (1 x external HDMI)
  • Supports full-size mini PCIe expansion
  • Supports USB 3.0
  • Supports VESA 100

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-3211SW-P65A Промисловий панельний комп'ютер Advantech PPC-3211SW Intel Core i5-6300U Fanless 21.5" Panel PC  70 665,8
PPC-3211SW-P63A Панельний комп'ютер Avantech Intel Core i3-6100U Fanless 21.5" Panel PC  57 046,8

Additional information

Part Number PPC-3211SW-P65A PPC-3211SW-MART PPC-3211SW-P63A

Processor System


CPU 6th gen Intel® Core™ i5-6300U dual core (i7-6500U/i3-6100U optional) 6th gen Intel® Core™ i5-6300U dual core (i7-6500U/i3-6100U optional) 6th gen Intel® Core™ i5-6300U dual core (i7-6500U/i3-6100U optional)
Frequency 2.4 GHz; 3.0 GHz with turbo boost 2.4 GHz, turbo boost up to 3.0 GHz 2.4 GHz, turbo boost up to 3.0 GHz
2nd Cache Memory 3 MB 3 MB 3 MB
Memory 1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V) 8GB SO-DIMM 2400MHz DDR4 1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)
Storage 1 x 2.5" SATA Bay, 1 x mSATA Bay 2.5" SSD 128GB 1 x 2.5" SATA Bay, 1 x mSATA Bay
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM) 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM) 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM)

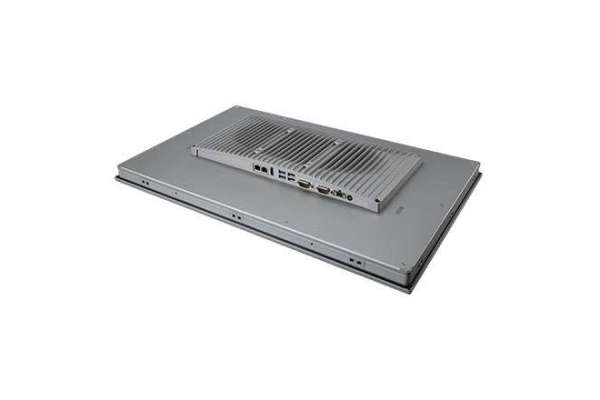

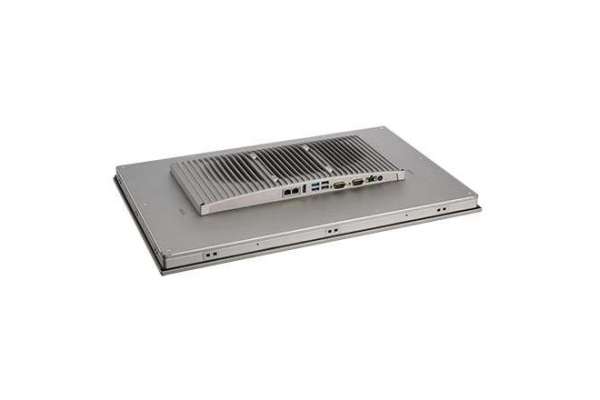

I/O Ports 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
1 x TPM 2.0 internal (optional)
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
1 x TPM 2.0 internal (optional)
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
1 x TPM 2.0 internal (optional)
Expansion Slots 1 x Full size Mini PCIe slot 1 x Full size Mini PCIe slot 1 x Full size Mini PCIe slot
Watchdog Timer 255 timer levels; setup by software 255 timer levels; setup by software 255 timer levels; setup by software
Weight 6.8 kg (14.9 lb) 6.8 kg (14.9 lb) 6.8 kg (14.9 lb)

Physical Characteristics


Dimensions
558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)
558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)

558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)

OS Support


OS Support Microsoft® Windows 7(32/64-bit)/10(64-bit), WES7P, Windows 10 IOT LTSC, Linux WIN 10 IOT LTSC Value Microsoft® Windows 7(32/64-bit)/10(64-bit), WES7P, Windows 10 IOT LTSC, Linux

Power Supply


Input Voltage 12-24 VDC 12-24 VDC 12-24 VDC
Power Consumption 75W 75W 75W

LCD Display


Display Type 21.5" TFT LCD (LED Backlight) 21.5" TFT LCD (LED Backlight) 21.5" TFT LCD (LED Backlight)
Viewing Angle (H/V°) 89 (left), 89 (right), 89 (up), 89 (down)

89 (left), 89 (right), 89 (up), 89 (down)

89 (left), 89 (right), 89 (up), 89 (down)
Max. Resolution 1920 x 1080 1920 x 1080 1920 x 1080
Luminance (cd/m2) 300 300 300
Contrast Ratio 5000:1 5000:1 5000:1
Backlight Life (hrs) 50, 000 hrs 50, 000 hrs 50, 000 hrs

Touchscreen


Touch Type 10-point multi-touch projected capacitive 10-point multi-touch projected capacitive 10-point multi-touch projected capacitive
Light Transmission 90% ± 3% 90% ± 3% 90% ± 3%
Controller USB interface USB interface USB interface

Environment


Operating Temperature 0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD 0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD 0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD
Storage Temperature -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F)
Relative Humidity 10 ~ 95% @ 40° C (non-condensing) 10 ~ 95% @ 40° C (non-condensing) 10 ~ 95% @ 40° C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
Vibration Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI CE, FCC Class B, BSMI CE, FCC Class B, BSMI
Safety CB, CCC, BSMI, UL CB, CCC, BSMI, UL CB, CCC, BSMI, UL
Front Panel Protection IP65 Compliant IP65 Compliant IP65 Compliant
