2xCOM 2xLAN DVI Input 24V DC Intel Core i7 LAN MIL-STD-810 Military T range Passive Cooling RS232 RS485

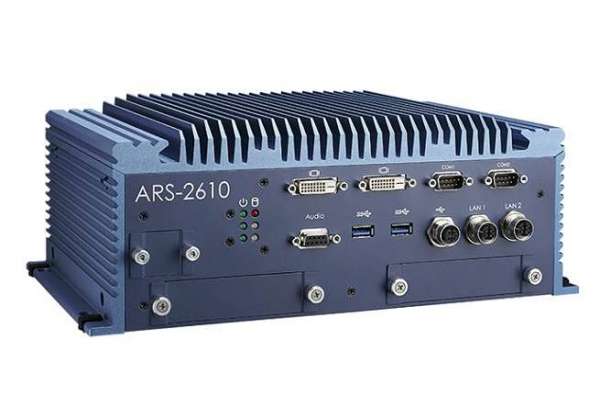

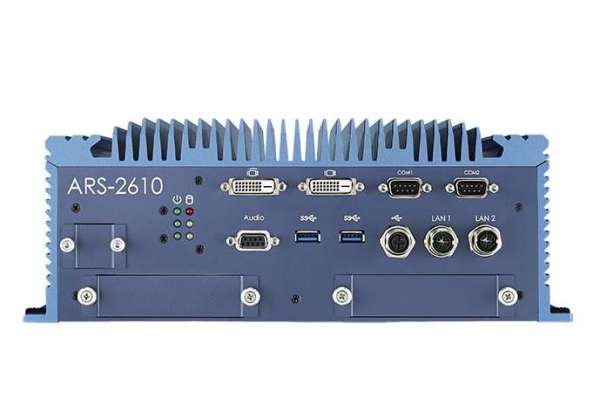

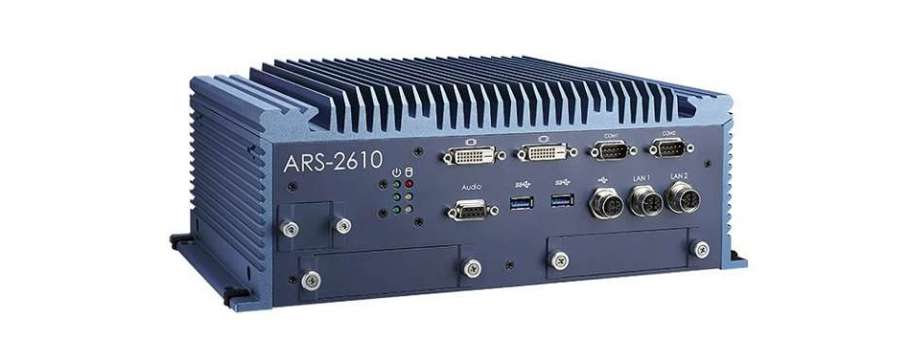

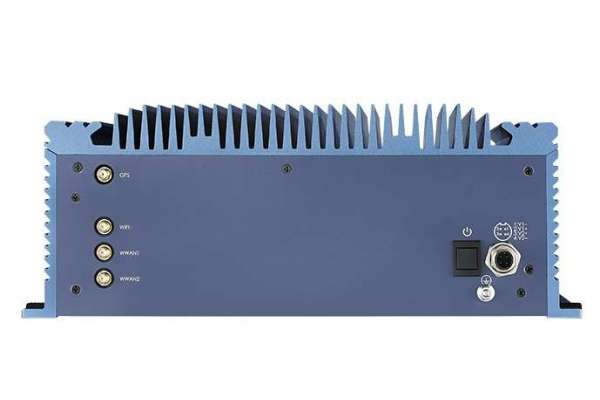

EN50155 Intel® i7-6600U/i7-7600U Fanless Railway Box PC with 2 x GbE LAN , 2 x USB and 2 x COM ports Advantech ARS-2610

Price and avalability

Partnumber Description Price VAT incl Avalability
ARS-2610-10A1E ARS-2610, Intel i7-6600U, DC 24V  268 090,0
ARS-2610-20A1E ARS-2610, Intel i7-6600U, DC 48V  252 320,0
ARS-2610-40A1E EN50155 Встраиваемый компьютер Advantech ARS-2610, Intel i7-6600U, DC 110V  253 515,0

Actual replacement of item ARS-2510

The ARS-2610, a fanless embedded train controller, is certified to EN 50155 standard. With a TX-level operating temperature design, the device endures harsh railway environments from -40°C ~ 85°C*. Furthermore, the railway-specific power design allows multiple voltage inputs: 24V/48V/72V/110V. Featuring with 2 x GbE LAN, 2 x USB and 2 x COM ports, the ARS-2610 can provide uninterrupted data transmission, fulfilling media and entertainment system application. The features of ARS-2610 can be expanded with its two expansion slots, allowing two isolated modules, such as a COM and a 2.5” SSD SATA drive, and custom modules for best-fit solutions.

  • Intel® 6th Generation i7-6600U/i7-7600U processor
  • SO-DIMM DDR4 1600MHz/1866Mhz, Up to 16GB
  • Dual independent displays: DVI-D and DVI-D ports
  • 2 x GbE LAN , 2 x USB and 2 x COM ports
  • 2 x MiniPCIe and 1 x mSATA for expansion
  • Supports GPS ,Wi-Fi, 2 x LTE (Optional)
  • Supports 2 x 2.5” SSD expansions and RAID 0/1 (Optional)
  • EN 50155 Power input range: 24V/48V/72V/110V (±40%)
  • EN 50155 TX temperature level: -40° C ~ 70° C (85° C for 10 Minutes)
  • IP50+ and conformal coating protections
  • EN 50155, IEC 60571 certified
  • EN 45545, JIS E 5006 compliant
