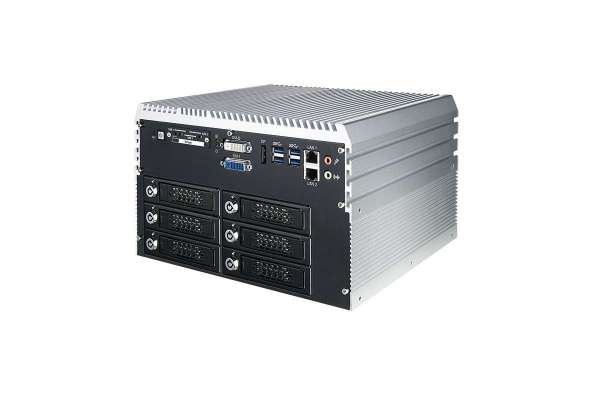

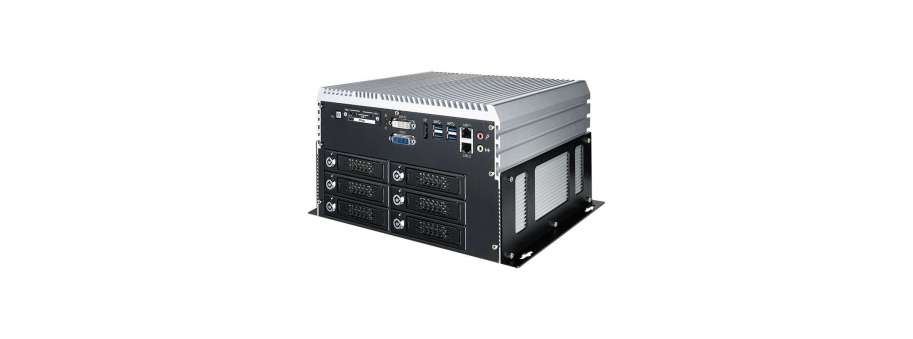

Workstation-grade Intel® Xeon® /Core™ i7/i5/i3 Processor Vecow EN50155 & EN45545 In-Vehicle Fanless System IVH-9204MX ICY

Price and avalability

Partnumber Description Price VAT incl Avalability
IVH-9204MX-ICYU Промисловий компактний комп'ютер Vecow IVH-9204MX ICY Series, 6 GigE LAN w/4 X-coded M12 PoE+, 6 SSD Tray, 8 USB 3.0, 4 COM, 3 SIM, 32 Isolated DIO, 16-160V DC-IN, UPS  131 143,0
IVH-9204MX-ICY Промисловий компактний комп'ютер Vecow IVH-9204MX ICY Series, 6 GigE LAN w/4 X-coded M12 PoE+, 6 SSD Tray, 8 USB 3.0, 4 COM, 3 SIM, 32 Isolated DIO, 16-160V DC-IN  117 713,0

Powered by workstation-grade 6th/7th Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S) engine, fanless -40°C to 55°C operating temperature, all-in-one integrated features, excellent system performance, 6 front-access 2.5" SSD trays support up to 24TB and RAID 0, 1, 5, 10 data protection, 6 independent GigE LAN with 4 X-coded M12 IEEE 802.3at PoE+, 3 external SIM sockets for outstanding mobile availability, variety of expansion features, smart manageability, 16V to 160V power input with 500V surge protection, ignition power control, intelligent circuit protection and rugged reliability, Vecow IVH-9204MX ICY Series In-Vehicle Fanless System is your performance-driven solution for Advanced Driver Assistance System (ADAS), In-vehicle Surveillance, Mobile In-vehicle Communication, Passenger Information System (PIS), Pantograph Inspection and any AIoT/Industry 4.0 applications.

  • LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake/Skylake) with Intel® C236 Chipset

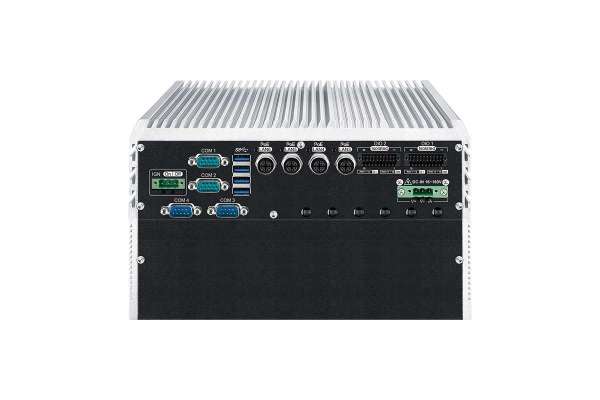

  • 6 Independent GigE LAN with 4 X-coded M12 IEEE 802.3at PoE+
  • 16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection

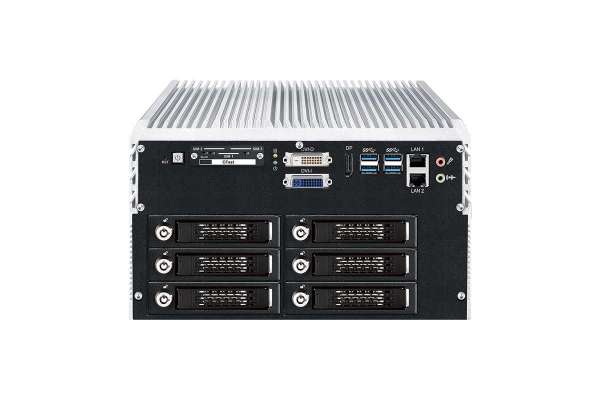

  • 6 front-access 7mm to 15mm height SSD/HDD Tray, up to 24TB
  • 2 DDR4 2400MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
  • Fanless design for railway in-vehicle applications, fully compliant with EN50155
  • -40°C to 55°C Extended Operating Temperature
  • 32 Isolated DIO, 8 USB 3.0, 4 COM, 2 Mini PCIe, 6 SATA
  • Triple independent displays : DVI-I, DVI-D and DisplayPort, up to 4K resolution
  • Configurable Ignition Power Control, UPS supported
  • 3 External SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
  • EN50155, EN50121-3-2 and EN45545-2 compliant

Additional information

System

Processor Quad Core Intel® Xeon® /Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
OS Windows 10, Windows 8.1, Windows 7, Linux

I/O Interface

Serial 4 COM RS-232/422/485 (ESD 8KV)
USB
  • 8 USB 3.0 (External)
  • 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless, PoE
SIM Card 3 External SIM Card Socket

Expansion

Mini PCIe 3 Full-size Mini PCIe sockets for PCIe/USB/External SIM Card/ mSATA

Graphics

Graphics Processor Intel® HD Graphics 630/530
Interface

Triple independent displays :

  • 1 DVI-I : Up to 1920 x 1200 @60Hz
  • 1 DVI-D : Up to 1920 x 1200 @60Hz
  • 1 DisplayPort : Up to 4096 x 2304 @60Hz

Storage

SATA 6 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
  • 1 CFast Socket, Push-in/Push-out Ejector
  • 6 Front-access 2.5" SSD/HDD Tray (15mm in height)

Audio

Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface Audio Interface

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN

PoE (X-coded M12)

LAN 3 to LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control

Power

Power Input 16V to 160V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Isolation 4kV DC
Surge Protection 0.5kV DC 8/20us Surge
UPS (UPM-100) Optional supports 3 stackable 18650 LFP batteries (1.1mA/h)

Others

TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Mechanical

Dimensions 260.0mm x 215.0mm x 155.0mm (10.24" x 8.46" x 6.10")
Weight 10 kg (22.04 lb)
Mounting Wallmount by mounting bracket

Environment

Operating Temp

IVH-9204MX ICYU/IVH-9204MX ICY4U :

0°C to 40°C (32°F to 104°F) IVH-9204MX ICY/IVH-9204MX ICY4 :

35W TDP CPU : -40°C to 55°C (-40°F to 131°F) 65W/80W TDP CPU : -40°C to 45°C (-40°F to 113°F)

Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 55°C
Shock IEC 61373
Vibration IEC 61373
Certification CE, FCC, EN50155:2017, EN50121-3-2, EN45545-2
