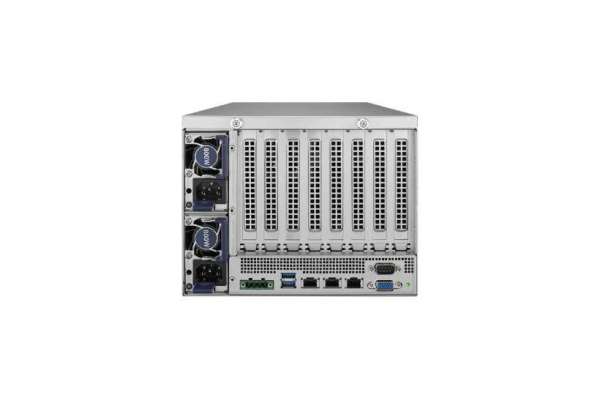

Compact Size Mid Tower GPU Server AMD® EPYC™ 8004 Series Processor Advantech SKY-602E3
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| SKY-602E3-S12A1 | Башточний Advantech GPU сервер з процесором EPYC8004, конфігурація 1+0, блок живлення 1.2KW | 178 653,0 | |
| SKY-602E3-S20A1 | Башточний Advantech GPU сервер з процесором EPYC8004, конфігурація 1+0, блок живлення 2KW | 202 243,0 |
- Processor: Single AMD® EPYC™ Embedded 8004 Series Server Processor
- Memory: 6 x DDR5-4800 MHz ECC RDIMM, up to 576GB
- Remote Management: IPMI function support
- Expansion: Supports 4 x PCIe x16 double-deck FH/10.5" cards or 2 x PCIe x16 double deck FH/10.5" cards + 4 x PCIe x8 single deck FH/10.5" cards
- PSU: 1200 Watt 1+0 power supply with 80+ platinum level certification
Additional information
Processor System |
|
| CPU Technology | AMD LGA4844 with Zen4c support, up to 64 cores / 128 threads |
| CPU Type | Single Socket AMD® EPYC™ Embedded 8004 Series server processor, TDP max 225 W |
| Memory Type | 6 x DDR5-4800MHz ECC RDIMM, up to 96GB per DIMM |
Graphics |
|
| Controller | Aspeed AST2600 |
| VRAM | 64 MB |
Expansion Slots |
|
| Slot 1 | PCIe x16 slot (PCIe x8 link share from slot 2) |
| Slot 2 | PCIe x16 slot (PCIe x16 link) |
| Slot 3 | - |
| Slot 4 | PCIe x16 slot (PCIe x16 link) |
| Slot 5 | - |
| Slot 6 | PCIe x16 slot (PCIe x16 link) |
| Slot 7 | PCIe x16 slot (PCIe x8 link share from slot 8) |
| Slot 8 | PCIe x16 slot (PCIe x16 link) |
Drive Bay |
|
| 2.5" (Internal) | 2 |
| 3.5" (Front) | - |
| 3.5" (Internal) | - |
| M.2 (2280) | 2 |
Ethernet |
|
| Interface | 2 x 10GbE |
| Controller | Intel X710-AT2 (dual 10GbE port) |
| Front I/O Interface | |
| USB | - |
Rear I/O Interface |
|
| USB | 2 x USB3.2 Gen1 |
| Power Connector | 1 (Reserved power output for External storage node) |
| COM | 1 |
| Display | 1 x VGA |
| RJ-45 | 3 (1 x dedicated NIC for IPMI) |
Internal Connector |
|
| USB 2.0 Pin Header | 1 (single port) |
| COM | 2 (One reserved for side-band signal) |
| LPC | - |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable, 1~255 sec/min |
Power Supply |
|
| Power Output Wattage | 80+ platinum 1+0 power supply 1200 W @ 100-240 VAC |
| Input Range | AC 100 ~ 240 V |
Cooling |
|
| Chassis Fan | 4 x 80 x 38 mm high speed fans ( optional 1 x 120 x 25 mm fan) |
| Dust Filter | Yes |
Miscellaneous |
|
| LED Indicators | Power status, LAN status, information LED |
| Remote Management | Advantech Remote Monitoring Utility |
Environment |
|
| Temperature |
|
| Humidity |
|
| Vibration (5 ~ 500 Hz) |
|
| Shock |
|
Physical Characteristics |
|
| Dimensions (W x H x D) | 216 x 170 x 425 mm (8.5 x 6.69 x 16.73 in) |
| Package Dimensions (W x H x D) | 380 x 340 x 570 mm (14.96 x 13.39 x 22.44 in) |
| Weight (N.W. / G.W.) | 16 / 17.92 kg |
| Installation | Desktop / wall / rack mount |
