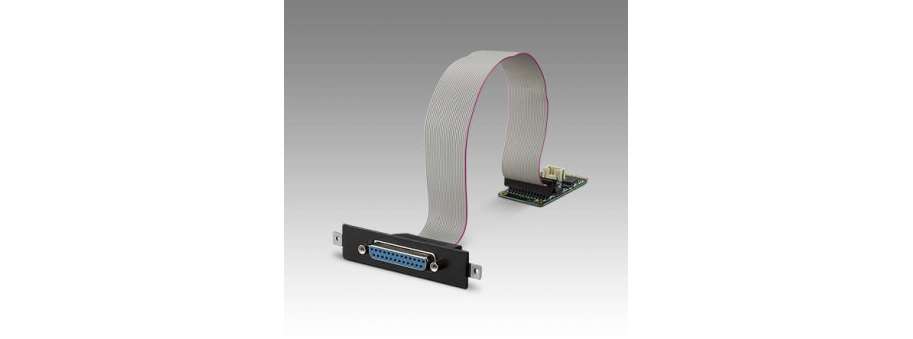

Parallel Printer Port iDoor Module Advantech MOS-2220-X1101E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-2220-X1101E Мережевий пристрій/Перетворювач інтерфейсів Parallel LPT module, 1-Ch, USB I/F,  2 596,7 Доступно
  • USB to 1x Parallel port module
  • Full size Mini PCIe & Module type combo
  • MiniPCIe thru USB & USB Pin Header
  • Support IEEE 1284-compliant ECP

Additional information

Technology Parallel type
Host site Interface Combo USB (Internal/ External) Interface
Parallel Connector 2.0 mm, 2x13-pins, Male type Wafer Box
Support Voltage and Current + 5.0 V, 100 mA
LED Status Module Ready: Red LED
OS Supported Windows 2000/ XP/ Vista/ 7/ 8 / 10, Linux by project support
Temperature Ranges
  • Operation: 0 to +70° C
  • Storage: -40 to +85° C
Dimensions (L x W x H) 50.59 x 30 x 10 mm
