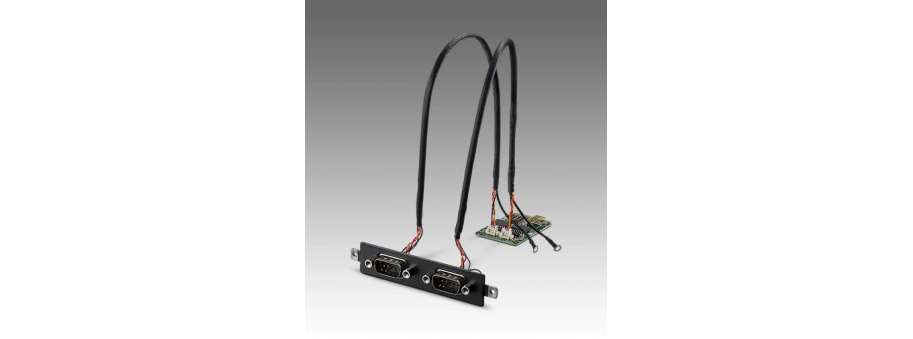

CANBus module, 2-Ch, USB I/F (-40 to +85° C) with cable and iDoor bracket Advantech MOS-2230-Z1201E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-2230-Z1201E Мережевий пристрій/Перетворювач інтерфейсів CANBus module, 2-Ch, USB I/F,  6 833,9
  • USB to 2x CANBus port module with isolated
  • Full size Mini PCIe & Module type combo
  • Combo USB (Internal/ External) Interface
  • Compliant with CAN 2.0A and CAN 2.0B identifiers, According to ISO 11898-1 and ISO 11898-2
  • Bit rates up to 1 Mbit/s

Additional information

Technology CANBus type
Host site Interface Combo USB (Internal/ External) Interface
Communication Baud Rate 10, 20, 50, 125, 250, 500, 800 and 1000 Kbps
Host site Connector
  • Internal USB port: Mini PCIe thru USB
  • External USB port: 2.0 mm, 2x5-pin, male header
CANBus Connector 1.25 mm, 3-pin, Male type Wafer Box
Support Voltage and Current + 5.0 V, 100 mA
LED Status

Power on/off LED: Green LED

CAN-1, CAN-2 Tx LED: Red LED

OS Supported Windows 2000/ XP/ Vista/ 7 (32 and 64-bits)
Temperature Ranges
  • Operation: -40 to +85° C
  • Storage: -40 to +85° C
Dimensions (L x W x H) 50.59 x 30 x 10 mm
