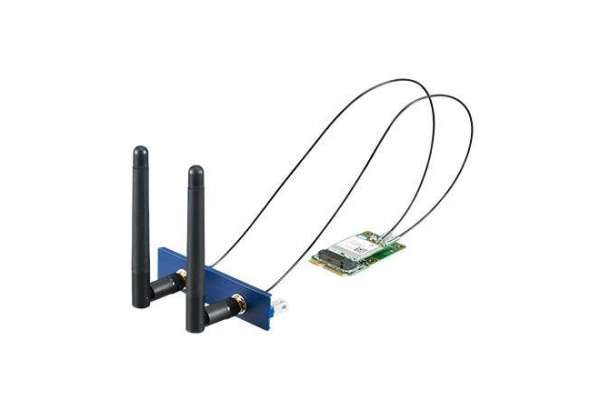

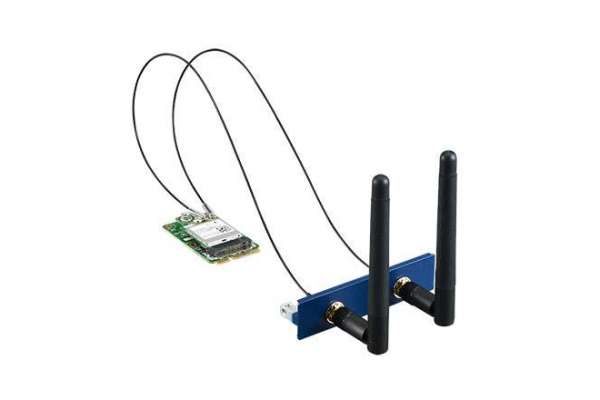

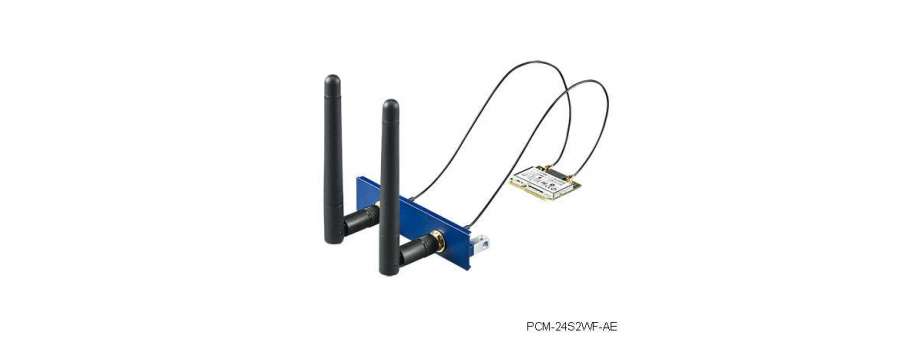

iDoor Module PCM-24S2WF

iDoor Module Advantech: WiFi/ Bluetooth 2-port SMA PCM-24S2WF

Networks and Communications >> Wireless Module Solutions

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The PCM-24 series are communication modules from Advantech iDoor Technology. They are all compatible with PCI Express® Mini Card Specification Revision 1.2, including isolated / non-isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange for management and machine level automation applications and PoE function for smart cameras in detection-inspection-production applications. This is a flexible design that enables customers to customize their features with iDoor Technology.

  • Meets Advantech iDoor technology standard
  • M.2 2230 (A-E Key) module with mPCIe adapter
  • IEEE 802.11 ac/a/b/g/n + Bluetooth 4.1
  • 2 SMA, 2Tx/ 2Rx ports
  • 64/128 bit WEP, 802.1x, TKIP and AES
  • Operating temperature: -20 ~ 65 °C (-4 ~ 149°F)
  • Support embedded automation PC UNO series & Panel PC TPC series product

Price and avalability

Partnumber Description Price VAT incl Avalability
PCM-24S2WF-BE CIRCUIT MODULE, 802.11 a/b/g/n/ac 2T2R w/BT4.1, Atheros QCA6174A  2 034,5

Additional information

General


Bus Type M.2 / mPCIe
Host Interface WiFi: PCI-E, BT: USB
Certification CE, FCC
Dimensions
  • M.2 module: 30 x 22 x 2.2mm (1.18" x 0.87"0.09")
  • Module with mPCIe adapter: 54.5 x 30 x 5.7mm (2.15" x 1.18" x 0.22")
  • I/O Plate: 81 x 19.4 x 41 mm (3.19" x 0.76" x 1.61")
Power Consumption 3.3V, 537mA (Avg.) (Wi-Fi continue, BT is off, BW 80MHz)
Antenna WiFi 2.4 GHz and 5 GHz dipole antenna
Cable WiFi Coaxial Cable, SMA (F) to MHF4, 300 mm

Communications


Data throughput  300 Mbps (Max.)
Security 64/128-bit WEP

Software


OS Support Microsoft® Windows® 7/8.X/10

Environment


Operating Temperature -20 ~ 65 °C (-4 ~ 149°F)
Storage Temperature -40 ~ 105°C (-40 ~ 221°F)
