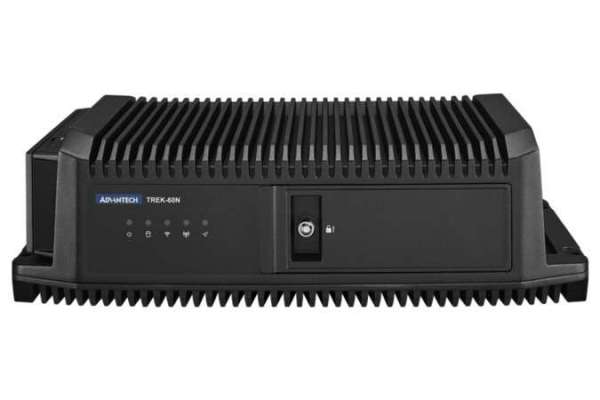

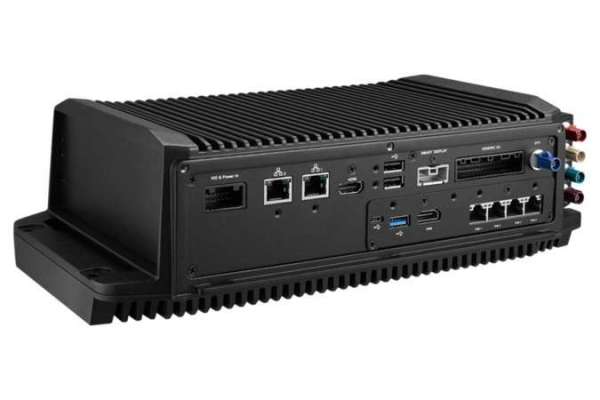

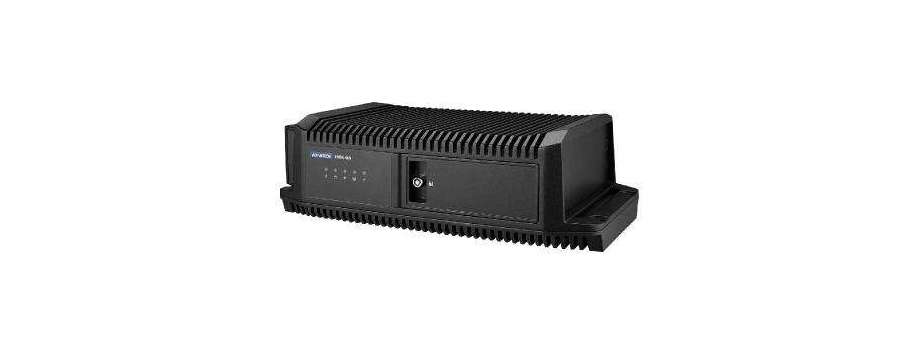

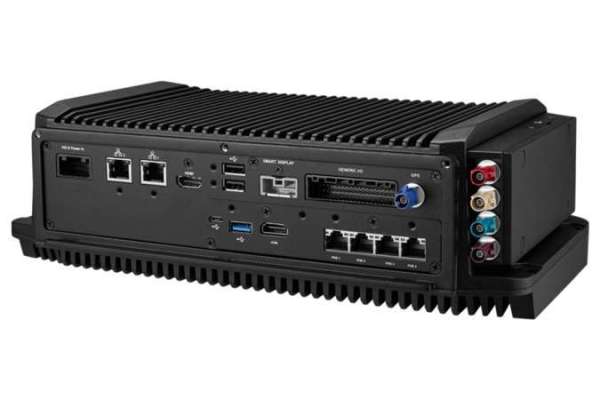

Dual-System Rugged Edge AI Platform for In-Vehicle & Harsh Environments Advantech TREK-60N

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
TREK-60N-A1A0MN00E Промисловий Advantech ПК TREK-60N X5-E3940 8/64GB Orin 8G 128GB NVMe  428 384,0
TREK-60N-K3A0MA00E Промисловий Advantech ПК TREK-60N Core i7-1365URE 16GB Orin 8G Windows  625 609,0
TREK-60N-K3A0NA00E Промисловий Advantech ПК TREK-60N Core i7-1365URE 16GB Orin 8G Linux  606 186,0
  • Intel® & NVIDIA® dual-system to provide excellent vehicle edge AI computing performance
  • 4ch PoE support video streams for AI capacity
  • In-vehicle specialized design: 12/24V certified car power (E-Mark, ISO-7637-2), dual CANbus
  • Rugged platform with IP65, 5M3 shock and vibration tolerance, -20 ~ 60°C wide temperature w/o airflow
  • Modular design supports the latest RF communication technologies
  • ONE cable connection with TREK displays

Aimed at AI for harsh environments, TREK-60N features a dual system integrating Intel® Core™ i7/Atom™ E3940 quad-core processor for high-performance computing, and NVIDIA® Jetson Orin™ NX AI capabilities up to 4x POE camera input channels for AI graphic computing. The RF extension module with automotive-grade FAKRA connector provides GNSS, WLAN, Bluetooth, and WWAN capabilities for real-time communication, vehicle tracking, and data collection. Moreover, inheriting the TREK products’ excellent rugged design, it supports a wide operating temperature range, and is compliant with MIL-STD-810G and 5M3 specifications. for vibration/shock resistance, ensuring stable operation in harsh industrial environments. TREK-60N is also equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform

Additional information

Core
Processor Intel® Atom™ X5-E3940 quad-core, 1.8 GHz Intel® Core™ i7-1365URE multi-core, 4.9 GHz
Memory 1 x SODIMM, up to 8 GB DDR3L 1866 non-ECC memory 2 x SODIMM, up to 64GB DDR5
Graphics Integrated 2D/3D graphics engine Integrated 2D/3D graphics engine
Operating System Windows 10 IoT Enterprise 2019 LTSC (64 bit), Linux (available upon request) Windows 11 IoT LTSC (64 bit), Ubuntu 24.04 LTS

Storage
mSATA (OS Disc) 1 x internal mSATA, up to 128 GB (supports UMLC/MLC/TLC industrial-grade storage and system bootup) Default: 1x M.2 M-key 2242 NVMe, up to 512 GB
SSD 1 x externally accessible 2.5" SSD tray with key-lock protection 1 x externally accessible 2.5" SSD tray with key-lock protection
Micro SD Card (upon request) 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup) 1 x externally accessible micro SD card reader with key-lock protection (supports system bootup)

Display
Smart Display Port 2.0*
  • 12V/2A power output for TREK displays
  • 1 x high-resolution video, 1 x audio signal, 1 x USB 2.0
  • 1 x power button and 1 x reset button (via the smart display) (the SDP settings are configurable via MRM SDK)
  • 12V/2A power output for TREK displays
  • 1 x high-resolution video, 1 x audio signal, 1 x USB 2.0
  • 1 x power button and 1 x reset button (via the smart display) (the SDP settings are configurable via MRM SDK)
HDMI 1 x HDMI 1.3 1 x HDMI 2.0

Sensors

 1 x G-sensor and gyroscope 1 x G-sensor and gyroscope

I/O
VIO2.0 (via VIO cable)
  • 1 x ignition and power input
  • 1 x J1708 (supports J1587)
  • 2 x CAN bus (CANFD compliant by Core i 13th version); compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s; configurable via SDK
  • 1 x ignition and power input
  • 1 x J1708 (supports J1587)
  • 2 x CAN bus (CANFD compliant by Core i 13th version); compliant with J1939, OBD-II/ISO-15765 specifications; supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers; high-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s; configurable via SDK
Generic I/O 2.0 (via generic I/O cable)
  • 2 x 4-wire RS-232 (default)/RS-485
  • 2 x 2-wire RS-232
  • 6 x isolated DI (dry/wet), 4 x isolated DO
  • 2 x line-out, 2 x mic-in
  • 2 x 4-wire RS-232 (default)/RS-485
  • 2 x 2-wire RS-232
  • 6 x isolated DI (dry/wet), 4 x isolated DO
  • 2 x line-out, 2 x mic-in

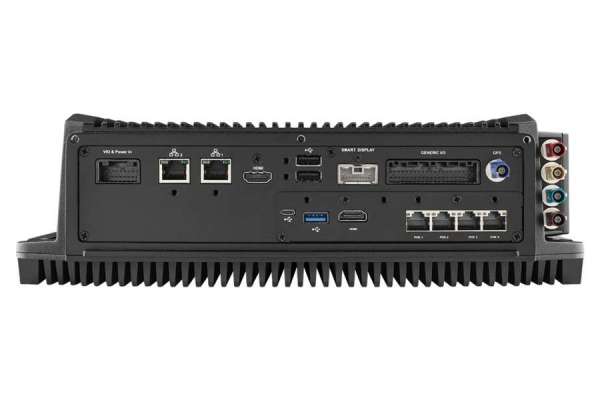

Standard I/O
  • 1 x USB 3.0 Type A (front accessible with key-lock protection)
  • 2 x USB 2.0 Type A
  • 2 x Giga LAN (with optional locking mechanism, or M12 connector)
  • 1x USB 2.0 Type A (Front)
  • 2x USB 3.2 Type A (Rear)
  • 2x Giga LAN (with optional locking mechanism, or M12 connector)
LED Indicators 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow) 5 x LED, Power (red), Storage (yellow), WLAN (green), WWAN (green), and GPS (yellow)
Power Button Via second-generation TREK display; system configured to wake-on-ignition as default Via second-generation TREK display; system configured to wake-on-ignition as default
CCMOS Button 1 x Clear CMOS button (front accessible with key-lock protection) 1 x Clear CMOS button (front accessible with key-lock protection)
Reset Button 1 x Reset button (front accessible with key-lock protection) 1 x Reset button (front accessible with key-lock protection)
PoE
  • 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliant
  • Power output shared by all cameras/devices is limited to 30W
  • Supports PoE power control and Ethernet management1 (via MRM SDK)
  • 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliant
  • Power output shared by all cameras/devices is limited to 30W
  • Supports PoE power control and Ethernet management1 (via MRM SDK)
Display HDMI (Max. resolution 3840 x 2160 @ 60Hz) HDMI (Max. resolution 3840 x 2160 @ 60Hz)
USB 1 x USB 3.0 Type A 1 x USB 3.0 Type A
OTG USB 1 x Micro USB 1 x Micro USB

Operating System (Via Orin NX)
Linux Ubuntu 22.04/ JetPack 6.2.1 Ubuntu 22.04/ JetPack 6.2.1

Processor (Via Orin NX)
CPU NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex® -A78AE NVIDIA® Jetson Orin™ NX 8GB : 6-core Arm® Cortex® -A78AE
GPU 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Memory NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5102.4GB/s
Storage 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage) 1 x internal M.2 NVMe 128G 3D TLC (industrial-grade storage)

Power Supply
Voltage Input 12/24 V Vehicle power (ISO 7637-2 and SAE J1113 compliant) 12/24 V Vehicle power (ISO 7637-2 and SAE J1113 compliant)
Intelligent Vehicle Power Management (iVPM 2.0)
  • System power on/off/hibernate management (programmable ignition on/off/delay)
  • PoE power total/on/off management (via MRM SDK)
  • Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensor
  • System power protection (vehicle battery low-voltage protection) System monitoring and diagnostics
  • System power on/off/hibernate management (programmable ignition on/off/delay)
  • PoE power total/on/off management (via MRM SDK)
  • Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensor
  • System power protection (vehicle battery low-voltage protection) System monitoring and diagnostics

Mechanical
Dimensions (W x D x H) 314 x 172.2 x 95.3 mm/12.36 x 12.36 x 3.75 in 314 x 172.2 x 95.3 mm/12.36 x 12.36 x 3.75 in
Weight 5.8 kg/12.79 lb (excludes SSD) 5.8 kg/12.79 lb (excludes SSD)

Environmental
IP Rating IP65 rating (excluding rear I/O); an optional IP65-rated M12 system I/O cover is available upon request IP65 rating (excluding rear I/O); an optional IP65-rated M12 system I/O cover is available upon request
Vibration/Shock MIL-STD-810G, EN60721-3(5M3) MIL-STD-810G, EN60721-3(5M3)
EMC CE, FCC, RCM, CCC CE, FCC, RCM, CCC
Safety UL/cUL, CB, CCC UL/cUL, CB, CCC
Vehicle Regulation E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113
RF Regulation CE (RED), FCC ID, IC ID CE (RED), FCC ID, IC ID
Operating Temperature
  • -20 ~ 60 °C/-4 ~ 140 °F (Atom™ X5-E3940) w/o airflow;
  • -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 55 °C/-4 ~ 131 °F available upon request)2.3 w/o airflow
  • -20 ~ 60 °C/-4 ~ 140 °F (Atom™ X5-E3940) w/o airflow;
  • -20 ~ 50 °C/-4 ~ 122 °F (Core™ i7/i5) (-20 ~ 55 °C/-4 ~ 131 °F available upon request)2.3 w/o airflow
Storage Temperature -40 ~ 80 °C/-40 ~ 176 °F -40 ~ 80 °C/-40 ~ 176 °F
