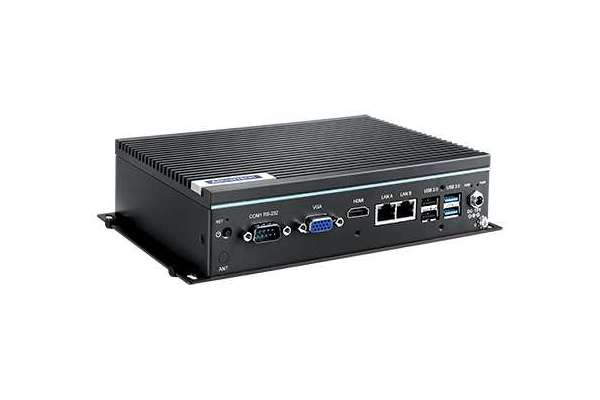

IoT Edge Gateway with 2 x GbE, 2 x USB3.0, 2 x USB2.0, 4 x RS232, 2 x RS485, 1 x HDMI, 1 x VGA Advantech UNO-247

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-247-J1N1AE Промисловий компактний комп`ютер Advantech UNO-247, J3455, w/ 2xLAN, 1xVGA, 1xHDMI, 6xCOM  28 532,7
UNO-247-J1N1AO Компактний промисловий комп'ютер Adavntech UNO-247-J1N1AE w/o audio function  32 983,6

Intel® Celeron J3455 processor Automation Computer, with 2x LAN, 4x COM, 4x USB, 1x HDMI, 1x VGA

  • Intel® Celeron® J3455 processor
  • Robust design with high stability

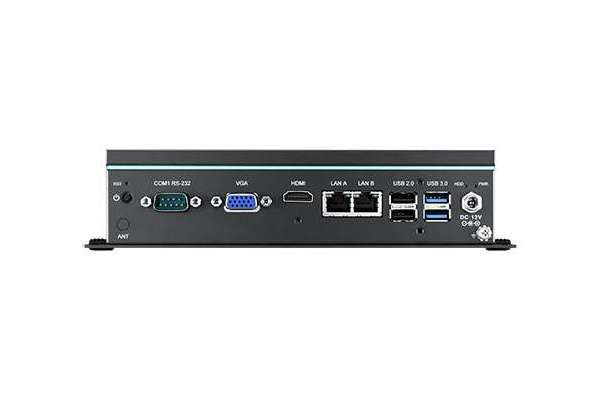

  • 2 x GbE, 2 x USB3.0, 2 x USB2.0, 4 x RS232, 2 x RS485, 1 x HDMI, 1 x VGA
  • Compact size with fanless design
  • Rubber stopper design for stand mount and optional kit for DIN-rail mount
  • Optional 3G/GPS/GPRS/Wi-Fi communication

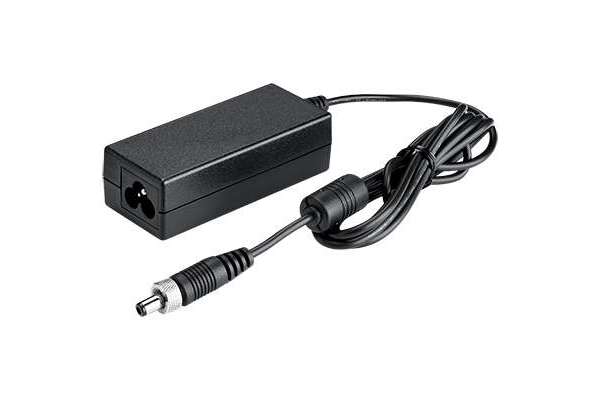

  • Threaded DC Jack design for more steady power supply
  • Optimized mechanical design for easier RAM swapping

Additional information

Part Number UNO-247-J1N1AE

General

Certifications BSMI, CCC, CE, FCC, UL
Dimension(W x D x H) 200 x 140 x 50 mm (7.8" x 5.5" x 1.9")
Form factor Regular Size
Enclosure Aluminum Housing
Mounting Stand Mount, DIN-Rail (Optional)
Weight (Net) 1 Kg (2.20 lbs)
Power Requirement 12VDC
Power Consumption 17W (Typical), 31W (Max)
OS Support Windows 10, Advantech Linux

System Hardware

BIOS AMI UEFI 64Mbit Flash BIOS
Watchdog Timer Programmable 255 levels timer interval, from 1 to 255 sec
Hardware Security N/A (TPM2.0 Optional)
Processor Intel® Celeron® J3455 1.5GHz
Memory 1 x slot (DDR3L SO-DIMM support up to 8GB)
Ethernet 10/100/1000 Mbps Realtek RTL8111G-CG
Graphics Engine Intel® HD Graphics
LED Indicators LEDs for Power and HDD
Expansion Slots 1 x Full size mPCIe slot (PCIe/ USB Signal), 1 x M.2 (2230, E Key), 1 x Micro SIM card slot
Storage 1 x mSATA slot ; 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

I/O Interface

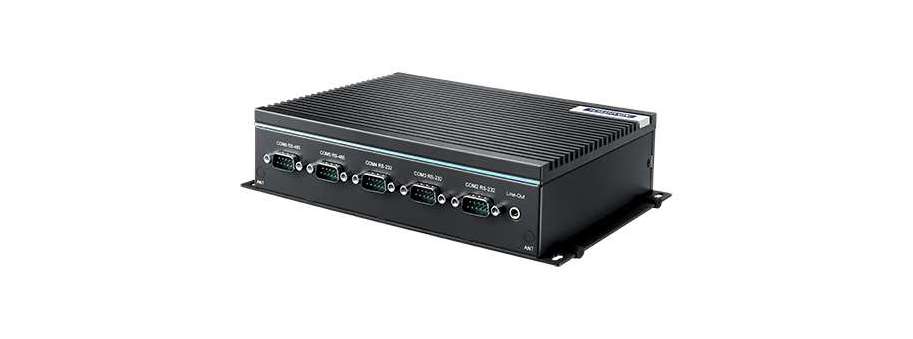

Serial Ports 4 x RS232/422/485, DB9, 50 ~ 115.2kbps
LAN Ports 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
USB 2 x USB 3.0, 2 x USB 2.0
Displays 1 x HDMI 1.4b (3840x2160@30Hz), 1 x VGA (1920x1080@60Hz)
Power Connector 1 x Lockable DC Jack

Environment

Operating Temperature 0~50°C with 0.7m/s air flow -20 ~ 60°C with 0.7m/s air flow (With extended temperature peripherals)
Storage Temperature -40 ~ 85°C ( -40 ~ 185°F)
Relative Humidity 10 ~ 95% @ 40°C non-condensing
Ingress Protection IP40
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
