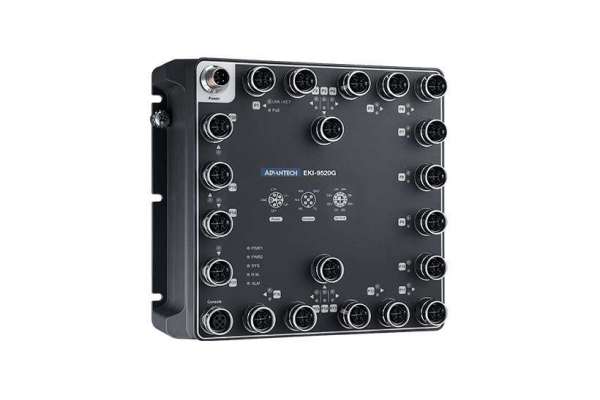

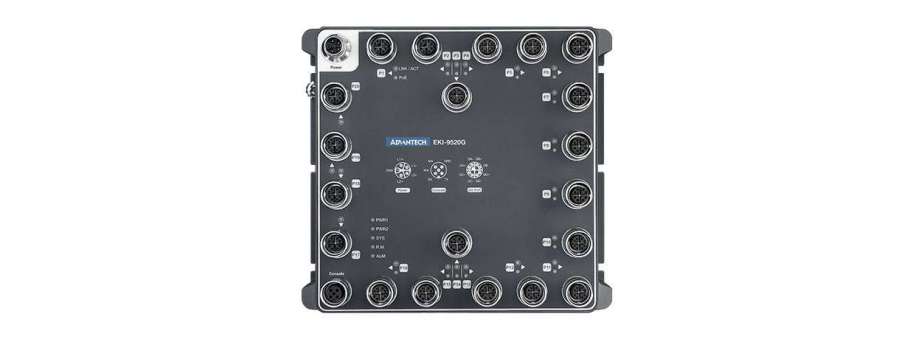

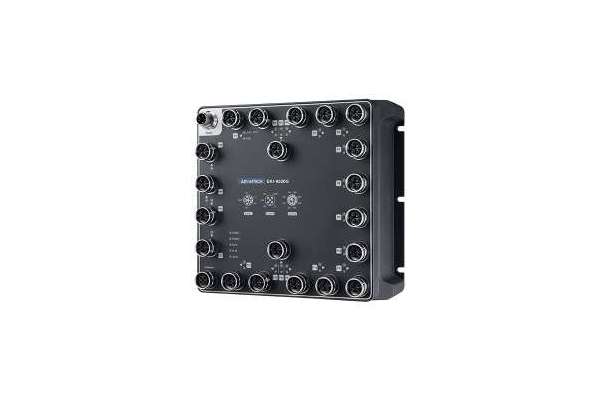

EN 50155 L2 M12 20GE Managed Switch w/PoE, 24~110 VDC Advantech EKI-9520G-MPW
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EKI-9520G-MPW-A | Залізничний Ethernet комутатор Advantech M12 з 16 портами Gigabit Ethernet PoE та 4 портами GE | 235 867,0 |
- EN50155 L2 & L3 models
- M12 connector with IP67 rugged housing
- Complies with EN50155 & EN50121-3-2
- Complies with EN45545-2 & EN61373
- Supports PoE IEEE802.3af/at(PoE model)
- Wide nominal power input range: 24~110VDC Operating power input range: 16.8~137.5VDC
- Operating temperature:-40 ~ 70°C
- Support IEC 61076-2-010 push-pull M12 connectors
Additional information
Interface |
|
| Ethernet Port* |
|
| Console port | M12 5pin A-coded (Management model only) |
| Power Connector | M12 5pin K-coded |
Physical |
|

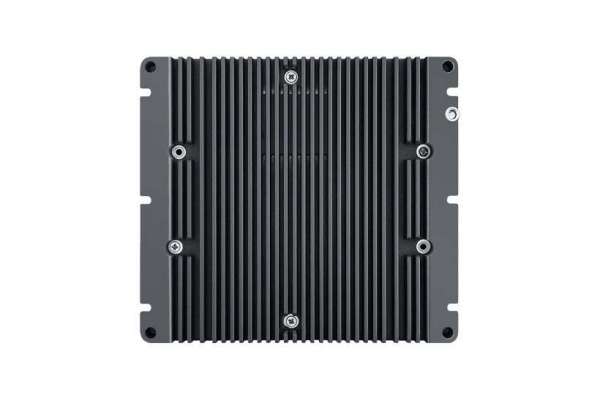

| Enclosure | Die-cast zinc front panel and extruded aluminum chassis |
| Protection Class | IP67 |
| Installation | Wall Mount |
| Dimensions | 178 x 160 x 67.2 mm (W x H x D) |
LED Display |
|
| System LEDs | PWR1, PWR2, SYS. Alarm & R.M |
| Port LED | Data, PoE |
Environment |
|
| Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ambient Relative Humidity | 5~ 95% (non-condensing) |
Power (PoE Model) |
|
| Power Consumption | 20W (w/o PoE) |
| Nominal Input voltage | 24/28/36/48/72/96/110VDC |
| Operating range | 16.8~137.5VDC |
| Over current protection | Yes |
| Reverse polarity protection | Yes |
| PoE Ports | 16 |
| PoE Power Budget |
|
Certification |
|
| Safety | EN62368-1 |
| EMC | CE, EN55011/ 55032/ 55035; FCC Part 15 Subpart B class A |
| EMS | EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS) |
| Shock | EN61373 |
| Vibration | EN61373 |
| Freefall | IEC60068-2-31 |
| Railway | EN50155, EN 50121-3-2 |
| Fire protection | EN45545-2, NFPA-130 |
| Cyber certificate* | IEC 62443-4-2 |
| Other | EN61000-6-4, EN61000-6-2 |
Switch Properties |
|
| DRAM | 128MB |
| Max. IGMP group | 256 |
| Max static VLANs | 256 |
| VLAN ID range | 1-4094 |
| MAC table | 16K |
| Jumbo frame | 12KB |
| Packet buffer | 12Mb |
| Max priority queues | 8 |
