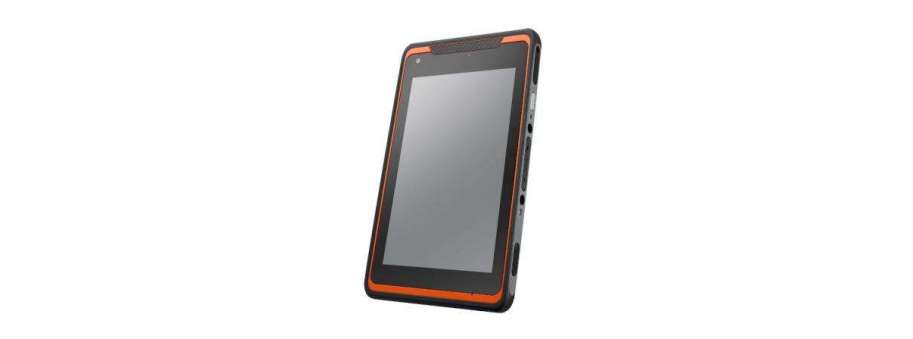

8" tablet Advantech AIM-35

8" Industrial-grade tablet and mobile POS system Advantech AIM-35 with Intel® Atom™

Industrial Computer >> Rugged laptops and tablets

 Price and avalability

Manufacturer: Advantech Co., Ltd.

AIM-35 is an industrial-grade handheld tablet POS system for multiple applications with Intel® Atom™ processor and multiple OS platform support for various software operation. To meet demands of retail and hospitality industry, AIM-35 provides 6-8 hours operation and support IP65-rated water and dust protection as robust tablet, but also enables various extension modules for the diversified application scenarios, such as 2D barcode scanner, to satisfy various retail and hospitality applications as well as inventory management or self-service operations that makes AIM-35 is ideal tablet POS system for the retail and hospitality market.

  • Built in Intel® Atom™ processor with dual OS platfrom (Windows / Andriod)
  • Industrial-Grade 8" 1,920 x 1,200 LCD Panel with 400 nits brightness andMTBF up to 12,000 hours
  • Equipped Gorilla® Glass 3, Anti-Glare, Anti-Fingerprint, Direct Bonded TouchPanel against scratch
  • Supports glove mode and stylus with palm detection to expand usability
  • IP65 water and dust protection/ 4ft drop compliant
  • Comprehensive communication technologies including 3G/4G, WLAN, BT,NFC, GPS and HDMI output
  • Camera module supports up to 13MP auto focus with LED flash
  • Supports Windows 10 IoT Enterprise & Android 6.0 OS

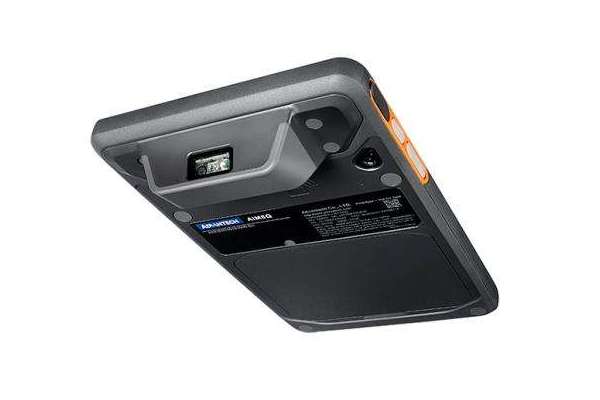

  • AIM Extension 14-pin Pogo connector supports Extension Modules for1D/2D Barcode scanner, MSR, IC Card readers
  • AIM Dock 16-pin Pogo connector supports Cradle and Docking peripherals:VESA mount dock, charging station and printer cradle

Price and avalability

Partnumber Description Price VAT incl Avalability
AIM-35AT-00101000 Промисловий планшетний комп'ютер 8" 1200х1920 400 ніт Intel Z8350 2GB/32GB WiFi Win10 IOT  41 605,3
AIM-35AT-00104000 Промисловий планшетний комп'ютер 8" 1200х1920 400 ніт Intel Z8350 2GB/32GB EU LTE Win10 IOT  51 637,6
AIM-35AT-02301000 Промисловий планшетний комп'ютер 8" 1200х1920 400 ніт Intel Z8350 4GB/64GB WiFi Win10 IOT  48 399,8
AIM-35AT-02304000 Промисловий планшетний комп'ютер 8" 1200х1920 400 ніт Intel Z8350 4GB/64GB EU LTE Win10 IOT  58 933,4
AIM-35AT-01101000 Промисловий планшетний комп'ютер 8" 1200х1920 400 ніт Intel Z8350 2GB/32GB WiFi Android  33 364,5
AIM-35AT-01104000 Промисловий планшетний комп'ютер 8" 1200х1920 400 ніт Intel Z8350 2GB/32GB EU LTE Android  48 901,6

Additional information

Part Number AIM-35AT-00101000 AIM-35AT-00104000 AIM-35AT-02301000 AIM-35AT-02304000 AIM-35AT-01101000 AIM-35AT-01104000

Color


Color Orange Orange Orange Orange Orange Orange

OS Support


OS Support Windows 10 IoT Enterprise Windows 10 IoT Enterprise Windows 10 IoT Enterprise Windows 10 IoT Enterprise Android 6.0 Android 6.0

Display


Size 8" TFT IPS LCD Panel 8" TFT IPS LCD Panel 8" TFT IPS LCD Panel 8" TFT IPS LCD Panel 8" TFT IPS LCD Panel 8" TFT IPS LCD Panel
Glass Type G/G Direct Bonding, Corning GG3 Glass G/G Direct Bonding, Corning GG3 Glass G/G Direct Bonding, Corning GG3 Glass G/G Direct Bonding, Corning GG3 Glass G/G Direct Bonding, Corning GG3 Glass G/G Direct Bonding, Corning GG3 Glass
Brightness 400 cd/m² 400 cd/m² 400 cd/m² 400 cd/m² 400 cd/m² 400 cd/m²
Max. Resolution WUXGA (1200x1920) WUXGA (1200x1920) WUXGA (1200x1920) WUXGA (1200x1920) WUXGA (1200x1920) WUXGA (1200x1920)

System


CPU Intel® X5-Z8350, 1.44GHz Intel® X5-Z8350, 1.44GHz Intel® X5-Z8350, 1.44GHz Intel® X5-Z8350, 1.44GHz Intel® X5-Z8350, 1.44GHz Intel® X5-Z8350, 1.44GHz
Memory 2GB 2GB 4GB 4GB 2GB 2GB
Storage 32GB 32GB 64GB 64GB 32GB

32GB

Touch Screen


Type P-CAP P-CAP P-CAP P-CAP P-CAP P-CAP

I/O Interface


Extendable Slot 1 x Micro SD (up to 32 GB) 1 x Micro SD (up to 32 GB) 1 x Micro SD (up to 32 GB) 1 x Micro SD (up to 32 GB) 1 x Micro SD (up to 32 GB) 1 x Micro SD (up to 32 GB)
USB Port 1 x Micro USB 3.0 (OTG) 1 x Micro USB 3.0 (OTG) 1 x Micro USB 3.0 (OTG) 1 x Micro USB 3.0 (OTG) 1 x Micro USB 3.0 (OTG) 1 x Micro USB 3.0 (OTG)
Output 1 x Pogo Pin, 1 x HDMI 1 x Pogo Pin, 1 x HDMI 1 x Pogo Pin, 1 x HDMI 1 x Pogo Pin, 1 x HDMI 1 x Pogo Pin, 1 x HDMI 1 x Pogo Pin, 1 x HDMI
Others 1 x Micro SIM 1 x Micro SIM 1 x Micro SIM 1 x Micro SIM 1 x Micro SIM 1 x Micro SIM

Communication


WLAN Internal 802.11b/g/n Internal 802.11b/g/n Internal 802.11b/g/n Internal 802.11b/g/n Internal 802.11b/g/n Internal 802.11b/g/n
Bluetooth 4.0 LE 4.0 LE 4.0 LE 4.0 LE 4.0 LE 4.0 LE
RFID 13.56 MHz; ISO 14443 Type A/B; ISO/IEC 15693; MIFARE; NFC 13.56 MHz; ISO 14443 Type A/B; ISO/IEC 15693; MIFARE; NFC 13.56 MHz; ISO 14443 Type A/B; ISO/IEC 15693; MIFARE; NFC 13.56 MHz; ISO 14443 Type A/B; ISO/IEC 15693; MIFARE; NFC 13.56 MHz; ISO 14443 Type A/B; ISO/IEC 15693; MIFARE; NFC 13.56 MHz; ISO 14443 Type A/B; ISO/IEC 15693; MIFARE; NFC
MSR N/A N/A N/A N/A N/A N/A
IC Card Reader N/A N/A N/A N/A N/A N/A
WWAN N/A LTE EU (w/o Voice Call) N/A LTE EU (w/o Voice Call) N/A LTE EU (w/o Voice Call)
Data Collection 2M/5M Camera, 1D/2D Barcode Scanner(Optional), RJ45+COM(Optional) 2M/5M Camera, 1D/2D Barcode Scanner(Optional), RJ45+COM(Optional) 2M/5M Camera, 1D/2D Barcode Scanner(Optional), RJ45+COM(Optional) 2M/5M Camera, 1D/2D Barcode Scanner(Optional), RJ45+COM(Optional) 2M/5M Camera, 1D/2D Barcode Scanner(Optional), RJ45+COM(Optional) 2M/5M Camera, 1D/2D Barcode Scanner(Optional), RJ45+COM(Optional)

Power


Battery 5060 mAh 5060 mAh 5060 mAh 5060 mAh 5060 mAh 5060 mAh

Dimensions


Dimensions 142 x 239 x 14.5 mm 142 x 239 x 14.5 mm 142 x 239 x 14.5 mm 142 x 239 x 14.5 mm 142 x 239 x 14.5 mm 142 x 239 x 14.5 mm

Weight


Weight (kg) 800 g 800 g 800 g 800 g 800 g 800 g

Enviroment


Operating Humidity 0~40° C 0~40° C 0~40° C 0~40° C 0~40° C 0~40° C
Operating Temperature -10 ~ +60° C -20 ~+60° C -20 ~+60° C -10 ~ +60° C -20 ~+60° C -20 ~+60° C
Storage Temperature 5%~95%, non-condensing 5%~95%, non-condensing 5%~95%, non-condensing 5%~95%, non-condensing 5%~95%, non-condensing 5%~95%, non-condensing
