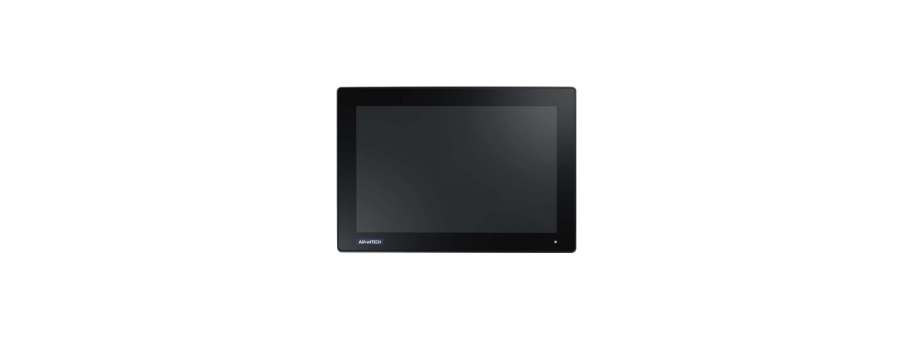

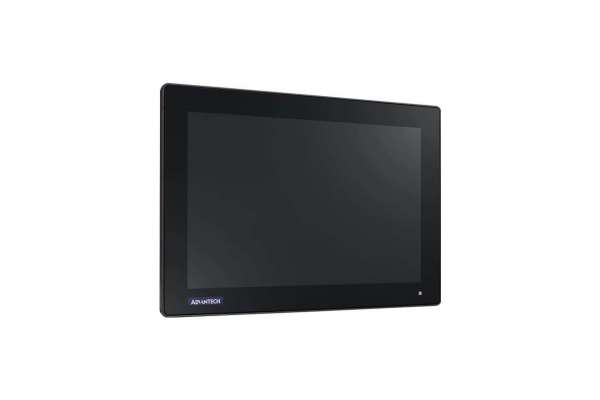

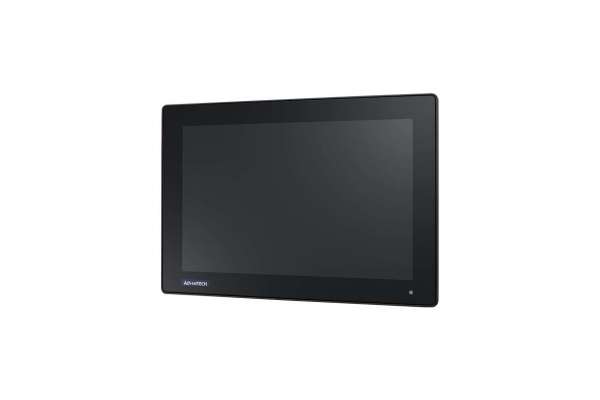

Industrial Monitor Advantech FPM-710SW

10.1" WUXGA TFT LED LCD Slim with P-CAP touch control monitor Advantech FPM-710SW

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
FPM-710SW-P7AE	Промисловий монітор Advantech FPM-7061T 6.5" VGA (640 x 480) Industrail Monitor, 800 nits, with Resistive touch (VGA, DP)	52 765,8

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-710SW are industrial-grade,widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with P-CAP multi-touch control and an IP66-rated front bezel,FPM-710SW series is specifically designed for industrial applications. FPM-710SW is first use type-C one single cable Ind. Touch Monitor. Moreover, FPM-710SW support various mount options to make these monitors ideal for factory and machine automation display applications.

• USB Type-C connection touch monitor 1920 x 1200
• 10.1" WUXGA TFT LED LCD with true-flat touchscreen
• 16:9 wide screen aspect ratio, increases viewing area by 40%
• Supports multi-touch control via USB interface in Windows 7/8/10 OS
• Slim design enables easy installation with Build-in panel mount kit
• Supports various mount options: panel, desktop, and VESA arm
• Touchscreen with reliable glass surface and P-CAP touch control
• Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel

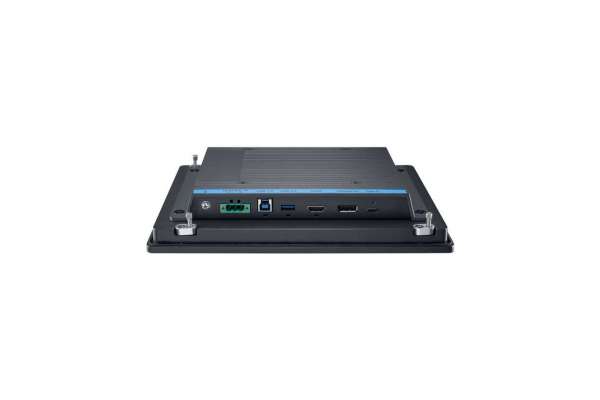

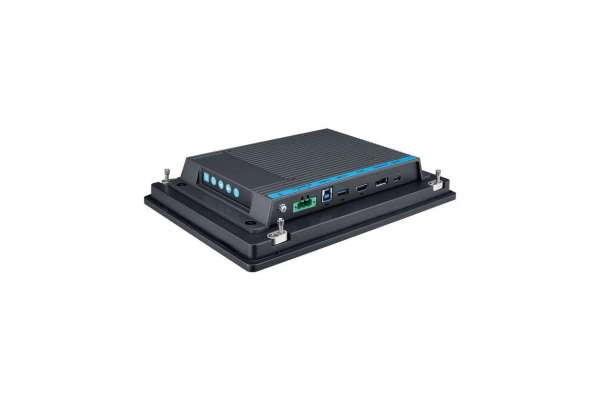

• Lockable I/O connectors
• Supports various mount options: panel, desktop, and VESA mounting
• First single cable Ind. Touch Monitor

Additional information

General
Certification	BSMI, CCC, CE, FCC Class A, UL, CB
Dimensions (W x H x D)	260.5 x 179.1 x 45.0 mm (10.3" x 7.1" x 1.8")
Enclosure	Front panel: Die-casting aluminium, Rear cover: Die-casting aluminium
Mount	Options Stand, Wall, Panel and VESA arm (100 x 100mm)
Power Input	Terminal Block: 12-24 VDC input
Video Port	HDMI, DP, and Type-C
USB	Rear I/O USB3.0 Type A=>Type B
Weight (Net)	1.1kg (2.42lb)
LCD Display
Display Type	WUXGA TFT LED LCD
Display Size	10.1"
Max. Resolution	1920 x 1200
Max. Color	16.7M
Viewing Angle (H/V)°	178/178
Luminance (cd/m2 )	380
Backlight Life (hrs)	30,000
Contrast Ratio	800:1
Touchscreen
Type	Projected capacitive touch
Interface	USB
OS Support	Windows® 7, 8, 10,11, XPe, CE and Linux
Hardness	7H
Multi Touch	10 points, USB interface in Win 7/8/10, Linux
Environment
Operating Temperature	-10 ~ 50 °C (14 - 122 °F)
Storage Temperature	-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity	Operating, 95% RH @ 40 °C, Non-Condensing Non-Operating, Operating, 95% RH @ 60 °C, Non-Condensing
Waterproof	Front Panel IP66 Compliant
Vibration	5 ~ 500 Hz, 1 Grms (Operating, Random)
