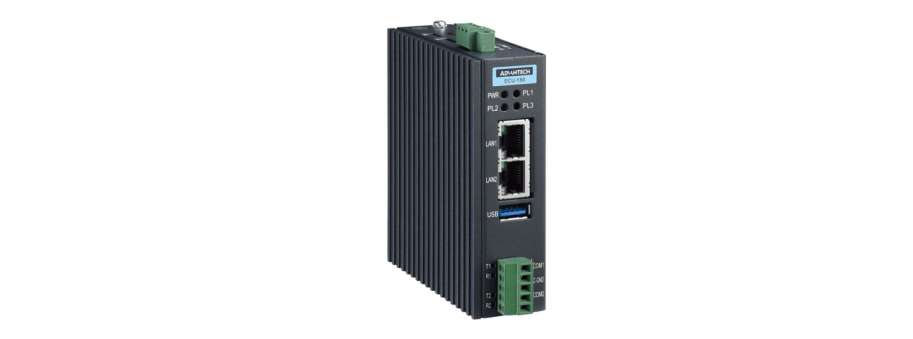

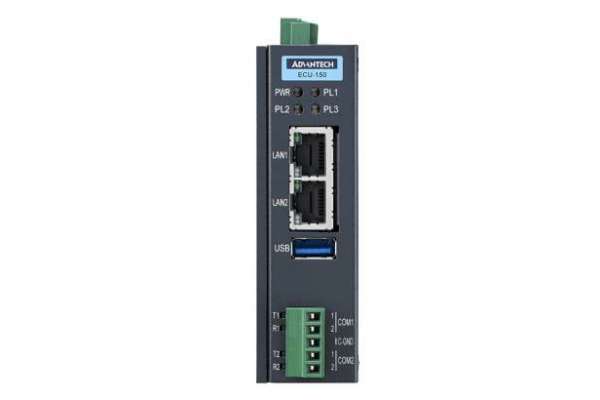

Compact High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53, 2 LAN, 2 COM & 1 USB Advantech ECU-150
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ECU-150-12A | Промисловий IIoT шлюз Advantech ECU-150-12A, A53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLink | 27 586,3 | |
| ECU-150-12A1 | A53 1.3GHz,2xLAN,2xCOM,1xmPCIE | 29 665,8 | |
| ECU-150-12A1U | A53 1.3GHz,2xLAN,2xCOM,1xmPCIE | 29 665,8 |
The ECU-150 is an IoT gateway built on the i.MX8M platform, featuring a high-performance Quad Core processor. With its open platform design, it offers exceptional flexibility. The gateway includes two RS-232/485 isolated serial ports, two 10/100/1000 Ethernet ports, and a USB 3.0 port, ensuring seamless connectivity. It operates reliably in extreme temperatures ranging from -40°C to 70°C. Equipped with Mini-PCIe and M.2 slots, the ECU-150 allows easy integration of Wi-Fi/4G/5G modules. The gateway supports Linux operating system and is bundled with the user-friendly EdgeLink configuration tool, empowering system integrators to develop precise applications for solar and electricity generation, and factory automation, which often demand extensive data collection, cloud-based solutions, and video monitoring capabilities.
- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 2/4GB RAM, 16/32GB eMMC for system storage
- 2 x RS-232/485 isolated serial ports
- 2 x 10/100/1000 Ethernet ports
- Modular design with optional second stack for increasing functionality
- Compact, robust, fanless and cable-free
- Supports SD cards and OTA firmware updates
Additional information
General |
|
| Certification | CE, FCC, UL 62368, IEC-62368 |
| Mounting | Wall-Mount/ DIN-Rail |
| Power consumption | 8W @ 24VDC |
| Power Requirements | 10 ~ 30 VDC |
| Dimensions (W x D x H) | Basic unit: 30 x 100 x 93mm Double stack: 55.1 x 100 x 93mm |
| Enclosure | Aluminum housing |
| Operating System | Yocto 4.14/Ubuntu 22.04 |
System |
|
| CPU | NXP i.MX8M Quad Core Cortex A53 1.3G |
| Memory | LPDDR4 2/4GB |
| Indicators | LEDs for Power, LAN (LINK, ACT), Serial (Tx, Rx), Programmable |
| Storage | 16/32GB eMMC |
| SD Slot | 1 x Micro-SD slot |
| Dispaly | N/A (Optional 1 x HDMI resolution 1280 x 720) |
| Watchdog | Yes |
| SIM Slot | 1 x Nano SIM slot |
| RTC | Yes |
| Security | TPM2.0 |
| FRAM | N/A (Optional 128KB) |
Communication |
|
| Serial Port | 2 x RS-232/485, 50 ~ 115200 bps |
| Isolation | 2500 VDC |
| Ethernet Port | 2 x 10/100/1000 RJ-45 ports |
| USB Port | 1 x USB3.0 |
| Expansion | Interface: 1x Mini-PCIe (Full-size) Type: WIFI/Cellular/4G Signal: USB 2.0 (Optional PCIe) |
Environment |
|
| Operating Temperature | -40~70°C |
| Storage Temperature | -40~85°C |
| Humidity | 5~95% (non-condensing) |
