Cellular 4G LTE Router & Gateway ICR-1601

Cellular 4G LTE Router & Gateway ICR-1601 for use in the newest Category 4 (Cat.4) services on the cellular LTE network

Networks and Communications >> Cellular Routers & Gateways

 Price and avalability

Manufacturer: Advantech Co., Ltd.

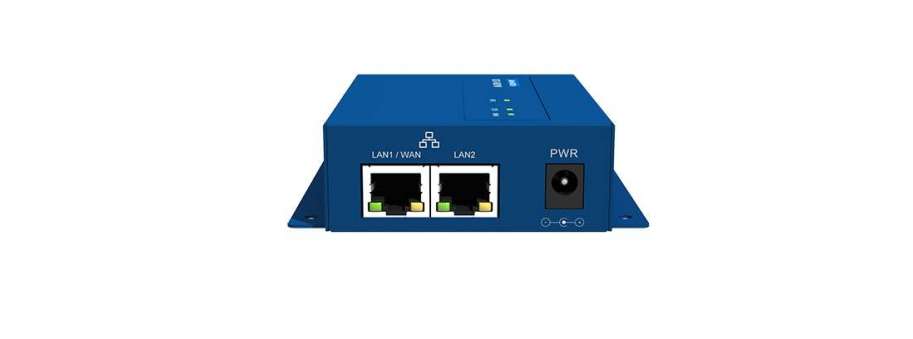

Cellular router ICR-1601 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the newest Category 4 (Cat.4) services on the cellular LTE network.

As a standard, the ICR-1601 router is equipped with two Fast Ethernet 10/100 Mbps interfaces, two readers for SIM cards and reader for MicroSD card (log storage). The router can be equipped with WiFi module or with GPS module. This router is supplied in a metal bracket casing.

Price and avalability

Partnumber Description Price VAT incl Avalability
ICR-1601G Мережевий рутер з портами вводу-виводу Advantech ICR-1600 Industrial Cellular Router,GPS,EMEA,2x ETH,ACC  9 473,9 Доступно
ICR-1601W Мережевий рутер з портами вводу-виводу Advantech ICR-1600 Industrial Cellular Router,WIFI,EMEA,2x ETH,ACC  9 903,3

Additional information

Basic Parameters
Temperature range
Operating -30 ◦C to +70 ◦C∗
Storage -40 ◦C to +85 ◦C
Humidity
Operating 10 to 95% relative humidity non condensing
Storage 10 to 95% relative humidity non condensing
Supply voltage 5 to 18 V DC
Consumption  Maximum 7 W
Dimensions 93x90x27 mm
Antenna connectors 3x SMA – 50 Ω
Wi-Fi
Antenna connector R-SMA – 50 Ω
Supported WiFi band 2.4 GHz
Standards 802.11n, 802.11g, 802.11b
2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Functions Multi-SSID, WMM
Security WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x
Type of device  Access point
