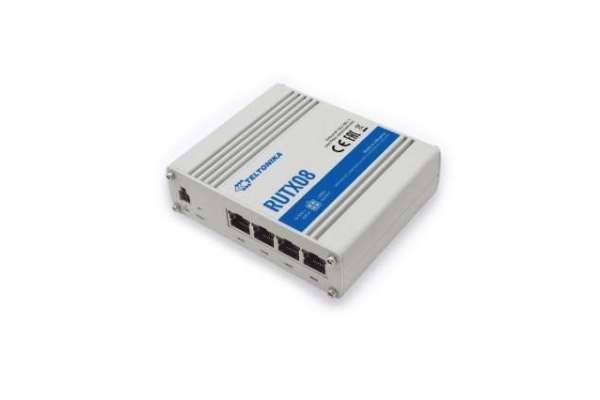

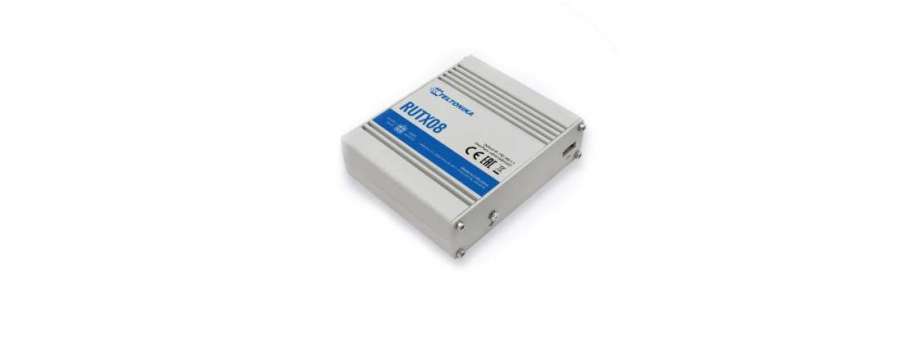

Ethernet router Teltonika-RUTX08

Durable Industrial router Teltonika-RUTX08 on RutOS 4 Ethernet ports

Networks and Communications >> Cellular Routers & Gateways

 Price and avalability

Manufacturer: Teltonika

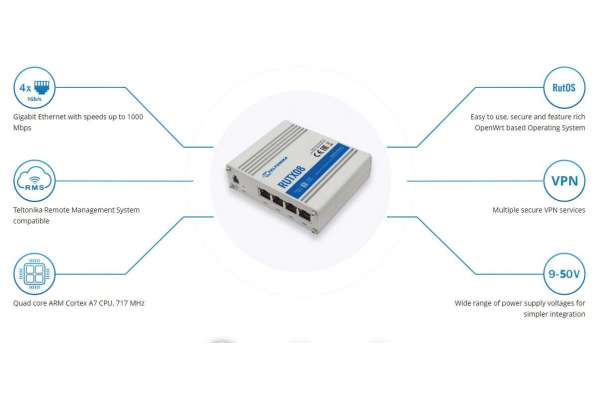

Durable and powerful Ethernet-to-Ethernet router that runs on RutOS - an advanced OpenWrt based operating system. Four Gigabit Ethernet ports, a rugged aluminum housing and industrial networking protocol support makes RUTX08 a perfect choice for professional applications.

This robust industrial router is equipped with four Gigabit Ethernet ports, a Quad-core CPU and 256 MB of RAM. These powerful specifications combined with core RutOS software features such as multiple VPN services, advanced firewall and RMS support makes this device a superb Industrial performer where no cellular or WiFi connectivity is required.

User Manual

Price and avalability

Partnumber Description Price VAT incl Avalability
RUTX08000000 Teltonika RUTX08 - гігабітний маршрутизатор, із 4 портами Gigabit Ethernet, в комплекті блок живлення.  4 680,7

Additional information

SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
ETHERNET
WAN 1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
INPUT/OUTPUT
Input 1x Digital Input
Output 1x Digital Output
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)
Ethernet 4x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 8x LAN status LEDs, 1x Power LED
Power 4 pin DC connector
USB USB A port for external devices
Reset Factory reset button
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 32 mm (H x W x D)
Weight 345 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
SAFETY
Standards IEC 62368-1:2014 EN 62368-1:2014+A11:2017
