Router RUTX09

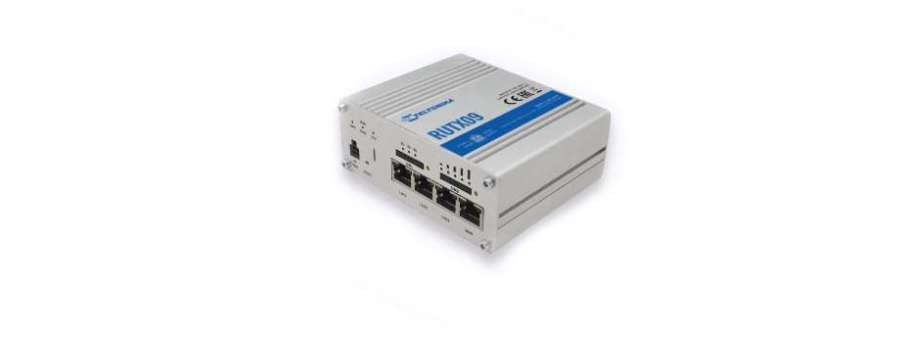

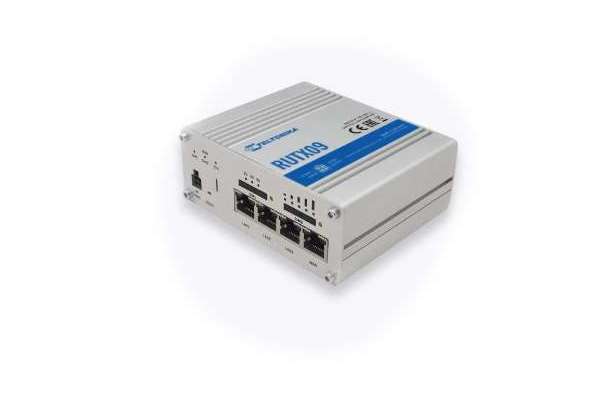

LTE cellular IoT router Teltonika-RUTX09 with Dual-SIM 4 x Gigabit Ethernet ports

Networks and Communications >> Cellular Routers & Gateways

 Price and avalability

Manufacturer: Teltonika

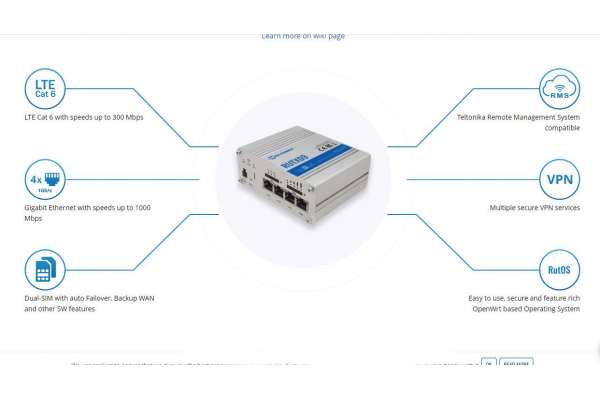

Next generation LTE-A CAT6 cellular IoT router with Dual-SIM, Carrier Aggregation and Gigabit Ethernet interfaces. A rugged and powerful choice with VPN, firewall and plenty of processing power for custom applications on the OpenWrt based RutOS system.

This powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and four Gigabit Ethernet ports, RUTX09 also has all advanced RutOS software and security features.

User Manual

Price and avalability

Partnumber Description Price VAT incl Avalability
RUTX09000000 Teltonika RUTX09 - LTE маршрутизатор на 2 SIM, із 4 портами Gigabit Ethernet, GPS, в комплекті антени із кабелем та блок живлення.  8 995,1 Доступно
Teltonika RMS Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою).  73,7 Доступно

Additional information

MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned)
ETHERNET
WAN 1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
MODBUS
Modbus TCP slave ID range 1-255
Modbus TCP master Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
USB
Data rate USB 2.0
INPUT/OUTPUT
Input 1x Digital Input
Output 1x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption 9 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 3x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 3x WAN status LEDs, 1x Power LED
SIM 2x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin DC connector
Antennas 2x SMA for LTE, 1x SMA for GNNS
USB USB A port for external devices
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 455 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
SAFETY
Standards IEC 62368-1:2014, EN 62368-1:2014 + A11:2017
EN 50665:2017, EN 62311:2008
