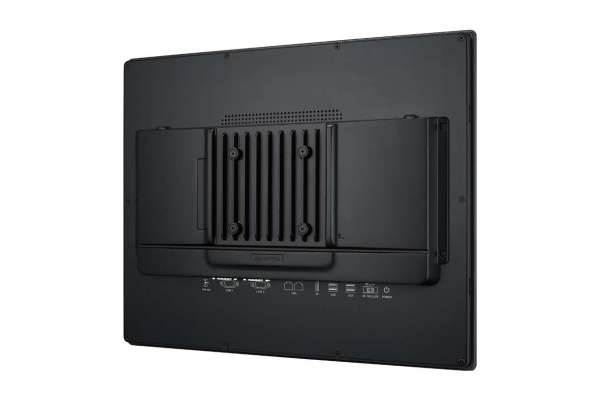

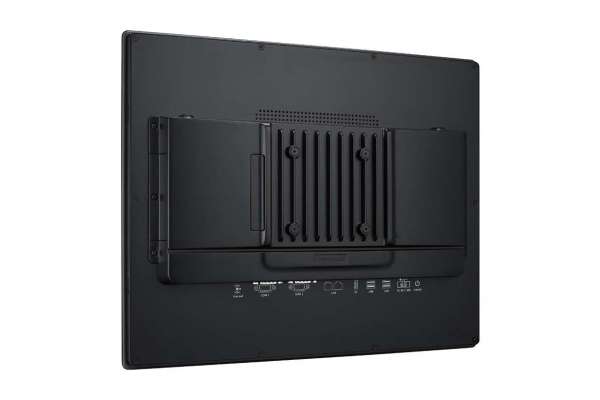

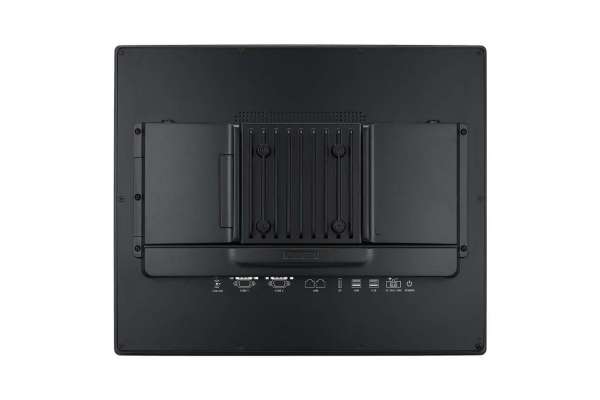

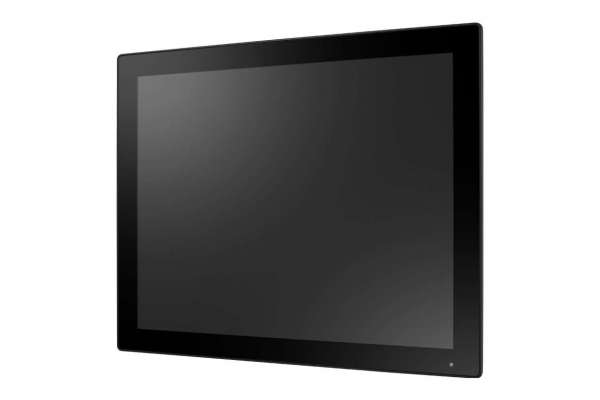

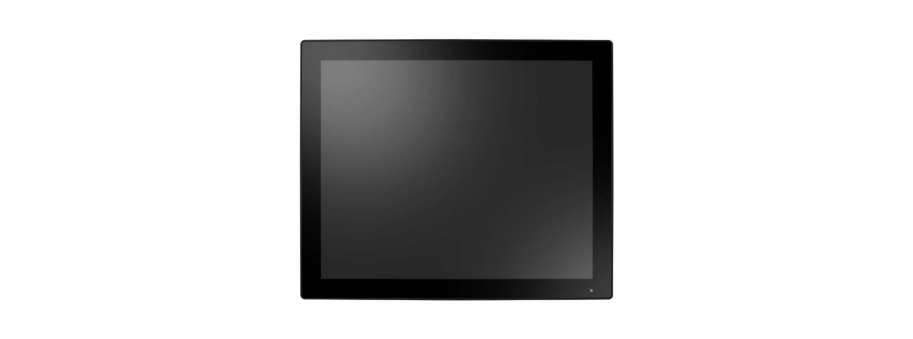

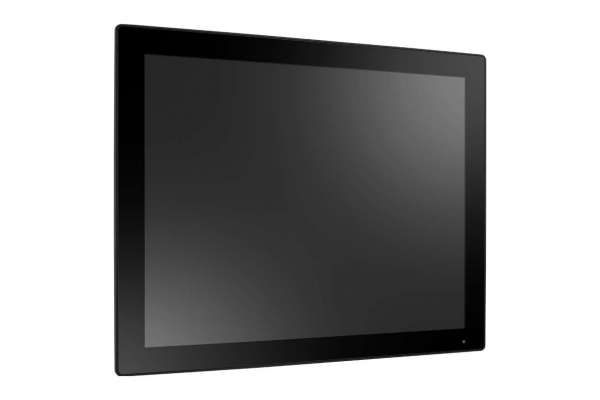

19" Fanless Panel PC with Intel® 13th Gen Core™ i7/i5/i3 Processor Advantech PPC-319S RPL
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-319S-RDI3A | Панельний комп'ютер Advantech, PPC-319S 19" PPC w/I i3-1315UE, RTP | 99 335,2 | |
| PPC-319S-RDI5A | Панельний комп'ютер Advantech, PPC-319S 19" PPC w/I i5-1335UE, RTP | 110 736,0 | |
| PPC-319S-RDI7A | 19" PPC w/I i7-1365UE, RTP | 126 282,0 | |
| PPC-319S-PDI5A | 19" PPC w/I i5-1335UE, P-Cap | 110 736,0 |

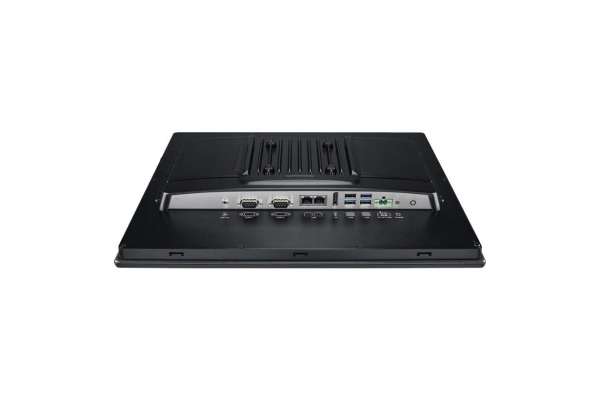

PPC-300S RPL equipped Intel 13th Gen Core i7/i5/i3, providing high computing performance with a slim & compact design and robust aluminum alloy enclosure. It also leverages M.2 M key NVMe PCIe to accommodate extremely high date rate and low latency advantage. PPC-300S RPL features 4 x USB, 2 x series ports and 1 x DP for flexible access and connection. The addition optional of PCIe/PCI slots or idoor for fieldbus or proprietary card extensions increases the compatibility of the system for various applications. The PPC-300S RPL series is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.
- True-flat touchscreen with Industrial-grade LCD panel
- High-performance, fanless 13th generation Intel® Core™ i processor
- Slim Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external DP)
- 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 4) for storage, support SATA RAID 0,1
- 2 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- Supports VESA 75
- Support TPM2.0 hardware security
- Support iDoor
- Support PCI or PCIe
Additional information
System |
|||
| CPU | i3-1315UE | i5-1335UE | i7-1365UE |
| Core | 6 | 10 | 10 |
| Frequency | 1.20 GHz upto 4.5GHz with Turbo | 1.30 GHz upto 4.5GHz with Turbo | 1.70 GHz upto 4.9GHz with Turbo |
| Cache | 10 MB | 12 MB | 12 MB |
System |
|
| Memory | 1 x SODIMM, DDR5 4800MHz, max. 32GB |
| Storage |
|
| Network (LAN) | 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM) |
| I/O |
|
| Expansion |
|
| Watchdog Timer | 255 timer levels; setup by software |
| Speaker | 1 x 2W |
LCD |
|
| Display Type | 19" TFT LCD (LED backlight) |
| Max. Resolution | 1280 × 1024 |
| Viewing Angle | 89 (left), 89 (right), 89 (up), 89 (down) |
| Luminance (cd/m2 ) | 450 |
| Contrast Ratio | 1000 |
| Backlight Lifetime | 50,000hrs (min.) |
Touchscreen |
|
| Touchscreen type | 5 wire resistive touch or Mlti-touch projected capacitive |
| Light Transmission | 80%±5% (Res) or >86% (P-cap) |
| Controller | USB interface |
Physical Characteristics |
|
| Dimensions | 429.7 x 354.6 x 56.4 mm (16.9 x 13.96 x 2.2 in) |
| Weight | 6.3 kg (13.9 lb) |
OS Support |
|
| OS Support | Windows 10 LTSC, Windows 11, Linux |
Power Comsumption |
|
| Input Voltage | 24VDC ± 30% |
| Power Consumption | 70W |
Environment |
|
| Operating Temperature | -10 ~ 50 °C (32 ~ 122 °F) |
| Storage Temperature | -20 ~ 60 °C ( -4 ~ 140 °F) |
| Relative Humidity | 95% @ 40 °C (Non-Condensing) |
| Shock | Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 |
| Vibration | Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-2-64 |
| EMC | CE,FCC Class B, BSMI, EN60601-1-2, UKCA |
| Safety | CB, UL, CCC, UKCA |
| Front Panel Protection | IP66 compliant |
