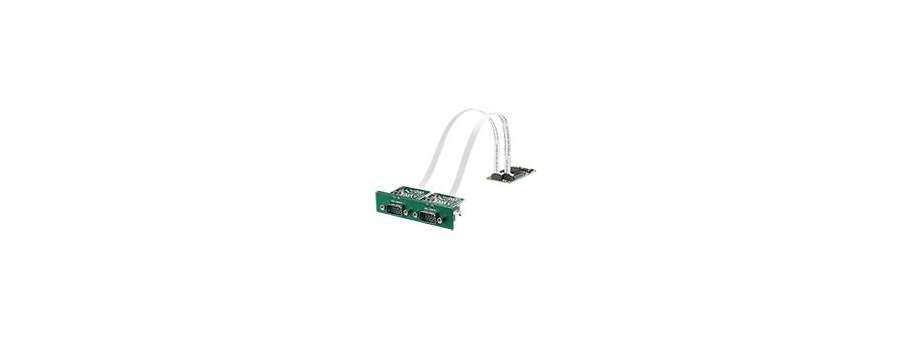

Isolated CANBus, 2-Ch, DB9, PCIe I/F Advantech MOS-1130Y-0201E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-1130Y-0201E Мережевий пристрій/Перетворювач інтерфейсів Isolated CANBus, 2-Ch, DB9, PCIe I/F  9 762,8
  • Meets Advantech Standard iDoor Technology
  • PCI Express® Mini Card Specification Revision 1.2 compliant
  • Operates two separated CAN networks simultaneously
  • High speed transmission up to 1 Mbps
  • I/O address automatically assigned by PCIe plug & play
  • Supports 32/64-bit Windows 2000/XP/Vista/7, Linux 2.4/2.6
  • Optical isolation protection of 2,500 VDC ensures system reliability
  • Supports ARK-2121L and ARK-6322

Additional information

General

Bus Type PCI Express Mini Card Revision 1.2
Certification CE, FCC class A
Connectors 2 x Male DB9
Dimensions
  • Module: 51 x 30 x 12.4 mm (2" x 1.18" x 0.49")
  • I/O Plate: 81 x 19.4 x 41 mm (3.19" x 0.76" x 1.61")
Power Consumption Typical : +5V @ 400 mA

Communications

CAN Controller NXP SJA-1000
CAN Transceiver NXP 82C251
Protocol CAN 2.0 A/B
Signal Support CAN_H, CAN_L
Speed 1Mbps
CAN Frequency 16MHz
Termination Resistor 120 Ohm (selected by jumper)

Protection

Isolation Protection 2,500 V
ESD Protection 15 KV
EFT Protection 2,500 V
Surge Protection 1,000 VDC

Software

CAN Bus Driver Windows 2000/XP/Vista/7 (x86 and x64), Windows CE 5.0/6.0, Linux, QNX
CANopen Software Windows 2000/XP/Vista/7 (x86 and x64), Windows CE 5.0/6.0

Environment

Humidity (Operating) 5-95% RH, non-condensing
Operating Temperature -20 ~ 60° C (-4 ~ 140° F)
Storage Temperature -40 ~ 85° C ( -40 ~ 185° F)
