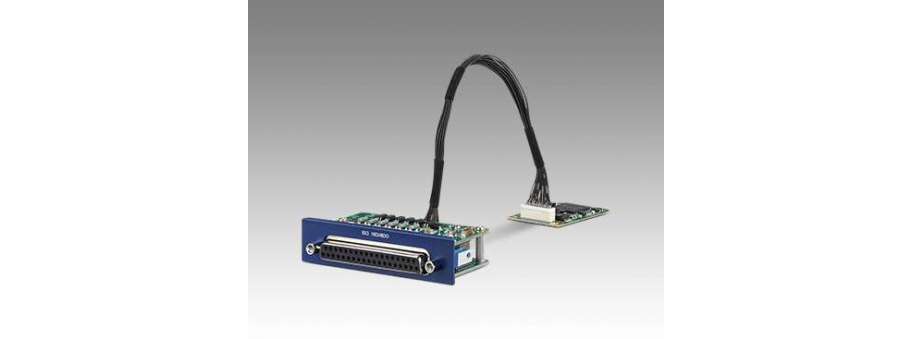

Isolated 16 DI / 8 DO, 1-Ch, DB37, PCIe I/F Advantech MOS-1110Y-0101E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-1110Y-0101E Мережевий пристрій/Перетворювач інтерфейсів Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe I/F  6 883,8
  • Meets Advantech Standard iDoor Technology
  • PCI Express® Mini Card Specification Revision 1.2 compliant
  • Supports wide-input/output voltage (10-30 VDC/5-30 VDC)
  • High over-voltage-protection (70 VDC) and voltage isolation (2,500 VDC)
  • Easy configuration & efficient programming by Advantech DAQNavi
  • I/O address automatically assigned by PCIe plug & play
  • Keeps the output settings and values after system hot reset
  • Supports ARK-2121L and ARK-6322

Additional information

General

Bus Type PCI Express Mini Card Revision 1.2
Certification CE, FCC class A
Connectors 1 x Female DB37
Dimensions
  • Module: 51 x 30 x 12.4 mm (2" x 1.18" x 0.49")
  • I/O Plate: 81 x 19.4 x 41 mm (3.19" x 0.76" x 1.61")
Power Consumption
  • Typical: +3.3 V @ 400 mA
  • Max.: +3.3V @ 520 mA

Isolated Digital Input

Input Channels 16
Input Voltage (Wet Contact)
  • Logic 0: 0~3 VDC
  • Logic 1: 10~30 VDC
Input Voltage (Dry Contact)
  • Logic 0: Open
  • Logic 1: Shorted to GND
Input Current
  • 10 VDC @ 2.97 mA
  • 20 VDC @ 6.35 mA
  • 30 VDC @ 9.73 mA
Input Resistance 5K Ohm
Interrupt Capable Channels 2 (IDI0, IDI8)
Isolation Protection 2,500 VDC
Overvoltage Protection 70 VDC
ESD Protection 4KV (Contact), 8KV (Air)
Opto-Isolator Response 50 μs

Isolated Digital Output

Output Channels 8
Output Type MOSFET
Isolation Protection 2,500 VDC
Output Voltage 5 ~ 30 VDC
Sink Current 100 mA max./channe
Opto-isolator Response 50 μs

Counter

Channels 2
Resolution 32 bits
Max. Input Frequency 1 kHz

Software

Tools & Drivers Advantech DAQNavi Tools & API Drivers
OS Support Microsoft® Windows® XP/7/8

Environment

Humidity (Operating) 5-95% RH, non-condensing
Operating Temperature -20 ~ 60°C (-4 ~ 140°F)
Storage Temperature -40 ~ 85°C ( -40 ~ 185°F)
