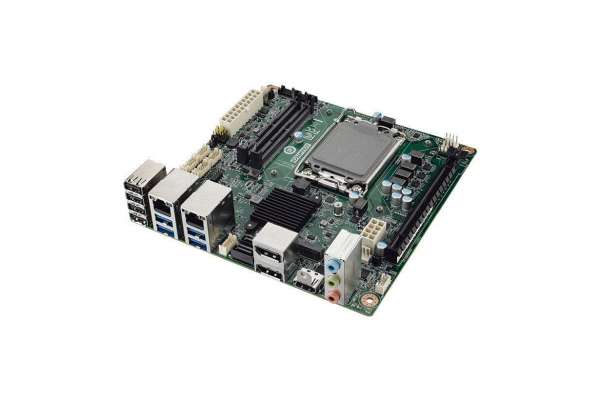

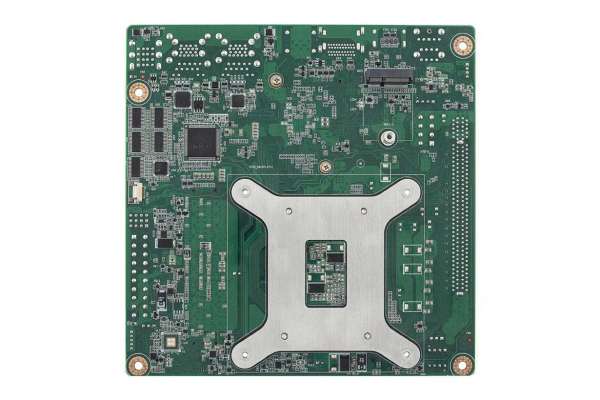

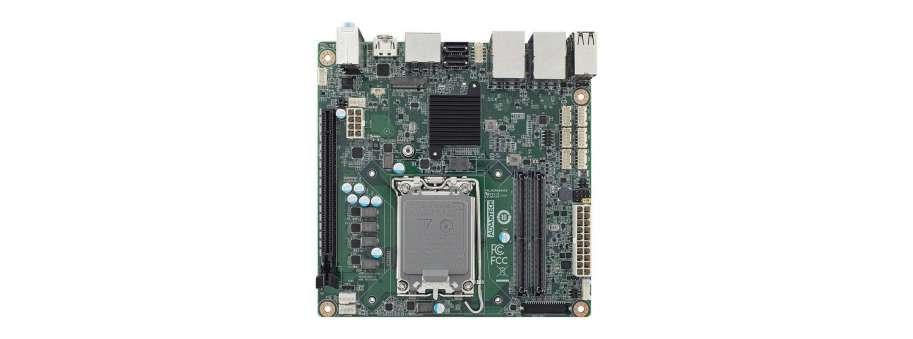

Intel® 12th/13th Gen Core™ (Raptor Lake-S) i9/i7/i5/i3 LGA1700, Mini-ITX with 2 DP/HDMI/LVDS,2 SATA III, 6 COM, 2 LAN, 4 USB3.2 Gen1x1, Advantech AIMB-208

Price and avalability

Partnumber Description Price VAT incl Avalability
AIMB-208HF-LAA1 MiniITX ADL-S LGA1700 H610E/LVDS/PCIex16 Gen4/D4  18 358,0
AIMB-208HL-EAA1 MiniITX ADL-S LGA1700 H610E/PCIex16 Gen4/DDR4  17 399,3
  • 12th/13th Gen Intel® Core™ Desktop Processors, max. 24Core, support H610E chipset
  • Up to 64GB DDR4 3200 MT/s with two SO-DIMM
  • PCIe x16 Gen4
  • Triple independent displays with 2 DP, 1 HDMI, 1 LVDS
  • Rich expansion: 1 M.2 M-key & 1 M.2 E-key, 4 USB 3.2 Gen1x1 & 6 USB2.0, 2 SATA III and 6 COM
  • WISE-DeviceOn and Embedded Software APIs
13th Generation Processors
CPU i9-13900E / i9-13900 i9-13900TE i7-13700E / i7-13700 i7-13700TE i5-13500E / i5-13500 i5-13500TE i5-13400E/ i5-13400 i3-13100E / i3-13100 i3-13100TE
Core Number 24 24 16 16 14 14 10 4 4
Base frequency (GHz) 1.8/2.0 1 1.9/2.1 0.8 2.4/2.6 1.3 2.4/2.5 3.3/3.4 2.4
Max Speed (GHz) 5.2/5.6 5 5.1/5.2 4.8 4.6/4.8 4.5 4.6 4.4/4.5 4.1
Smart cache (MB) 36 36 30 30 24 24 20 12 12
TDP (W) 65 35 65 35 65 35 65 60 35
12th Generation Processors
CPU i9-12900E / i9-12900 i9-12900TE i7-12700E / i7-12700 i7-12700TE i5-12500E / i5-12500/12400 i5-12500TE i3-12100E / i3-12100 i3-12100TE G7400E G7400TE G6900E G6900TE
Core Number 16 16 12 12 6 6 4 4 2 2 2 2
Base frequency (GHz) 2.3/2.4 1.1 2.1 1.4 2.9/3.0/2.5 1.9 3.2 2.1 3.6 3 3 2.4
Max Speed (GHz) 5 4.8 4.8 4.7 4.5/4.6/4.4 4.3 4.2/4.3 4 NA NA NA NA
Smart cache (MB) 30 30 25 25 18 18 12 12 6 6 4 4
TDP (W) 65 35 65 35 65 35 60 35 46 35 46 35

Additional information

Processor System

Chipset H610E
BIOS AMI EFI 256Mb SPI

Expansion Slot

M.2 1 M-Key for SSD, 1 E-Key for Wireless connection
PCIe x16 PCIe x16 Gen4 for discrete GPU card and storage devices

Memory

Technology Dual Channel DDR4, up to 3200 MT/s (non-ECC)
Max. Capacity 64GB (up to 32GB per DIMM)
Socket 2 x 260pin SO-DIMM

Graphics

Controller up to Intel® UHD Graphics 770
HDMI HDMI1.4b, up to 3840×2160 @ 30 Hz
DP DP1.4a, up to 4096 x 2304 @ 60 Hz
eDP By Option, up to 4096 x 2304 @ 60 Hz
LVDS By Default, supports singel/dual channel 18/24-bit, up to 1920 x 1200 @ 60 Hz (eDP colay with LVDS)
Multi Displays up to 3 display(combination of HDMI, 2DP, eDP or LVDS)

Network

ETHERNET 10/100/1000/2500 Mbps (by BOM option)
Controller Intel i219V and Intel i226V
Connector 2 x RJ45

Audio

Codec Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
Amplifier Yes (Option, 2.5W)

SATA

Max data transfer rate 6 Gb/s
Channel 2 x SATA III

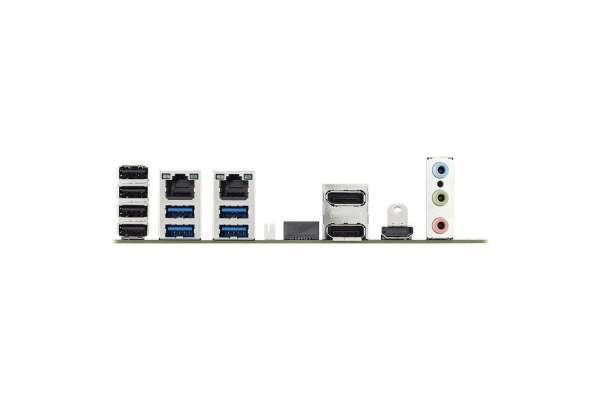

Rear I/O

DP 2
HDMI 1
Ethernet 2
USB Up to 4 USB3.2 Gen1x1 & 4 USB2.0
Audio 1 (Line in/Line out/Mic in)

Internal Connector

USB 2 (USB2.0)
LVDS/eDP 1 (eDP colay with LVDS)
Seria 6 (COM1~COM6 support RS-232. COM2 option RS-232/422/485)
SATA 2
M.2
  • 1 M-key (dimension: 2242)
  • 1 E-key (dimension: 2230)
GPIO 8-bit

Watchdog Timer

Output System reset
Interva Programmable 1 ~ 255 (second or minute)

Power Requirements

Input voltage 12V ATX
Connector Internal ATX 20pin
Power consumption
  • Configuration Intel® Core™ i9-13900E, 2pcs 32 GB DDR4 3200 MT/s
  • Max. 82.2 W
  • Typical 60 W

Environment

Temperature Operating: 0 ~ 60° C (32 ~ 140° F)
Storage Non-Operating: -40 ~ 85° C (-40 ~ 185° F)

Physical Characteristics

Dimensions 170 mm x 170 mm (6.69" x 6.69")
