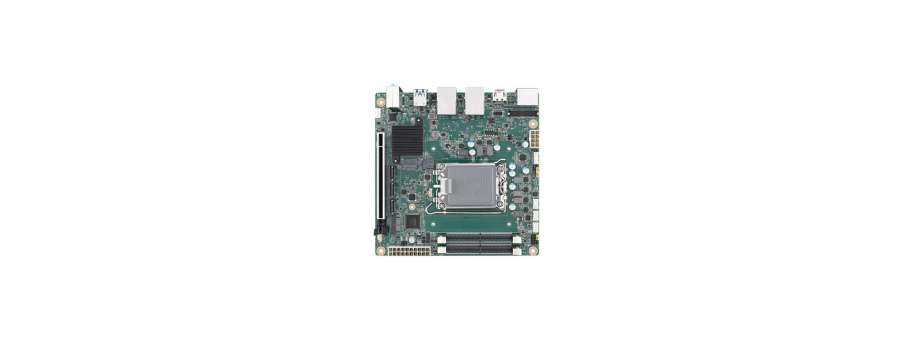

Mini-ITX Motherboard 12th Gen Intel® Core™ Processor LGA1700 Advantech AIMB-278
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMB-278Q-00A1 | Промислова материнська плата Advantech AIMB-278 MiniITX ADL-S LGA1700 Q670E/PCIex16 Gen5/2.5GbE | 28 409,0 | |
| AIMB-278H-00A1 | MiniITX ADL-S LGA1700 H610E/PCIex16 Gen5/2.5GbE | 25 161,5 |
- 12th Gen Intel® Core™ Desktop Processors, Up to 16Core, support Q670E/ H610E chipset
- Dual channel DDR5 4800MHz, max. 64GB with two SODIMMs
- Super Speed I/O: PCIe x16 Gen5 (32GT/s), USB3.2 Gen2 (10Gbps), 2.5GbE
- Quad independent 4K displays with 2 DP, 1 HDMI, 1eDP
- Rich expansion: M.2 M key for NVMe SSD, M.2 E key for wireless, 3 SATA(RAID 0,1,5)
- TPM2.0 support
- SUSI API, WISE-DeviceOn and Embedded Software
You can see more detailed information about the processor system in the data sheet
Additional information
Expansion Slot |
|
| M.2 | 1 M-Key for SSD, 1 E-Key for Wireless connection |
| PCIe x16 | PCIe x16 Gen5(32GT/s) for discrete GPU card and storage devices |
Memory |
|
| Technology | Dual Channel DDR5, up to 4800 MHz (non-ECC) |
| Max. Capacity | 64GB (up to 32GB per SODIMM) |
| Socket | 2 x 262pin SODIMM |
Graphics |
|
| Controller | up to Intel® UHD Graphics 770 |
| HDMI | HDMI2.0b, supports max. resolution 4096 x 2160 @ 60 Hz |
| DP | DP1.4a, supports max. resolution 4096 x 2304 @ 60 Hz |
| eDP | By Default, with internal pin header, supports max. resolution 4096 x 2304 @ 60 Hz |
| LVDS | By Option, internal pin header, supports singel/dual channel 18/24-bit with maximum resolution up to 1920 x 1200 @ 60 Hz (eDP colay with LVDs) |
| Multi Displays | up to 4 independent displays (combination of 2DP, 1HDMI, 1eDP) |
Network |
|
| ETHERNET | up to 2500 Mb/s |
| Controller | Intel I219LM and Intel I225-LM |
| Connector | 2 x RJ45 |
SATA |
|
| Max data transfer rate | 600 MB/s |
| Channel | 3 x SATAIII |
Rear I/O |
|
| DP | 2 |
| HDMI | 1 |
| Ethernet | 2 |
| USB | Up to 6 USB3.2 (Q670E: 6 USB3.2 Gen2 ; H610E: 4 USB3.2 Gen1 & optional 2 USB2.0) |
| Audio | 1 (Line in/Line out/Mic in) |
Internal Connector |
|
| USB | 2 (USB2.0) |
| LVDS/eDP | 1 (LVDs colay with eDP) |
| Serial | 2 (COM1 RS-232, COM2 RS232/422/485) |
| SATA | 3 |
| M.2 |
|
| GPIO | 8-bit |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec/min |
Power Requirements |
|
| Boost | 92.7W |
| Typical | 68.9W |
Environment |
|
| Temperature | Operating: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution |
| Storage | Non-Operating: -40 ~ 85° C |
Physical Characteristics |
|
| Dimensions | 170 mm x 170 mm (6.69" x 6.69") |
