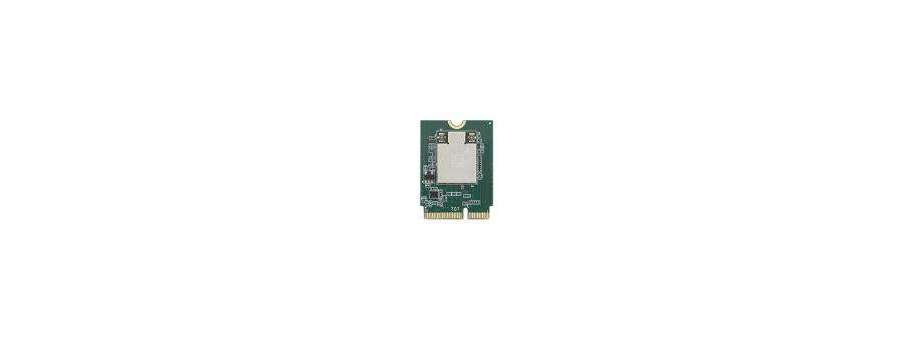

Module 802.11ac/a/b/g/n and BT 5.0 M.2 2230 Advantech AIW-154

Price and avalability

Partnumber Description Price VAT incl Avalability
AIW-154BN 802.11ac+BT5.0 NXP 88W8997 M.2 2230 PCIe+UART  2 369,8

Advantech's AIW-154BN is an industrial grade wireless module. It integrates Wi-Fi, Bluetooth, and low energy technology; and is an excellent solution for applications in medical devices, handheld solutions, industrial environments, embedded boards, and transportation.

  • IEEE 802.11ac/a/b/g/n (2.4 and 5GHz) and Bluetooth 5.0
  • Supports MU-MIMO (2T2R)
  • Wide operating temperature -30 ~ 85 °C (-22 ~ 185 °F)
  • Supports Linux OS
  • M.2 2230 form factor module (L x W x H) 30 x 22 x 2.85 mm/ 1.18 x .86 x .11 in

Additional information

Main Chipset NXP 88W8997
Tx/Rx 2TX / 2RX
Standard Conformance IEEE 802.11ac/a/b/g/n, Bluetooth 5.0
Form Factor M.2 2230
Interface
  • Wi-Fi: PCIe
  • BT: UART
Operating Voltage DC 3.3V
Security
  • WAPI
  • WEP 64-bit and 128-bit encryption with H/W TKIP processing
  • WPA/WPA2/WPA3 (Wi-Fi Protected Access)

AES-CCMP hardware implementation as part of 802.11i security standard

OS Supported Linux (open source), Recommend Kernel V4.0 and above
Operating Temperature -30 ~ 85 °C (-22 ~ 185 °F)
Dimensions (L x W x H) 30 x 22 x 2.85 mm/1.18 x .86 x .11 in
