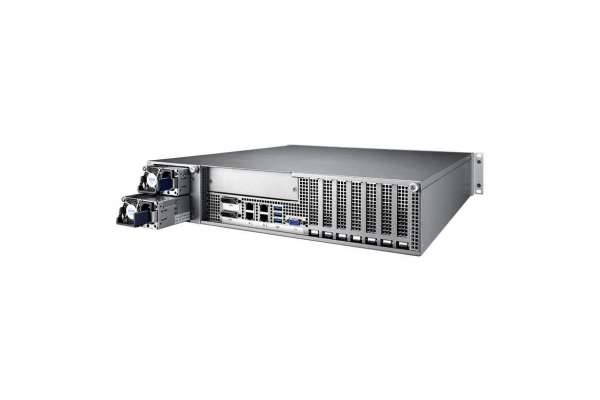

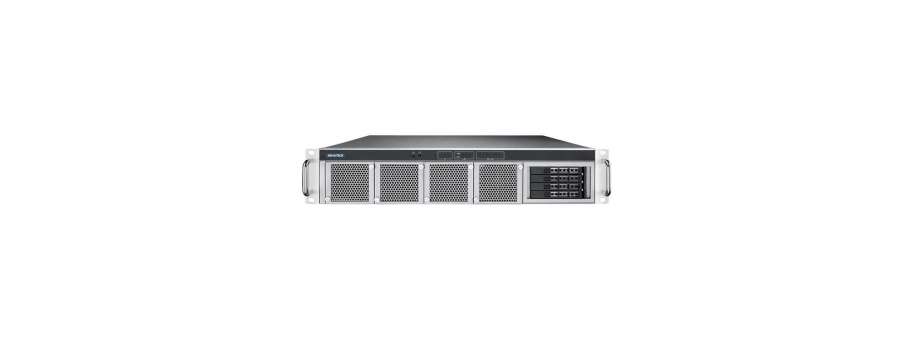

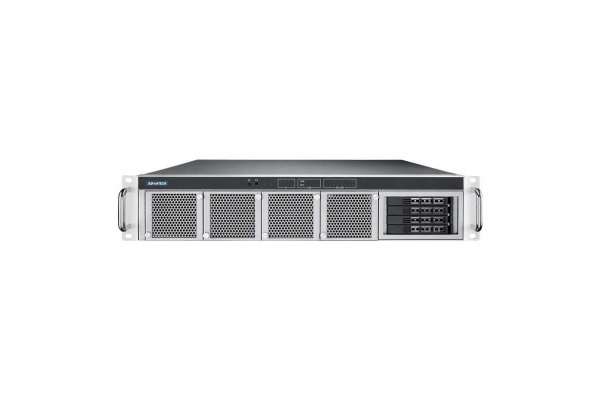

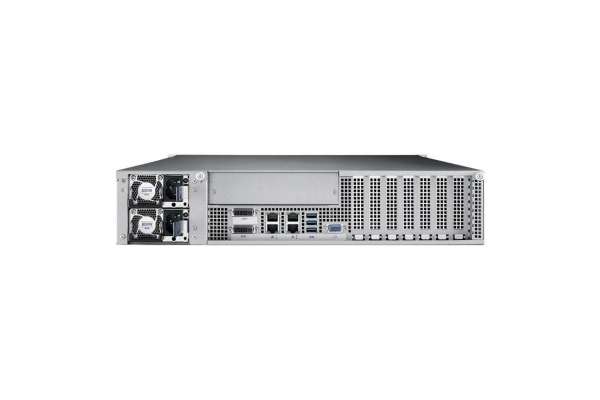

IEC-61850-3 Certified Power Automation Server Advantech ECU-579

Price and avalability

Partnumber Description Price VAT incl Avalability
ECU-579-SSDA Промисловий комп'ютер для енергетики Advantech ECU-579 Power automation server w/Xeon Scalabal,4LAN,DP  216 225,0

The ECU-579 is TUV IEC 61850-3 and IEEE 1613 certified Power Automation Server, which can provide high reliability and stability for Centralized Substation Protection and Control System in HV/MV Substation. Architected around the new Intel® Xeon® Processor Scalable Family, the ECU-579 support high performance and long system lifecycles required by the industry. Hot-swappable PSU make the ECU-579 a platform of choice for applications requiring zero downtime. Hot-swappable Fan provides the ability to withstand single fan failures.

  • 2U rackmount server with an wide operating temperature
  • Intel® Xeon® Processor Scalable Family
  • Scalable CPU 24/20/14/8 Core (150W/125W/85W/70W)
  • 12 x DIMM sockets support up to 768GB DDR4 1600/1866/2133/2400/2666 MHz SDRAM (ECC/RDIMM/LRDIMM)
  • Up to 2 x hot-swappable PSU and 4 x hot-swappable Fan for redundancy
  • Up to 4 x 2.5" hot-swappable HDD/SSD, 1 x M.2 2280 SATA SSD
  • Up to 2 x PCIe x16 Gen3 slots, PCIe x8 Gen3 slots, PCIe x4 Gen3 slots
  • IPMI 2.0-compliant management with reliability and security enhancements
  • Supporting TPM2.0 (need to order TPM2.0 module and install)

Additional information

General

Certification CE, FCC, CCC, IEC-61850-3, IEEE-1613, UL, CB
Power Requirements
  • 2 x hot-swappable Redundant Power Supply Max. 800W
  • Power1: 100 ~ 240 VAC/ VDC
  • Power2: 100 ~ 240 VAC/ VDC
Dimensions (W x D x H) 440 x 460 x 88 mm
Enclosure SECC and aluminum
Weight 10.0 Kg
Mounting 2U Rackmount
Cooling
  • 6 x 30 x 38 mm hot swap high speed fan
  • Two separate thermal zones for motherboard and PCIe cards
  • Resilient to single fan failure on 25 °C

System Hardware

CPU Compatible with Intel® Xeon® Processor Scalable Family (To be assemlem in Advantech CTOS center)
Chipset Intel® C622 chipset
Memory
  • Up to 12 x 2400/2666MHz DDR4 ECC Standard ECC
  • RDIMM/LRDIMM
  • Max capacity per channel: 64GB
  • Max total capacity per system: 768GB
Storage
  • 4 x 2.5" hotswap SATA HDD (RAID0, RAID1, RAID5, RAID10)
  • 1 x M.2 2280 SATA SSD
  • HDD Height less than 11mm
Display 1 x DB15 VGA, 2 x DVI-I (Resolution: 1920 x 1080)
Watchdog Timer Programmable 256 levels time interval, from 1 to 255 seconds for each tier
System Management IPMI Aspeed AST2500 BMC

Communication Interface

LAN 4 x 10/100/1000 Base-T RJ45 ports (Supports teaming function, PXE)
USB 3 x USB3.0
Expansion
  • 2 x standard PCIe x16 Slot Gen3 low profile
  • 1 x standard PCIe x8 Slot Gen3 low profile
  • 1 x standard PCIe x4 Slot Gen3 low profile
  • Mini PCIE x1
  • 1 x PCIe + PCI interface for ECUP card extension

Environment

Operating Temperature -20 ~ up to 60 °C Depends on CPU model and configuration
Non-operating Temperature -40 ~ 85 °C
Operating Humidity 5 ~ 95% RH (non-condensing)
Storage Humidity 5 ~ 95% RH (non-condensing)
