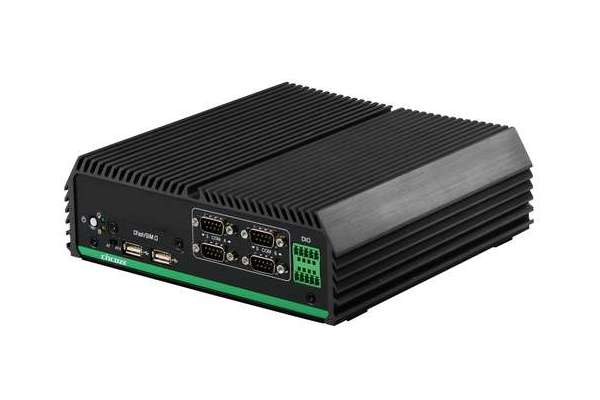

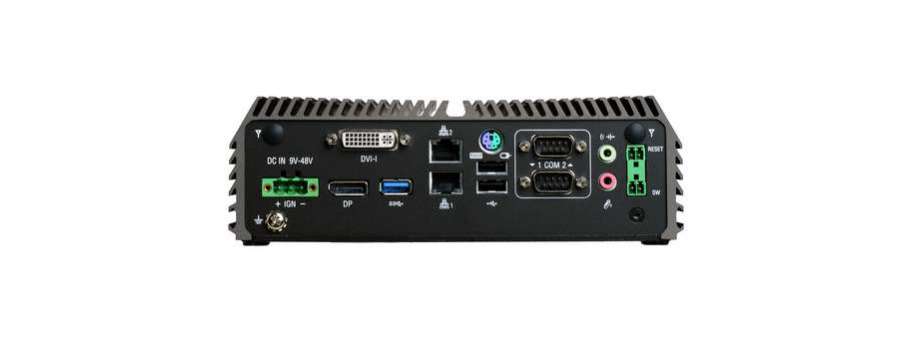

Power Efficient Fanless Computer on Intel® Atom™ E3845 Quad Core Cincoze DE-1000

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability. Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card. Supporting power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc. DE-1000 series supports wide temperature range from -25°C to 70°C, wide range 9~48VDC power input, power protection, cable-less and one-piece housing design, as well as compliant with 50121-3-2 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.

  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 2x DDR3L SO-DIMM Max. up to 8GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE Port, Support Wake-on-Lan and PXE
  • 1x USB 3.0, 4x USB 2.0
  • 6x RS232/422/485 Port with 5V/12V Power
  • 4x Isolated DI, 4x Isolated DO
  • 2x 2.5” SATA SSD/HDD Bay, 1x mSATA (Shared by Mini-PCIe Socket), 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input, Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi, GSM, or I/O Expansion
  • Power Ignition
  • EN50121-3-2 Certified/ EN62368-1

Additional information

Processor Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz with AMI 64Mbit SPI BIOS
Memory 2x 204-Pin DDR3L 1066 / 1333MHz SO-DIMM (un-buered and non-ECC), Max. up to 8GB
Graphics
  • Intel® HD Graphics Max. 792 MHz
  • Support Dual Display
  • 1x DVI and 1x DisplayPort
  • 1x DVI-D and 1x VGA (with optional split cable)
  • 1x DisplayPort and 1x VGA (with DVI-I to VGA adapter)
Storage
  • 2x 2.5” SATA HDD Bay
  • 1x Internal mSATA Slot (Shared by Mini-PCIe Socket)
  • 1x External CFast Socket
  • 1x External SIM Card Socket

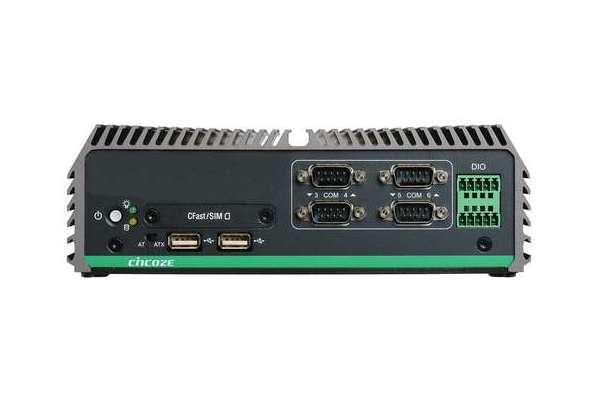

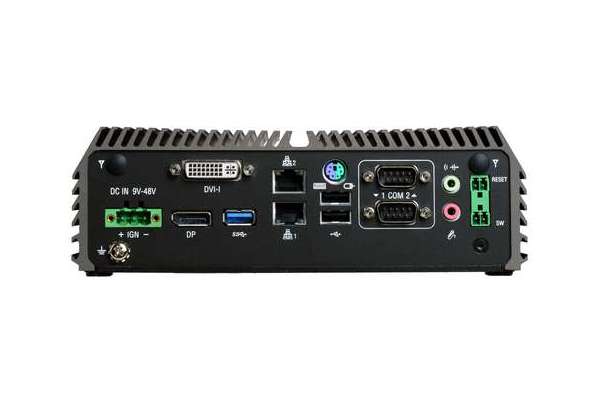

External I/O Interface
  • 1x DVI-I
  • 1x DisplayPort
  • 2x GbE LAN Port (Intel® i210, Support Wake-on-LAN and PXE)
  • 1x Mic-in and 1x Line-out (Codec: Realtek ALC888S)
  • 1x USB 3.0 Port
  • 4x USB 2.0 Port
  • 1x 4 Isolated DI & 4 Isolated DO Port
  • 6x COM (DB9, RS232/422/485 with Auto Flow Control)
  • 1x PS/2 Port • 2x Antenna Hole
  • 1x Power Switch
  • 1x AT/ATX Switch
  • 1x Remote Power Connector and Reset Connector
Expansion 2x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Requirement
  • Support AT/ATX Power Mode
  • Power Input Voltage 9~48VDC
  • One 3-pin Terminal Block Connector
  • Optional Power Adapter AC/DC 12V/5A 60W
Physical
  • Dimension: 203mm (W) x 200mm (D) x 65mm (H)
  • Weight: 2.84 kg
  • Construction: Aluminum Chassis with Fan-less Design
  • Mounting: Wall Mounting (Optional Side/VESA/DIN-Rail Mounting
  • Cable-less Design
Environment
  • Operating Temperature: -25°C to 70°C (ambient with air flow; with Industrial Grade Peripherals)
  • Storage Temperature: -30°C to 85°C
  • Relative Humidity: 10%~95% (non-condensing)
  • Shock: 50 Grms (With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
  • Vibration: Random: 5 Grms (With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
Digital Input & Output
  • 4x Digital Input (Source Type) - Input Voltage (Dry Contact): Logic 0: Close to GND Logic 1: Open - Input Voltage: Logic 0: 3V max. Logic 1: 5V min. (DI to COM-)
  • 4x Digital Output - Supply Voltage: 9~30VDC - Sink Current: 580 mA Max. Per Channel
Certification
  • EMC: CE, FCC Class A, EN50121-3-2
  • Safety: LVD(EN62368-1)
Operating System
  • Windows® 10
  • Windows® 8
  • Windows® Embedded 8 Standard
  • Windows® 7
  • Windows® Embedded Standard 7
  • Linux: Supports by Project
