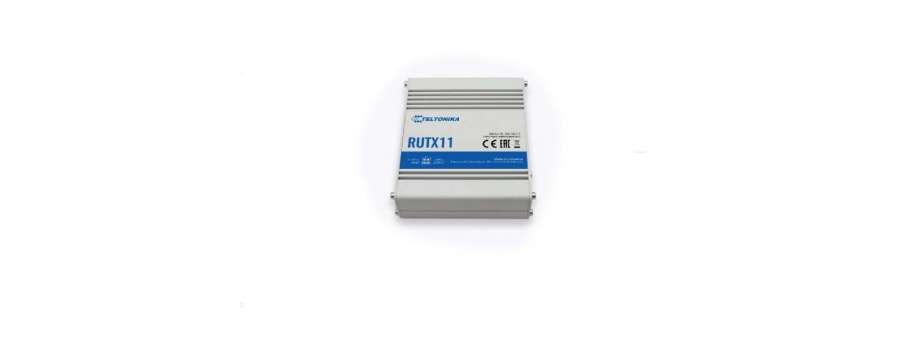

Router RUTX11

Powerful LTE Cat 6 router Teltonika RUTX11 Wi-Fi 2,4 & 5, GPS, 3x LAN ports

Networks and Communications >> Cellular Routers & Gateways

 Price and avalability

Manufacturer: Teltonika

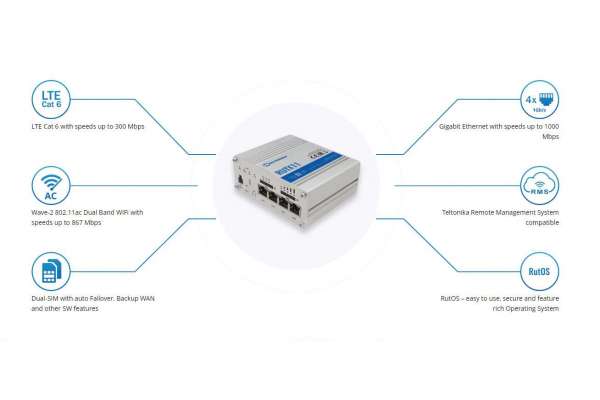

RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.

Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.

User Manual

Price and avalability

Partnumber Description Price VAT incl Avalability
RUTX11000000 Teltonika RUTX11 - LTE маршрутизатор на 2 SIM, із Wi-Fi 2,4 та 5 ГГц, 4 порти Gigabit Ethernet, GPS, в комплекті антени із кабелем та блок живлення.  10 150,9 Доступно

Additional information

MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned)
ETHERNET
WAN 1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
BLUETOOTH
Bluetooth 4.0 Bluetooth low energy (LE) for short range communication
MODBUS
Modbus TCP slave ID range 1-255
Modbus TCP master Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
USB
Data rate USB 2.0
Applications Samba share, custom scripts (planned)
External devices Possibility to connect external HDD, flash drive, additional modem, printer (planned)
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1x Digital Input
Output 1x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption 16 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

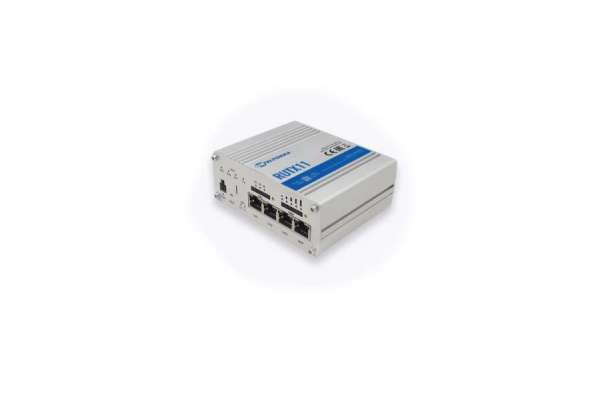

Ethernet 4x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 3x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 4x WAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs
SIM 2x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin DC connector

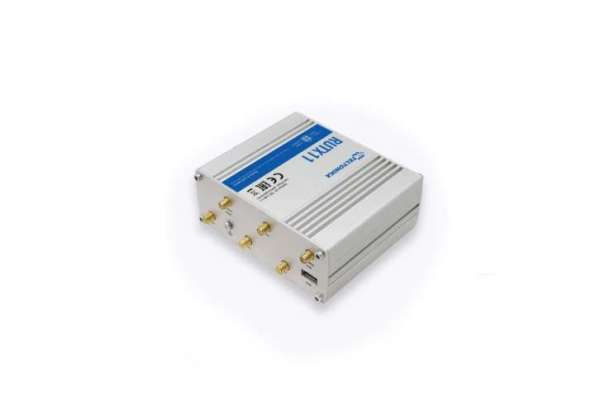

Antennas 2x SMA for LTE, 2x RP-SMA for WiFi, 1x RP-SMA for Bluetooth, 1x SMA for GNNS
USB USB A port for external devices
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
SAFETY
Standards IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017
