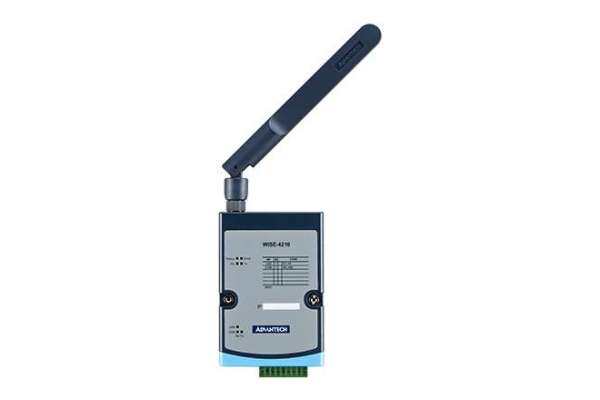

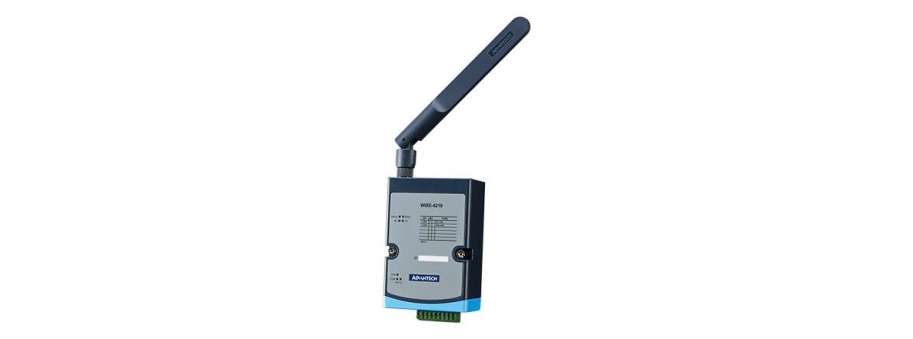

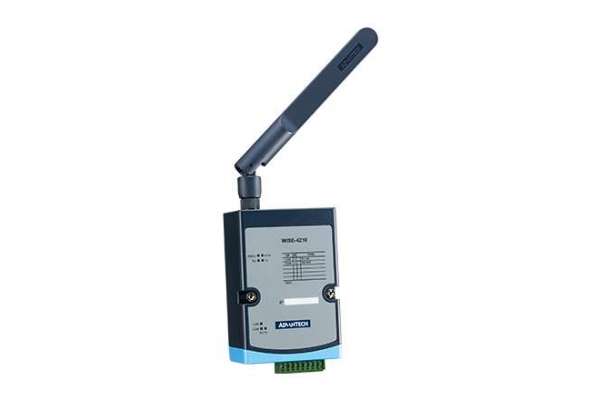

Proprietary LPWAN/SUB-G Wireless I/O Module Advantech WISE-4210-AP
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-4210-APNA | Бездротовий модуль введення/виведення Advantech WISE-4210, LPWAN IoT WSN Access Point | 12 962,2 | |
| WISE-4210-APUA | Модуль ввода-вывода LPWAN IoT WSN Access Point - UN433 | 101,4 |
WISE-4210 wireless sensor node and AP series utilize proprietary LPWAN (Low-Power Wide-Area Network) wireless communication technology. Comparing with traditional 2.4G Wi-Fi, Sub-1GHz LPWAN can provide better connection and eliminate network interference. A WISE-4210-AP can organize a LPWAN network with 64 WISE-4210-S200 series nodes paired by star topology. Moreover, WISE-4210-AP supports MQTT and RESTful API IoT protocol for cloud integration as well as pre-integrating Azure IoT Hub for automatically pushing data to the cloud without requiring any gateway.
- Proprietary LPWAN using sub-1GHz wireless frequency
- Longer communication range than 2.4GHz
- Better penetration through concrete and steel than 2.4GHz
- Less interference than 2.4GHz spectrum
- Support up to 64 sensor node clients
- MQTT and RESTful API IoT Protocol Support
- Azure IoT Hub Support
Additional information
Product Specifications
| Part Number | WISE-4210-APNA/ WISE-4210-APUA |
| Wireless Interface | |
| Data Rate | 625 bps, 2.5k bps, 5k bps, 50k bps |
| Frequency Band | 923MHz (920.60~924.60), BW: 400kHz; 868MHz (865.00~869.00), BW: 400kHz; 433MHz (433.05~434.55), BW: 300kHz |
| IEEE Standard | 625bps: IEEE 802.15.4g FSK Modulation; 50kbps: IEEE 802.15.4g GFSK Modulation |
| Network Capacity | 64 clients |
| Outdoor Range | 625bps: 5 km with line of sight (with 2 dBi antenna); 50kbps: 2 km with line of sight (with 2 dBi antenna) |
| Topology | Star |
| Ethernet | |
| Connectors | RJ-45 |
| Protocol | |
| Messaging | Modbus/TCP, Modbus/RTU, REST, MQTT |
| Application | HTTP, HTTPS, SNTP, DHCP |
| Transport | TCP, UDP |
| Others | RESTful Web API in JSON format, Web Server in HTML5 |
| General | |
| Certification | CE (RED), FCC, IC, NCC, TELEC |
| Configuration Interface | Ethernet: RJ-45 (for configuration and data query); RS-485: Data+, Data- (for query node data) |
| Dimensions (W x H x D) | 70 x 112 x 38 mm |
| LED Indicators | Status, Error, Tx, Rx, Battery/Signal Level |
| Mounting | DIN 35 rail, wall, and stack |
| Power Input | 10 ~ 50 VDC |
| Environment | |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Operating Temperature | -25 ~ 70°C (-13~158°F) |
