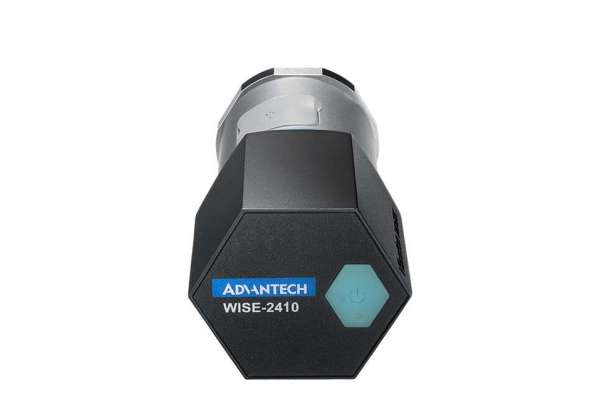

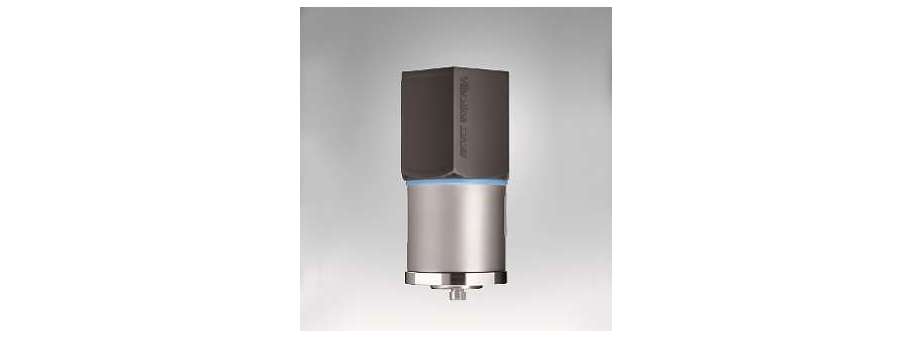

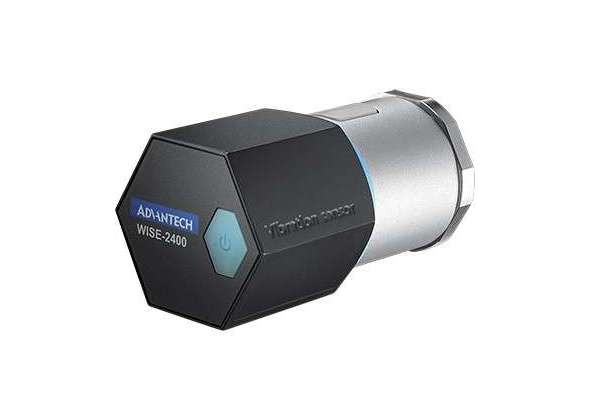

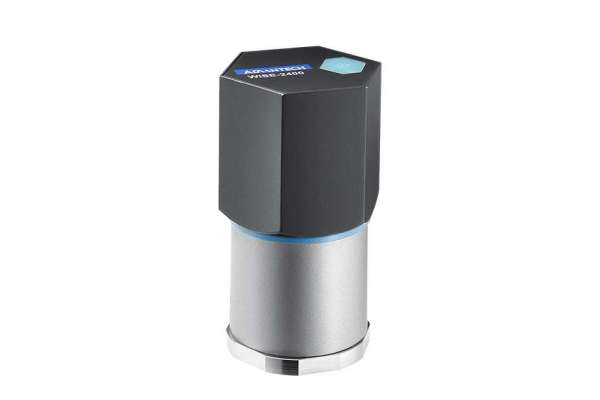

Smart Vibration Sensor Advantech WISE-2410

IP66 LoRa/LoRaWAN Wireless Smart Vibration Sensor Advantech WISE-2410

Signal input/output >> IIoT equipment

 Price and avalability

Manufacturer: Advantech Co., Ltd.

WISE-2410

  • Built-in vibration and temperature sensor
  • Directly transmit vibration feature value (e.g. Velocity RMS, g peak & RMS)
  • No power and communication wiring
  • LoRa/LoRaWAN wireless technology
  • Follow industrial standard installation
  • Compliant with ISO 10816
  • IP66

Price and avalability

Partnumber Description Price VAT incl Avalability
WISE-2410-EA Вібродатчик Advantech WISE-2410, Smart Vibration Sensor  10 828,7

Additional information

Specification


Wireless Communication
Frequency Band EU 863-870 (MHz)
Spreading Factor 7~12
Transmit Power Up to 20dBm
Topology star (LoRa/LoRaWAN)
Sensitivity -148dB
Data Rate

50 kbps at FSK mode EU868



General
Power Input 3.6V AA Battery *2pcs (Not included)
LED Indicator Power, Tx
Configuration Interface Micro-B USB
IP Class IP66
Mounting Stud mount, Mounting pad and adhesives
Dimension (H x D) 84.7 x 48.3 mm
Certification CE (RED), FCC, NCC
Environment
Operating Temperature -20~50°C
Operating Humidity 10~95% RH
Storage Temperature -25~70°C
Storage Humidity 5~95% RH
