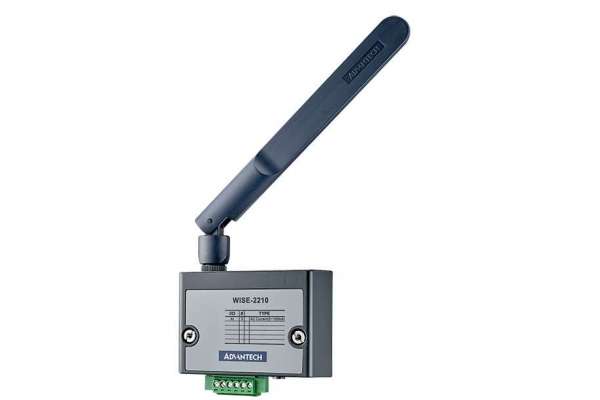

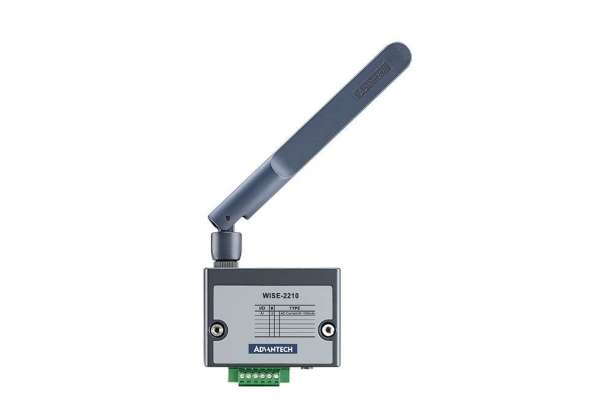

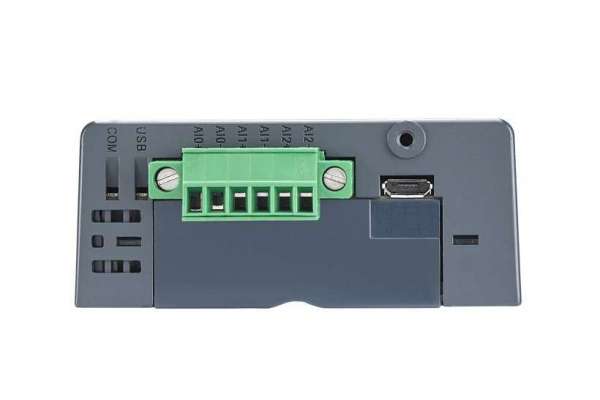

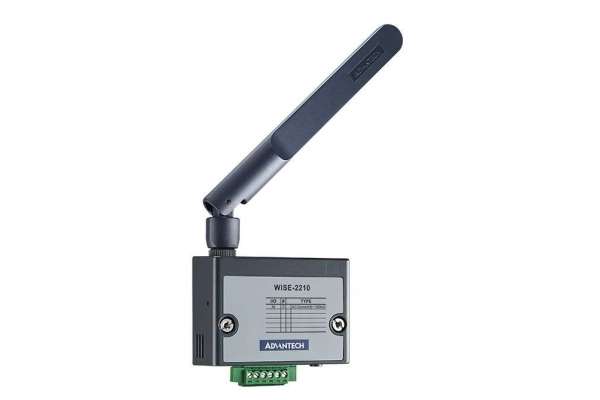

LPWAN Wireless Self-powered Sensor Node WISE-2210

LPWAN Wireless Self-powered Sensor Node & LPWAN Wireless Self-powered Sensor Node WISE-2210

Signal input/output >> IIoT equipment

 Price and avalability

Manufacturer: Advantech Co., Ltd.

WISE-2210 Directly measure equipment power current via CT (Current transformer, AC 0~100mA)

WISE-2211 Directly measure sensor data(DC, 4~20mA)

WISE-2210/2211

  • No power and communication wiring
  • Measure and transmit power current every minutes
  • Less interference and better penetration through concrete and steel, compared with 2.4GHz spectrum
  • Max. 3 AI channels for CT or sensors
  • MQTT and RESTful API IoT Protocol Support
  • Plug and play

Price and avalability

Partnumber Description Price VAT incl Avalability
WISE-2210-NA Беспроводный модуль ввода-вывода LPWAN Self powered Sensor module(for CT)  5 526,4
WISE-2211-NA Беспроводный модуль ввода-вывода LPWAN Self powered Sensor module(for Transmitter  5 526,4

Additional information

Specification


Wireless Communication
Frequency Band AS923: 923MHz (920.60~924.60), BW: 400kHz EU868: 868MHz (865.00~869.00), BW: 400kHz
Transmit Power Up to +12 dBm
Topology star (LoRa/LoRaWAN)
Data Rate

625bps / 2.5k bps / 5K bps / 50K bps


General
Power Input Power source is from AI Channel  WISE-2211: AC, 0~100mA WISE-2210: DC, 4~20mA
Configuration Interface Micro-B USB
Mounting DIN 35 rail, wall, pole
Dimension (H x D) 71 x 52 x 30 mm (without Antenna)
Certification CE (RED), FCC, NCC
Environment
Operating Temperature -20~70°C
Operating Humidity 5~95% RH
Storage Temperature -40~80°C
Storage Humidity 0~95% RH
