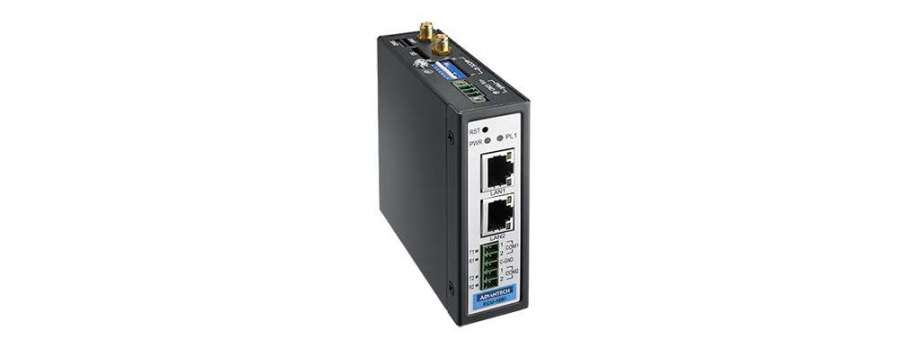

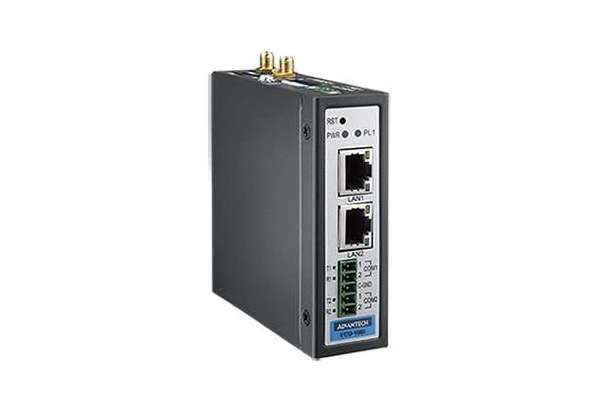

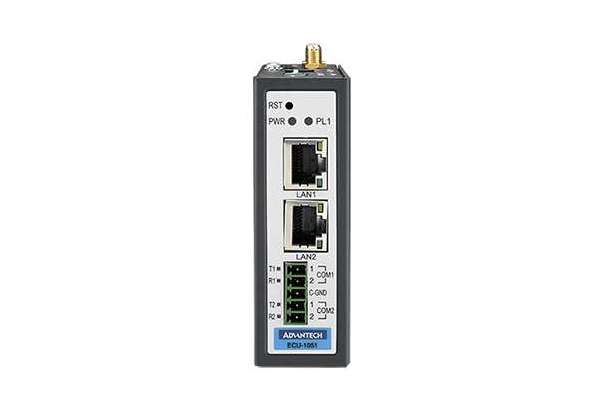

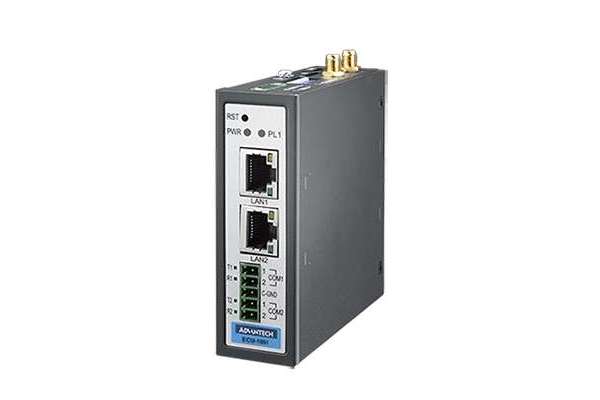

Intelligent Gateway for IIoT application ECU-1051

Intelligent Communication Gateway for IIoT application ECU-1051

Signal input/output >> IIoT equipment

 Price and avalability

Manufacturer: Advantech Co., Ltd.

For facility monitoring, distributed solar power, smart factory sector, especially cloud based applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1051TL RISC-based industrial communication gateway. ECU-1051TL has an open platform design with Cortex A8 processor, two 10/100 Ethernet ports and operating temperature range of -40~70°C. With Linux operating system and open WISE-PaaS/EdgeLink SDK, which enable to system integrators to develop applications which precisely fit their need.

  • TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
  • Support web service for remotely on-line monitoring
  • Firmware update by SD card and online update
  • Data logger on SD card
  • Support dual SIM slots for communication redundant
  • Support MQTT Client for cloud communication
  • Wide Operating temperature: -40 ~ 70°C

Price and avalability

Partnumber Description Price VAT incl Avalability
ECU-1051TL-R10AAE Пристрій для звязку з об'єктом Advantech ECU-1051 w/ TagLink  7 240,6

Additional information

Part Number

ECU-1051TL-R10AAE

Communications



Ethernet Port

2 x 10/100 Base-T RJ-45 ports

Serial Port Speed

RS-232/RS-485: 50 ~ 115.2 kbps

Serial Ports

2 x RS232/RS485(isolation optional)

Wireless (Optional)

Interface: 1x Mini-PCIe (Full-size);Type:WIFI/3G/GPRS/4G;Signal: USB

Environment



Humidity

5 ~ 95%, non-condensing

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)

Temperature (Operating)

-40~70°C

Software



Configuration

Advantech TagLink Studio

OS Support

RT-Linux 3.12

System



SD Slot

1 x Micro-SD slot

System Hardware



Indicators

LEDs for Power, LAN(LINK, ACT),Serial (Tx, Rx), Programmable

Real-time Clock

Yes

Storage

512MB NAND Flash

Watchdog Timer

Yes

CPU

TI Cortex A8, 600MHz

Memory

DDR3L 256MB

General



Certification

CE, FCC

Mounting

Wallmount, DIN-rail

Power consumption (typical)

2.4W @ 24VDC

Power Requirements

10 ~ 30 VDC
