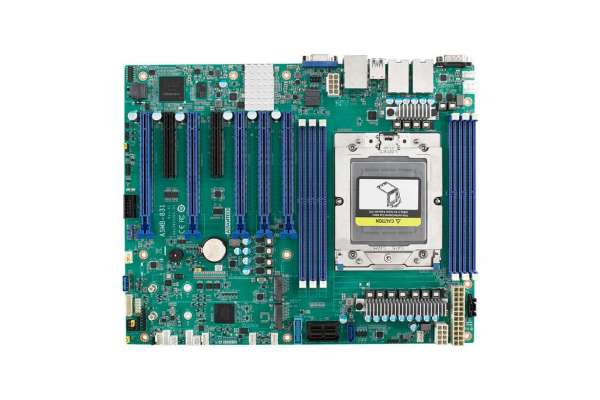

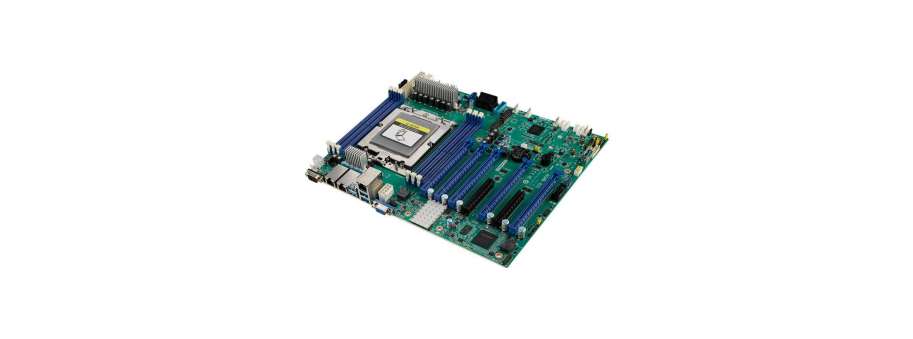

LGA 6096 AMD® EPYC™ 9004 ATX Server Board with 6 x DDR5, 5 x PCIe x16 + 2 x PCIe x8, 9 x SATA3, 7 x USB 3.2 (Gen1), Dual 10GbE, and IPMI Advantech ASMB-831
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ASMB-831T2-00A1 | SP5 AMD ATX SMB w/9 SATA/5 PCIe x16/2 10GbE/IPMI | 77 177,9 |
- LGA 6096 (Socket SP5) ATX server board with AMD® EPYC™ 9004 processor
- DDR5 4800 MHz RDIMM
- Five PCIe x16 (Gen5) and two PCIe x8 (Gen5) for four double-deck cards
- Intel® X710-AT2 dual 10GbE ports
- Nine SATA3 and seven USB 3.2 (Gen1) ports
- Two M.2 2280/22110 (SATA / PCIe compatible)
- 0 ~ 60 °C/ 32 ~ 140 °F ambient operating temperature range
Additional information
| Form Factor | ATX form factor |
Processor System |
|
| Socket | AMD LGA 6096 (Socket SP5) |
| CPU type | AMD EPYC™ 9004 processors (CPU cooler should be purchased separately) |
Memory |
|
| Total slots | 6x (1 DIMM per channel) |
| Capacity | Maximum 384GB ECC RDIMM |
| Memory type | DDR5 ECC-REG 3600/4000/4400/4800 MHz RDIMM |
| Memory size | 16 GB, 32 GB, 64 GB (RDIMM) |
Expansion Slots |
|
| Total PCI/PCI-X/PCIe slots | 7 |
| Slot location 1 | PCIe x16 slot (Gen5 x16 link) |
| Slot location 2 | PCIe x8 slot (Gen5 x8 link) |
| Slot location 3 | PCIe x16 slot (Gen5 x16 link) |
| Slot location 4 | PCIe x8 slot (Gen5 x8 link) |
| Slot location 5 | PCIe x16 slot (Gen5 x16 link) |
| Slot location 6 | PCIe x16 slot (Gen5 x16 link) |
| Slot location 7 | PCIe x16 slot (Gen5 x16 link) |
Graphics |
|
| VGA | ASPEED AST2600 |
Storage |
|
| SATA controller | AMD EPYC™ CPU integrated: Eight (via Mini-SAS HD SFF-8643) + one SATA3 |
| SAS controller | - |
Networking |
|
| GbE/10GbE LAN | Intel® X710-AT2 (dual 10GbE ports) |
Onboard I/O Connector |
|
| PSU connector | 24-pin SSI power connector + 2 x 8-pin SSI 12V power connector + 1 x 4-pin SSI 12V power connector |
| USB connector | 2 x USB 3.2 Gen1 ports (one onboard header) + 1 x Type-A USB 3.2 Gen1 port |
| Fan header | 6 x 4-pin (5 for system + 1 for CPU) |
| M.2 | 1 x M.2 2280/22110 (PCIe Gen4 / SATA) + 1 x M.2 2280/22110 (PCIe Gen4 only) |
| SMBus | 1 |
| Chassis intruder | 1 |
| Front LAN LED | 1 |
| Audio Header | - |
| PS/2 KB/Mouse header | - |
| Serial port header | - |
Rear I/O Connector |
|
| External serial port | 1 |
| External USB port | 4 (USB 3.2 Gen1) |
| VGA port | 1 |
| RJ-45 | 3 (1 port dedicated LAN and 1 port shared LAN for IPMI function) |
| PS/2 Keyboard/Mouse | - |
| Infiniband | - |
Management Solution |
|
| Software | - |
| Out of band remote management | Yes |
Monitoring |
|
| CPU temperature | Yes |
| System Monitoring | Yes |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec/min |
Power Requirement |
|
| Power On | 3.3V / 5V / 12V / 12V_8P_1 / 12V_4P_1 |
| (210W CPU@2.6GHz DDR5-2666 64G*6) | 2.976A / 3.264A / 0.616A / 15.72A /6.876A |
Environment |
|
| Temperature |
|
| Humidity |
|
Physical Characteristics |
|
| Dimension (L x H) | 304 x 244 mm (12 x 9.6 in) |
