Intel® Elkhart Lake Atom® x6000E Series Processor Slim Embedded Computer with CDS Technology Сincoze P1201

Price and avalability

Partnumber Description Price VAT incl Avalability
P1201-X6425E-R10 Компактний комп'ютер Cincoze P1201-X6425E-R10, Intel Atom X6425E, PC Module with 4x USB, 3x RS-232/422/485, 2xLan, 1x VGA, 1x DisplayPort, 8x Isolated DIO (4x DI/4x DO)  42 157,4 Доступно
P1201-X6211E-R10 Компактний комп'ютер CincozeP1201-X6211E-R10, Intel Atom X6211E, PC Module with 4x USB, 3x RS-232/422/485, 2xLan, 1x VGA, 1x DisplayPort, 8x Isolated DIO (4x DI/4x DO)  39 611,5 Доступно

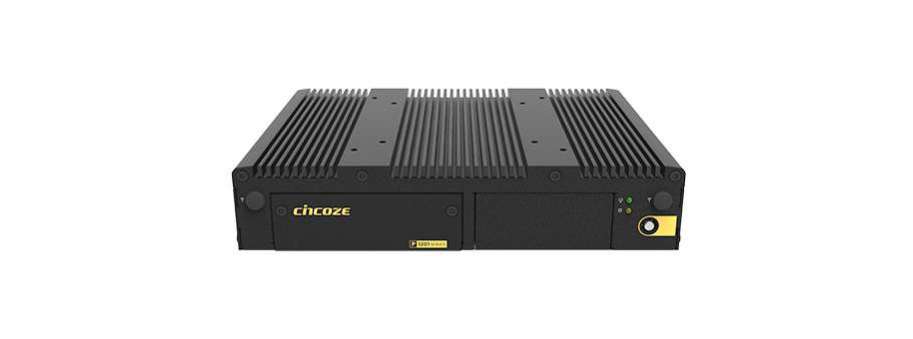

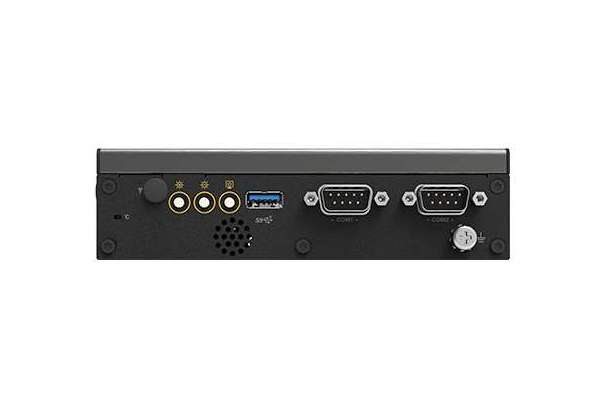

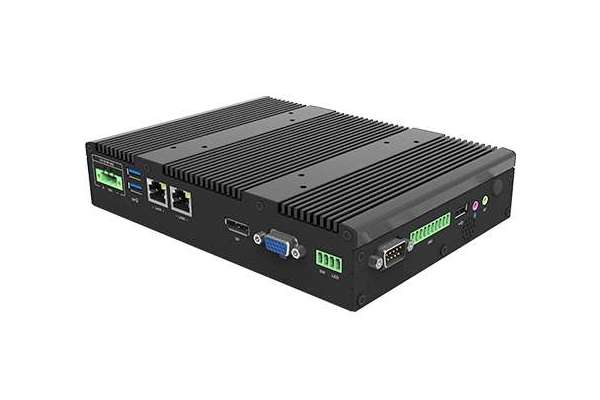

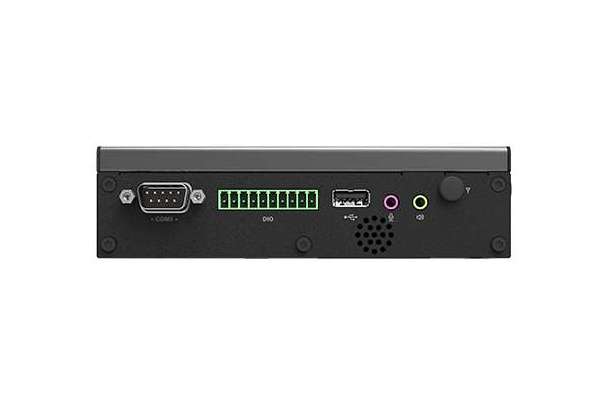

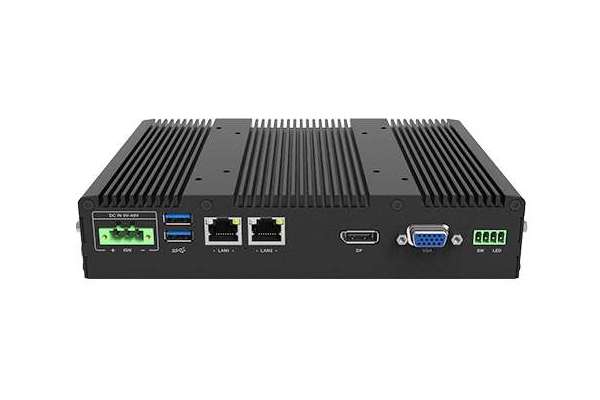

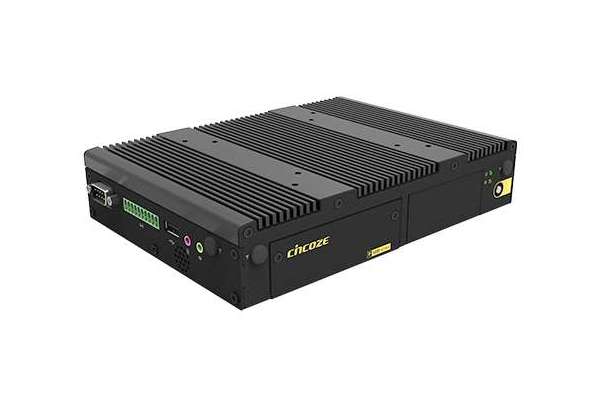

The P1201 is an Intel® Elkhart Lake Atom® processor-equipped, ultra-thin, fanless embedded computer for IoT edge computing. It offers flexible expansion with a rich assortment of native I/O ports, Mini PCIe and M.2 Key E Type 2230 slots, and an exclusive CFM slot to add functions such as PoE or IGN. The chassis measures only 41.5 mm, making it suitable for installation in narrow space-limited applications. “One computer / Two purposes” is the P1201’s crowning feature. The patented Convertible Display System (CDS) enables the addition of one of a selection of display modules to convert the P1201 from an embedded computer to an industrial panel PC, sunlight-readable panel PC, or open-frame panel PC, satisfying diverse display computing needs.

  • Intel® Elkhart Lake Atom® x6425E/x6211E Processor
  • 1x DDR4 SO-DIMM
  • 1x M.2 Key E Type 2230 Socket for Intel® CNVi/Wireless Module
  • CFM Technology for Power Ignition Sensing Function and PoE Function
  • Cincoze Patent CDS Technology Support (Patent No. M482908)
  • EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
  • Safety Certification: UL, cUL, CB 62368-1

Additional information

System

Processor
  • Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W)
  • Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W)
Memory
  • 1x DDR4 SO-DIMM Socket
  • Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC)
BIOS AMI BIOS

Graphics

Graphics Engine Integrated Intel® UHD Graphics
Maximum Display Output Supports Triple Independent Display
CDS 1x CDS Connector (1920 x 1080 @60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz
VGA 1x VGA Connector (1920 x 1200 @60Hz)

Audio

Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O

LAN

2x 1GbE LAN, RJ45

- GbE1: Intel® I210

- GbE2: Intel® I210

COM 3x RS-232/422/485 with Auto Flow Control, DB9
USB
  • 3x 10Gbps USB 3.2 Gen2, Type A
  • 1x 480Mbps USB 2.0, Type A
DIO 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block

Storage

SSD/HDD 1x 2.5” Front Accessible SATA HDD/SSD Drive Bay ( SATA3.0 )
mSATA 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)

Expansion

Mini PCI Express 1x Full-size Mini-PCIe Socket
SIM Socket 1x SIM Socket
M.2 1x M.2 Key E Type 2230 Socket, Support Intel® CNVi/Wireless Module
CFM (Control Function Module) Interface
  • 1x CFM IGN Interface for optional CFM-IGN Module Expansion
  • 1x CFM PoE Interface for optional CFM-PoE Module Expansion
CDS (Convertible Display System) Interface 1x CDS Interface for Convertible Display Module

Other Function

Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
OSD Button LCD On/Off, Brightness Up, Brightness Down
Internal Speaker AMP 2W + 2W
Status LED Indicator Power LED, HDD LED, Temperature LED

Power

Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/O, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block

Operating System

Windows Windows® 10
Linux Supports by project

Physical

Dimension ( W x D x H ) 204.5 x 149 x 41.5 mm
Weight Information 1.54 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Reliability & Protection

Reverse Power Input Protection Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3

Environment

Operating Temperature

-40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN61000-6-4, EN61000-6-2 (24VDC Input Only)
Safety UL, cUL, CB, IEC/EN 62368-1
