Compact Embedded Edge Controller with 10th Gen Intel® Processor, up to 3 x PCIe/PCI slots, 1 x M.2 B-Key, 1 x mPCIe, and 2 x 2.5" SSD Advantech UNO-348

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-348-ANN1A Компактний промисловий комп'ютер Adavntech UNO-348 H420E, 3*COM, 6*USB, 3*LAN, 1*PCIex16  49 891,8
UNO-348-ANN3A Компактний промисловий комп'ютер Adavntech UNO-348 H420E,3COM,6USB,3LAN,1PCIex16,2PCI  54 126,5

UNO-348 is a high-performance, fanless, embedded edge controller equipped with a 10th gen. Intel® Core™ i5/i9 processor with 8/16 GB DDR4 memory and Intel® H420E PCH chipset. Despite its compact size, UNO-348 offers multiple I/O including 4 x USB 3.2, 2 x USB 2.0, 3 x GigaLAN, 2 x RS-232/422/485, and 1 x RS-232 ports, as well as 1 x Line-out, 1 x Mic-in, 1 x DisplayPort, and 1 x HDMI interfaces. Designed to deliver high-performance computing and maximum flexibility for industrial automation applications, UNO-348 also features 2 x internal HDD/SSD bays, 1 x full-size mPCIe, 1 x M.2 B-key, and up to 3 x PCIe/PCI expansion slots (1 x PCIe x16, 2 x PCI) to support the integration of optional peripherals. In addition to dual power inputs that ensure a stable power supply, UNO-348 is equipped with Advantech’s iBMC technology to support remote OOB power management to reduce system downtime and operational costs.

  • 10th gen Intel® socket-type processor with DDR4 memory
  • Scalable processor and RAM memory options
  • Compact, rugged, fanless design for harsh embedded environments
  • Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe, and 2 x 2.5” SSD
  • Optional iDoor expansion
  • Remote out-of-band (OOB) power management with Advantech’s iBMC technology
  • Built-in TPM2.0 for hardware-based security

Additional information

General

Certification CB/UL, CE/FCC Class A, CCC, BSMI

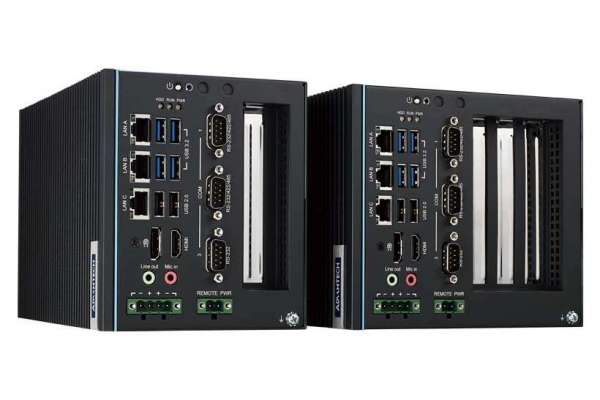

Dimensions (W x D x H)

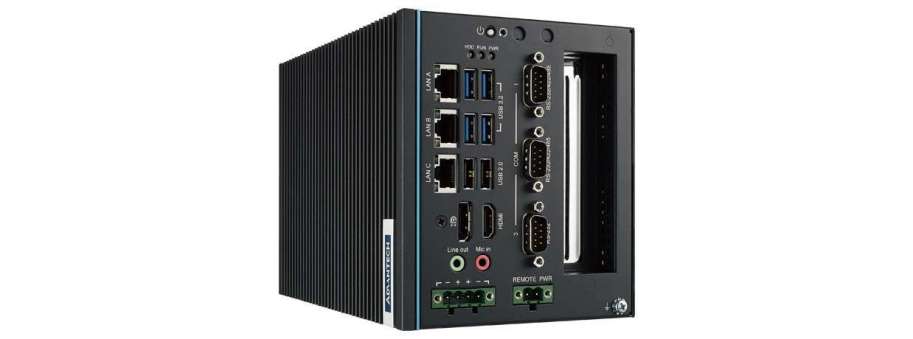

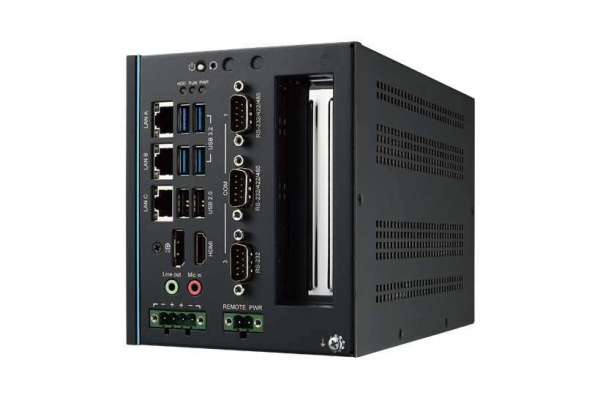

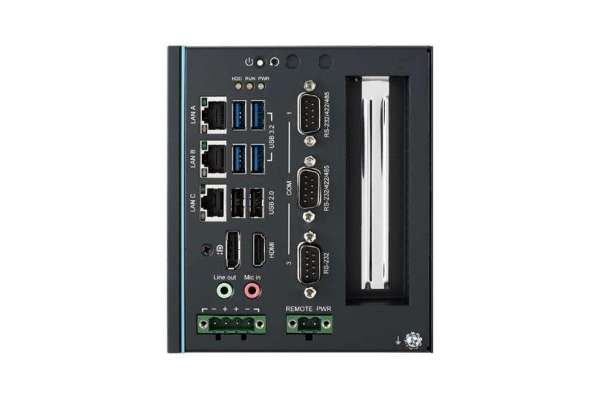

  • UNO-348-AXX1A: 200 x 140 x 120 mm/7.8 x 5.5 x 4.7 in

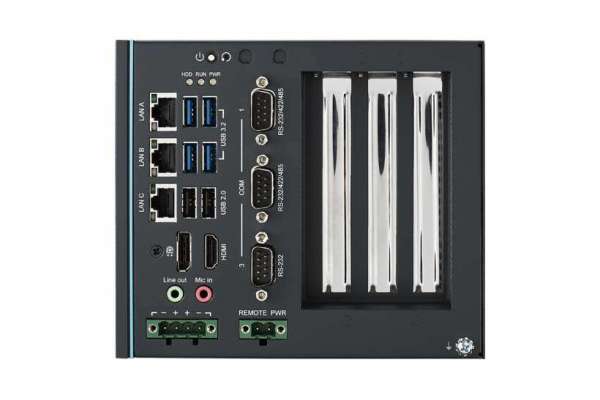

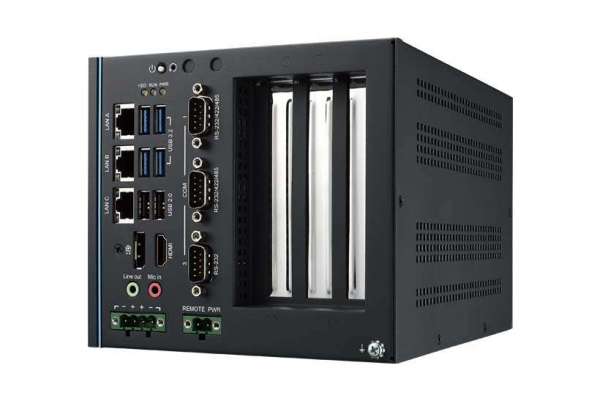

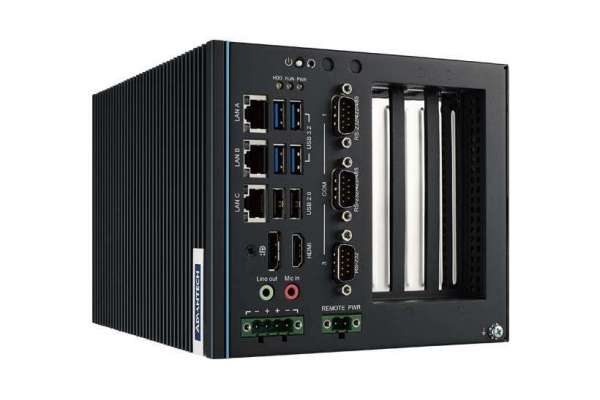

  • UNO-348-AXX3A: 200 x 140 x 160 mm/7.8 x 5.5 x 6.3 in
Form Factor Regular
Mounting Wall, stand
Weight (Net)
  • UNO-348-AXX1A: 3.5 kg/7.7 lb
  • UNO-348-AXX3A: 4 kg/8.8 lb
Power Requirements 10 ~ 36 VDC Note: Power should be fixed at 24VDC (± 20%) when total power consumption exceeds 160W
Power Consumption
  • 59W (typical),100W (Max)
  • When equipped with PCI/PCIe card: UNO-348-AXX1A: up to 174.1W UNO-348-AXX3A: up to 224.1W
  • Note: PCIex16 slot supports up to 75W PCIex4 slot supports up to 25W PCIex1 slot supports up to 10W PCI slot supports up to 25W
OS Support Windows 10 2019 LTSC, Windows 11, AdvLinux (Ubuntu 18.04)

Hardware

BIOS AMI UEFI (128 Mbit)
Hardware Security TPM2.0
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
Processor*
  • Intel® Core™ i5-10500TE, 2.3 GHz, 6 cores
  • Intel® Core™ i9-10900TE, 1.8 GHz, 10 cores
Chipset Intel® H420E (W480E available upon request)
Memory*
  • i5 CPU: Built-in 8 GB DDR4, 2933 MHz, dual sockets support up to 64 GB
  • i9 CPU: Built-in 16 GB DDR4, 2933 MHz, dual sockets support up to 64 GB
Graphics Engine Intel HD Graphics
Ethernet
  • LAN A: Intel® i210-AT GbE, IEEE 802.3AZ/802.1AS
  • LAN B: Intel® i210-AT GbE, IEEE 802.3AZ/802.1AS (Support iBMC)
  • LAN C: Intel® i219-LM GbE, IEEE 802.3AZ/802.1AS
LED Indicators 1 x Programmable LED, 1 x power LED, 1 x HDD LED, and 1 x LAN (active, status)
Storage/Expansion
  • 2 x 2.5" SSD/HDD bay (RAID is only supported by W480 chipset version upon request)
  • 1 x M.2 B key (SATA/ USB 3.0 signal) for 2242/2280 SATA SSD or 3042/3052 LTE/5G module expansion
  • 1 x Full-size mPCIe (PCIe/ USB2.0 signal)
  • UNO-348-AXX1A: 1 x PCIex16,
  • UNO-348-AXX3A: 1 x PCIex16, 2 x PCI

I/O

Serial Ports 2 x RS-232/422/485, 1 x RS-232. 50bps ~115.2 kbps (DB9)
LAN Ports 3 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
USB Ports 4 x USB 3.2 Gen 1, 2 x USB 2.0 (Type A)
Displays
  • 1 x DP 1.4 , supports , 4096 x 2304 @ 60Hz (DP++)
  • 1 x HDMI 1.4, supports 4096 x 2160 @ 30Hz
Audio Mic-in, Line-out (Line-out can be configured as Line-in upon request)
Power Connector 1 x 4-pin terminal block
Remote Power Control 1 x 2-pin terminal block that supports remote Power On/ Off function (can support remote reset function via jumper settings)
GPIO 1 x GPIO (8 bit) internal pin header
Environmental
Operating Temperature -20 ~ 50 °C/-4 ~ 122 °F with 0.7m/s airflow
Storage Temperature -40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity Relative Humidity
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection Operating, IEC 60068-2-64, 4 Grms, random, 5 ~ 500 Hz, 1hr/axis (SSD)
Ingress Protection IP20
