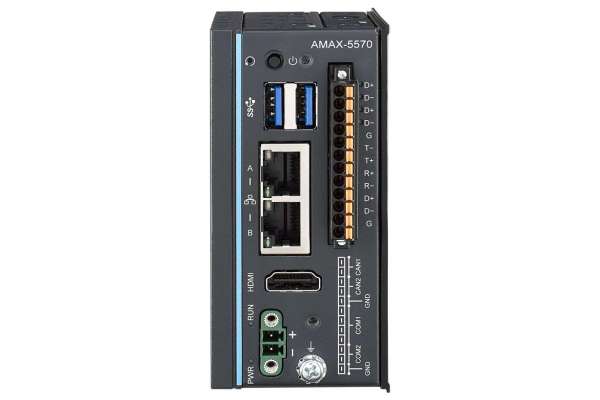

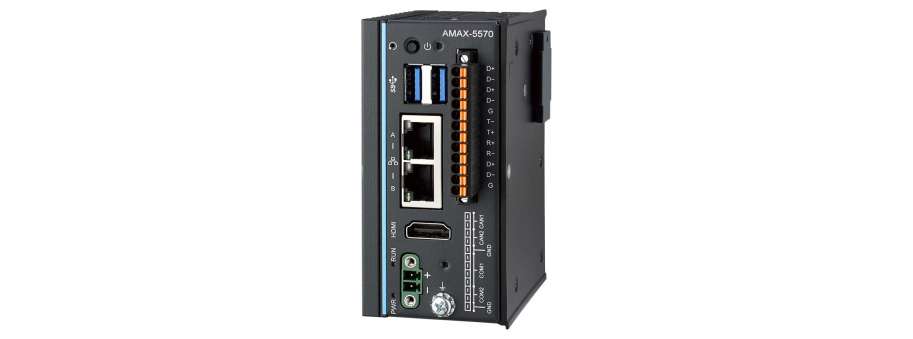

Ultra Compact PC Advantech AMAX-5570

Industrial Platform with Intel Atom Processor, 64GB eMMC, 2 x LAN, 2 x USB, 2 x CAN, 2 x COM, and Slice IO expansion Advantech AMAX-5570

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
AMAX-5570-E2200A	x6413E, 4G RAM, 64G eMMC,2x LAN, 2x CAN, 2 x COM	68 088,8
AMAX-5570-E2300A	x6413E, 8G RAM, 64G eMMC,2x LAN, 2x CAN, 2 x COM	71 076,4

AMAX-5570 is specially designed for machine and equipment builders, with efficient Intel Atom® 4 core CPU series processors and optimized local expansion slots for general IT and OT applications. On board eMMC storage design minimizes the overall size and allows scalable local expansion with mPCIE and M.2 B key ports for further storage or wireless communication requirements. Extra Wi-Fi or cellular modules can be installed for uploading data to cloud servers/

• Intel® Atom® quad-core x6413E processor
• 4 GB DDR4 onboard memory
• 64GB eMMC on board storage
• Optimized I/O with 2 x GbE, 2 x USB, 2 x CAN, 2 x COM, 1 x HDMI
• AMAX-5000 EtherCAT Slice IO expansion
• Full-size mPCIE and M.2 B key slot expansion
• Dual industrial fieldbus communication for EtherCAT and CAN bus
• COM/CAN port Isolation design
• System Ground Isolation design
• IEC 61010 certified for industrial applications

Additional information

General
Certification	CE, FCC, UL, BSMI
Dimensions (W x D x H)	48.8 x 70 x 100 mm/1.9 x 2.8 x 3.9 in
Enclosure	Aluminum
Mount Options	DIN-rail
Net Weight	0.8kg/1.3lb
Power Requirement	24VDC
Power Consumption	15.8W (typical), 35W (max.)
Operating System	Windows 10 LTSC, ADV Embedded Linux (Ubuntu 20.04)
System Hardware
BIOS	AMI EFI X64
Watchdog Timer	Programmable timer with 255 intervals (1 ~ 255 sec)
Processor	Intel® Atom® x6413E quad-core, 1.5 GHz
Memory	4 GB DDR4 2666 MHz onboard
Graphics Engine	Intel® UHD Graphics
Ethernet	2 x Realtek RTL8119i GbE (LAN) 1 x Realtek RTL8119i GbE (Slice IO)
LED Indicators	Power, Run (programmable), LAN (Active, Status)
Storage	64 GB eMMC onboard mSATA shared with mPCIe slot 2242 SATA shared with M.2 B key
Expansion	1 x Full-size mPCIe slot (SATA/PCIe/USB2.0 signal) 1 x M.2 B key slot(SATA/USB3.0 signal) AMAX-5000 series IO module expansion (1A supply without power module)
Hardware Security	TPM2.0
I/O Interfaces
LAN	2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
Serial Port	1 x RS-232/422/485 and 1 x RS-485, 50bps~115.2 kbps (terminal block) Isolated voltage 2500VDC
CAN bus	2 x CAN port, Adjustment up to 1Mbps (terminal block) Hardware support CAN 2.0 A/B Linux support Socket CAN, advCAN Isolated voltage 2500VDC
USB	2 x USB 3.2 (Gen 1)
Display Output	1 x HDMI (1920 x 1080 @60Hz)
Power Connector	1 x 2-pin terminal block
Environment
Operating Temperature	-20 ~ 60 °C @ 5 ~ 85% RH with 0.7 m/s (without expansion) -20 ~ 55 °C @ 5 ~ 85% RH with 0.7 m/s (with mPCIe +M.2 Bey key+ AMAX-5000 expansion)
Storage Temperature	-40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity	Operating, 95% RH@40°C, Non-Condensing Non-Operating, 95% RH@60°C, Non-Condensing
Shock Protection	Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Resistance	Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis
IP Rating	IP20
