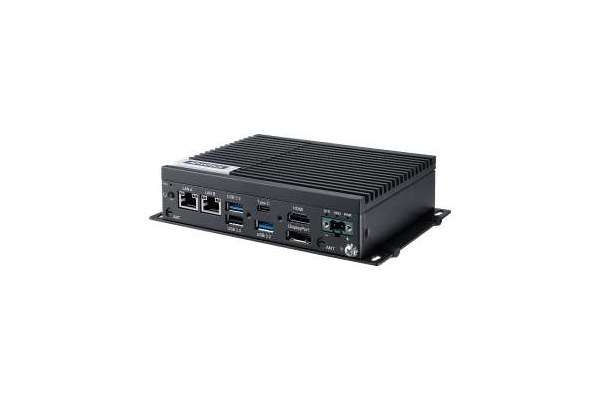

Modular fanless Embedded Box PC with Intel® Twin Lake N250 Processor 2 x GbE LAN 1 x HDMІ 1 x DP Advantech UNO-2372V3
- Intel® Twin Lake N250 quad-core processor with one DDR5 slot for memory
- Compact, robust, fanless and scalable system with high stability

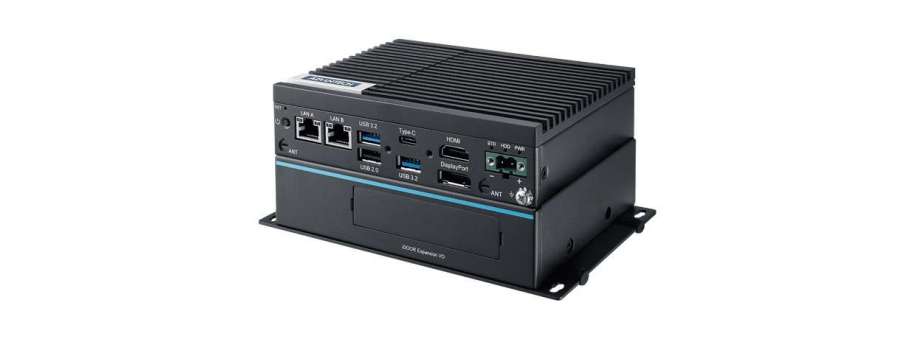

- Optional second stack for supporting extension iDoor module, including wireless connectivity, industrial fieldbus and more I/O ports
- Supports NVME storage with high data-transmission efficiency
Advantech’s UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. UNO-2372V3 features high processing capacity, 4K resolution display ports, optimized I/O ports, and expansion options to support wire/ wireless IoT edge data transmission and processing. With an optional second expansion stack which supports Advantech’s iDoor technology, system functionalities can be easily extended to satisfy specific application requirements.
Additional information
General |
|
| Certification | CE, FCC, UL, CCC, BSMI |
| Dimensions (W x D x H) | 150 x 105 x 38 (5.9" x 4.2" x 1.5") for single stack 150 x 105 x 75 (5.9" x 4.2" x 3") with second expansion stack |
| Form Factor | Small |
| Enclosure | Aluminum housing |
| Mount Options | Stand, Wall, VESA (optional), DIN rail (optional) |
| Weight (Net) |
|
| Power Requirement | 10 ~ 36 VDC |
| Power Consumption | 19W (Typical), 60W (Max) |
| OS Support | Microsoft® Windows 11 LTSC, Advantech Linux (Ubuntu 22.04) |
Hardware |
|
| BIOS | AMI UEFI (64 Mbit) |
| Watchdog Timer | Programmable timer with 255 intervals (1 ~ 255 sec) |
| Hardware Security | TPM2.0 |
| Processor | Intel Twin Lake N250 |
| Memory | 1 x DDR5 SODIMM slot (support up to 16G RAM) |
| Graphics Engine | Intel® UHD Graphics |
| Ethernet | 2 x GbE LAN 10/100/1000/2500 Mbps (Intel i226v) |
| LED Indicators | Power, RTC battery, LAN (active, status), and HDD |
| Expansion/Storage |
|
I/O |
|
| GPIO | 1 x GPIO 8 bit |
| Serial Ports | 2 x RS232/422/485, 50kbps~115.2kbps (COM1-2) |
| LAN | 2 x GbE LAN 10/100/1000/2500 Mbps (Intel i226v) |
| USB | Type-A: 2 x USB3.2 GEN 2, 1 x USB2.0 Type-C: USB3.2 Gen 2, DP1.4a Alt mode (3840x2160@60Hz) |
| Displays |
|
| Power Connector | 1 x 2-pin terminal block |
Environment |
|
| Operating Temperature | -20 ~ 60 °C/-4 ~ 140 °F with 0.7m/s airflow |
| Storage Temperature | - 40 ~ 85 °C/-40 ~ 185 °F |
| Relative Humidity | Operating, 95% RH @ 40° C, Non-Condensing Non-Operating, 95% RH @ 60° C, Non-Condensing |
| Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (SSD) |
| Ingress Protection | IP40 |
