Military T range

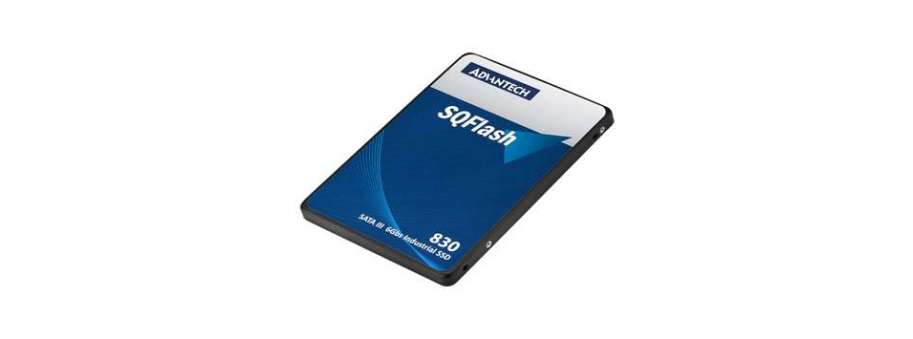

SQFlash 830 series industrial 2.5" SATA SSD Advantech SQF-S25 830

Price and avalability

Partnumber Description Price VAT incl Avalability
SQF-S25M8-512G-SAE Твердотільный диск/накопичувач SQF 2.5 SATA SSD 830 512G MLC (-40~85°C) [ES]  34 637,5 Доступно

Advantech SQFlash 830 series 2.5” SATA-SSD (SQF-S25 830) delivers all the advantages of Flash Disk technology with the Serial ATA III (6.0Gb) interface, fully compliant with standard 2.5-inch form factor. The SATA SSD is based on a standard SATA 7-pin interface for data segment and 15-pin for power segment, designed to operate at a maximum operating frequency of 300MHz with 30MHz external crystal. Its capacity could provide a wide range up to 2TB. Moreover, it can reach up to 550MB/s read and 530MB/s write high performance based on Toggle 2.0 MLC flash (with 512MB DDR enabled and measured by CrystalDiskMark v3.0).

  • Compliant with SATA III and SATA v3.0 standard
  • Supports 120 bit ECC correct per 2K Byte data
  • Supports Fragment Writing and Flush Manager
  • Optional support for AES and voltage stabilizer
  • Shock resistance, anti-vibration and low power consumption
  • GUI management tool & software API package

Additional information

Connector Type Standard 7+15-pin SATA connector
Flash Type SLC / Ultra MLC / MLC
Capacity
  • SLC: 64 to 512GB
  • Ultra MLC: 64 to 512GB
  • MLC: 128GB to 2TB
Transfer Mode SATA III (6.0 Gbps)
Max. Power Consumption 2A
Sustained R/W Performance* SLC and MLC up to 540/520 MB/sec
Operating Temperature
  • Commercial Grade: 0 to +70 °C
  • Industrial Grade: -40 to +85 °C
Shock Resistance 1,500 G, Peak / 0.5 ms
Vibration Resistance 20 G, Peak / 80 ~ 2000 Hz
Dimensions (mm) 100.20 x 69.85 x 7
