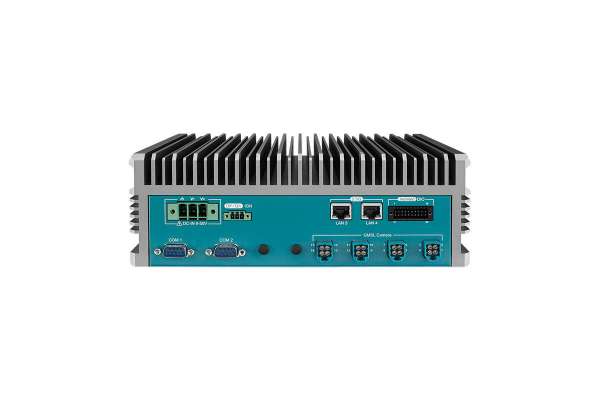

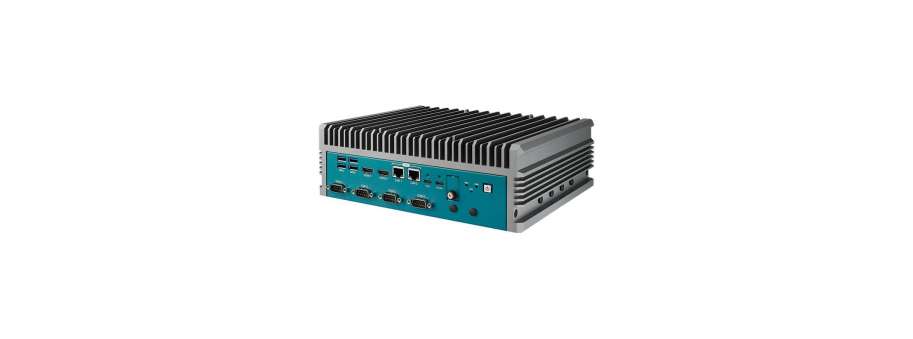

Fanless Edge AI computing system accelerated by the advanced NVIDIA® Jetson Thor™ Vecow EAC-7000

Manufacturer: Vecow
Facebook Twitter Linkedin Mail
  • NVIDIA® Jetson T5000™/Jetson T4000™, 2,070 FP4 TFLOPS
  • NVIDIA Isaac™ Perceptor Software Stack for AI Robot Development on NVIDIA Isaac™ ROS
  • NVIDIA Holoscan Sensor Bridge for low-latency various cameras and sensors data processing
  • Up to 16 GMSL 1/2 automotive cameras with Fakra-Z
  • Up to 4 10GigE, 2 2.5GigE, 4 GigE LAN with 4 PoE+
  • 4 Isolated CAN-FD, 2 COM RS232/422/485, 4 USB 3.1, 16-bit Isolated DIO (8DI, 8DO)
  • Multiple 5G/4G/LTE/WiFi/BT/GPRS/UMTS connections
  • Device remote management by Allxon (Optional)

Additional information

System
CPU
  • NVIDIA Jetson T5000 : 14-core Arm® Neoverse™ V3AE 64-bit CPU
  • NVIDIA Jetson T4000 : 12-core Arm® Neoverse™ V3AE 64-bit CPU
GPU
  • NVIDIA Jetson T5000 : 2,650-core NVIDIA Blackwell GPU with 5th Gen 96 Tensor Cores
  • NVIDIA Jetson T4000 : 1,536-core NVIDIA Blackwell GPU with 5th Gen 64 Tensor Cores
Memory
  • NVIDIA Jetson T5000 : 128 GB 256-bit LPDDR5X DRAM
  • NVIDIA Jetson T4000 : 64 GB 256-bit LPDDR5X DRAM
Software Support
  • Linux Ubuntu 24.04
  • NVIDIA JetPack™ 7.0 and above

I/O Interface
Button
  • 1 Power Button
  • 1 Force Recovery Button
  • 1 Reset Button
USB
  • 4 USB 3.1 Type-A
  • 1 USB Type-C for console debug port
  • 1 USB Type-C for OS flash port
Serial 2 COM RS-232/422/485
CAN Bus 4 Isolated CAN Bus support Flexible Data-rate
DIO 16 Isolated DIO (8 DI, 8 DO)
LED Power, SSD
SIM Card 2 Nano SIM Card Socket
Antenna 8 Antenna for 5G/WiFi/4G/LTE/GPRS/UMTS

Expansion
M.2
  • 1 M.2 Key B Socket for dual SIM (3042/3052, USB 3.0)
  • 1 M.2 Key B Socket (3042/3052/2280, PCIe x2)
  • 1 M.2 Key E Socket (2230/3042, PCIe x1/USB 2.0/UART3)

Graphics
Interface 2 HDMI, Up to 7680 x 4320 @30Hz
Video Encode
  • H.265 : 6x 4Kp60,12x 4Kp30, 24x 1080p60, 50x 1080p30
  • H.264 : 48x 1080p30, 6x 4Kp60
Video Decode
  • H.265 : 4x 8Kp30, 10x 4Kp60, 22x 4Kp30, 46x 1080p60, 92x 1080p30
  • H.264 : 82x 1080p30, 4x 4Kp60

Camera
GMSL
  • EAC-7100 : 8 Fakra-Z connectors for GMSL 1/2 automotive cameras
  • EAC-7200 : 4 x4 mini Fakra connectors for GMSL 1/2 automotive cameras

Storage
M.2 1 M.2 Key M Socket (2280, PCIe x4)

Ethernet
LAN 1 to LAN 2 2.5GigE LAN RJ45 Connector by Intel i226
LAN 3 to LAN 4 EAC-7200/7400 : 10GigE LAN RJ45 Connector by Marvell x3610

PoE+
LAN 3 to LAN 6 EAC-7300 : IEEE 802.3at (25.5W/48V) 1GigE PoE+ RJ45 LAN
LAN 5 to LAN 6 EAC-7400 : IEEE 802.3at (25.5W/48V) 10GigE PoE+ RJ45 LAN

Power
Power Input DC 9V to 50V
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch 3 pin remote switch
Ignition Control 16-mode Software Ignition Control

Optional
IMU 3-axis accelerometer and 3-axis gyroscope, I2C interface
Magnetometer 3-axis magnetic sensor, I2C interface
Altimeter Absolute barometric pressure sensor, I2C interface
TPM STMicroelectronics ST33KTPM2I
OOB Out-of-band management by Nuvoton NUC980

Mechanical
Dimensions 260 mm x 215 mm x 88 mm (10.24’’ x 8.46’’ x 3.46’’)
Weight 5.5 kg (12.13 lb)
Mounting Wallmount

Environment
Operating Temp. (with 0.63 m/s air flow)
  • 77W TDP Mode Fanless : -20°C to 45°C (-4°F to 113°F)
  • 77W TDP Mode Fan : -20°C to 70°C (-4°F to 158°F)
  • 130W TDP Mode Fan : -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @70°C
EMC CE, FCC, EN50155, EN50121-3-2
Shock Operating, MIL-STD-810G, Method 516.7, Procedure I
Vibration Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4
