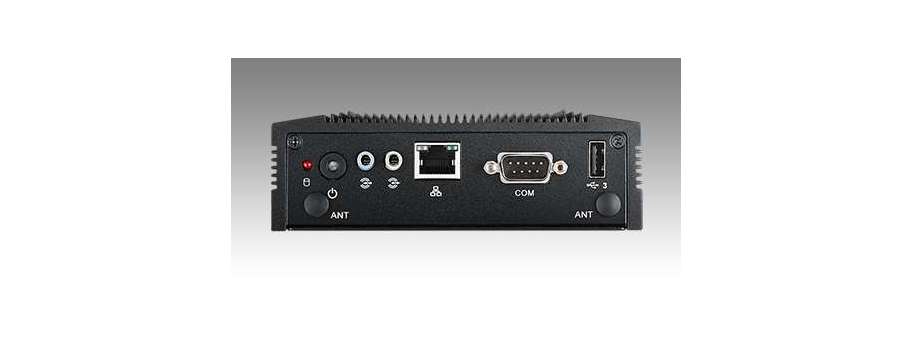

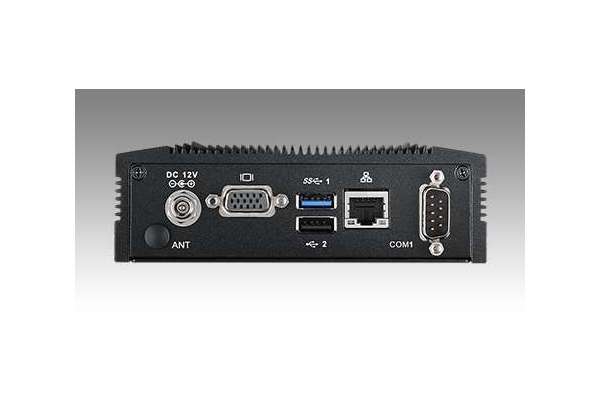

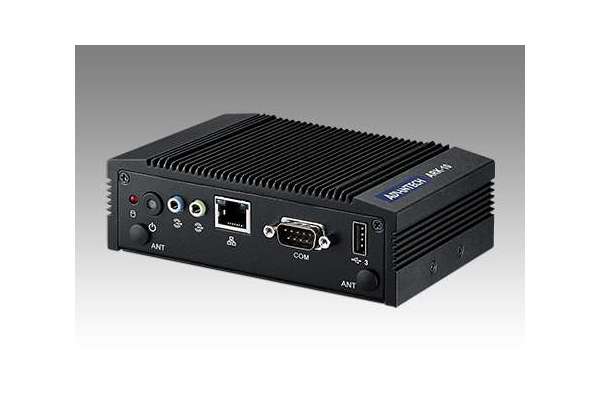

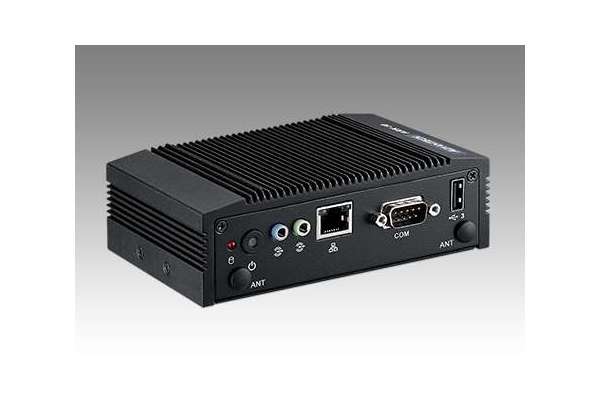

Ultra Slim PC ARK-10

Ultra Slim Fanless Embedded Computer ARK-10 on Intel® Celeron J1900 Quad Core SoC with Dual GbE and Dual COM

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Intel® Celeron Quad Core J1900 Quad Core SoC with Dual GbE and Dual COM Fanless Box PC

  • Intel® Celeron J1900 Quad Core 2.0 GHz SoC
  • 2G DDR3L Memory & 500G 2.5" 24x7 SATA HDD Built In
  • 2 x GbE for Multiple Internet Transmission
  • 2 x RS-232/422/485 (BIOS selection)
  • 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
  • 1 x Half-Size MiniPCIe (ex. mSATA)
  • Optional VESA / DIN Rail / Wall Mounting kits
  • Threaded DC jack design
  • Supports SUSIAccess and Embedded Software APIs

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-10-U0A2E Atom QC J1900 D1 2.0GHz w/2G RAM 500G HDD  21 402,1

Additional information

  ARK-10-U0A2E

Processor



CPU

Intel Celeron Processor J1900 Quad Core SoC

Core Number

4

Frequency

2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled)

L2 Cache

2 MB

BIOS

AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)

Memory



Technology

DDR3 1333MHz

Socket

1 x 204-pin SO-DIMM, 2 GB Memory Built In

Graphics



Chipset

Intel® Atom SoC integrated

Graphic Engine

DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 support Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2

VGA

1 x VGA, support up to 1920 x 1200 at 60Hz

Audio



Main System

ALC-888S, High Definition Audio. Line-out & Line-in

Ethernet



LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

I/O Interface



Serial Port

2 x RS-232/422/485 (BIOS selectable)

USB Interface

2 x USB 2.0 & 1 x USB3.0

Other



Watchdog Timer

255 levels timer interval, setup by software

Expansion



Mini PCIe

1 x Full-size Mini PCIe, support WLAN or WWAN module; 1 x Half-size Mini PCIe, support mSATA module

Storage



2.5" Drive Bay

1 x 500GB 2.5" 24x7 SATA HDD Built In

mSATA

1x Half-size mSATA (Suggest to assembly by CTOS or T-Part due to complex installation)

Software Support

Microsoft Windows

WES7, Windows 7, WE8S, Windows 8 (32-bit support by project)

Linux

Support (by Project)

Power



Input Voltage

12 VDC

Power Adaptor

AC to DC, DC12 V/3 A, 36 W with threaded design

Mechanical



Construction

Aluminum housing

Mounting

VESA/DIN Rail/Wall Mounting Kits (Optional)

Dimensions

133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")

Environment



Operating Temperature

0 ~ 50° C with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

0.5Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

10G, IEC 60068-2-27, half sine, 11 ms duration

Regulation



EMC

CE/FCC Class A, CCC, BSMI

Safety

UL, CCC, BSMI, CB
