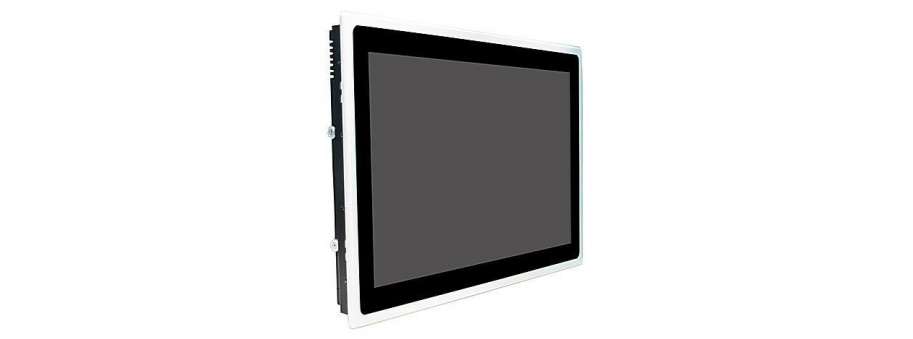

ASLAN-W Panel PC

Widescreen ARBOR ASLAN-W7XX computers on a Celeron J1900 without a fan with a 15", 18" or 21" capacitive screen

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: ARBOR Technology Co., Ltd.

A 16:9 wide touchscreen display allows you to display 40% more graphic information, which is especially important for controlling and displaying information in SCADA systems.

The panel computer has passive cooling and a high-performance graphics subsystem because of using a 4-core Intel Celeron J1900 processor with a clock frequency of 2.0GHz. The computer has 4 GB of RAM installed. 3 network interfaces and 4 serial ports. DVI output for connecting an additional monitor

Price and avalability

Partnumber Description Price VAT incl Avalability
ASLAN-W715C-1900G4 Панельный компьютер ARBOR Fanless 15.6" Wide-Screen Industrial Panel PC with Intel® J1900 Quad-Core™ Processor  45 464,2
ASLAN-W719C-1900G4 Панельный компьютер ARBOR Fanless 18.5" Wide-Screen Industrial Panel PC with Intel® J1900 Quad-Core™ Processor  48 613,0
ASLAN-W722C-1900G4 Панельный компьютер ARBOR Fanless 21.5" Wide-Screen Industrial Panel PC with Intel® J1900 Quad-Core™ Processor  54 523,9

Additional information

  • Additional Information

  • LED backlit display
    • ASLAN-W715C: 15.6" 1366 x 768 WXGA
    • ASLAN-W719C: 18.5" 1366 x 768 WXGA
    • ASLAN-W722C: 21.5" 1920 x 1080 FHD
  • Flat design with projected capacitive touchscreen
  • IP65 front panel
  • Scratch-resistant screen surface: 7H hardness
  • Vertical I / O port design
  • Easily accessible CFast / HDD / SSD drive slots
  • Serial RS-232/485 ports with automatic detection of transmission direction
  • Mini PCIe expansion slot for installing wireless modules and 2 mounting holes for SMA antennas
  • System design with passive cooling and without connecting cables using
  • Low energy consumption
  • Operating temperature range -20ºC ~ 55ºC
  • DC power 9 ~ 36V
