Advantech Delivers Higher Performance Network Security, Storage, and Edge Platforms based on AMD EPYC™ 7003 Series Processors
Advantech a global leader in AIoT, today announced a comprehensive portfolio of high-performance servers, motherboards and network appliances based on 3rd Gen AMD EPYC™ processors that set a new standard for the modern data center and network edge. The new off-the-shelf range includes high throughput network security appliances, short depth edge servers and hyper-converged infrastructure and storage platforms targeting edge to cloud deployments. In addition, service and solution providers can leverage Advantech’s strong hardware design and manufacturing capabilities to build server-class solutions tailored to deliver higher value to enterprise and industrial customers.
The new Advantech SKY servers and FWA appliances accelerate digital transformation by leveraging the exceptional per socket performance of AMD EPYC™ 7003 Series processors. Advantech’s new single and dual socket designs take advantage of up to 64 “Zen 3” cores per socket, 32MB of L3 cache and PCIe 4 connectivity to improve HPC, cloud and enterprise workload performance with high core density, I/O and memory throughput. The new platforms also integrate new security features through AMD Infinity Guard [1] such as Secure Encrypted Virtualization-Secure Nested Paging (SEV-SNP) that adds strong memory integrity protection capabilities to help prevent malicious hypervisor-based attacks. As a result, service and solution providers can deliver more efficient, lower TCO solutions that address today’s hybrid cloud computing, storage, networking and security needs.
Cloud, enterprise, industrial, healthcare, cybersecurity and video customers tapping into the new range can also leverage advanced hardware design capabilities from Advantech for faster time-to-market. Computing, storage and networking optimized platforms maximize performance, density and throughput for critical workloads. The new systems also integrate field-proven high reliability features from Advantech including advanced platform management and redundant BIOS and firmware images via on-board IPMI v2.0-compliant BMC with Redfish support that provide a safe way to recover from component failures and remote fail-safe updates. In addition, the new standard off-the-shelf platforms can be tailored leveraging Advantech design and manufacturing services to meet specific application requirements from minor branding, mechanical or firmware changes all the way up to fully customized configurations. All this combined with Advantech global services network and industrial 5+2 life cycle support.
“In a post pandemic world, enterprises demand fastest application performance to thrive in an uncertain, changing business environment,” said James Yang, vice president, Cloud IoT Group, Advantech. “Through our new portfolio based on 3rd Gen AMD EPYC™ processors , we empower customers to innovate faster and stay one step ahead of competition, by taking advantage of fantastic server CPU performance in a thoughtfully designed platform that can help improve a customer’s TCO.”
“The 3rd Gen AMD EPYC™ processor ecosystem continues to grow, giving customers broad options for next gen high-performance server, network security and storage appliances,” said Rajneesh Gaur, corporate vice president and general manager, Embedded Business Unit, AMD. “These new platforms from Advantech give customers access to higher performance and differentiated features enabled by AMD EPYC™ processors, while taking advantage of Advantech’s design capabilities to build optimized solutions for a wide range of vertical markets.”

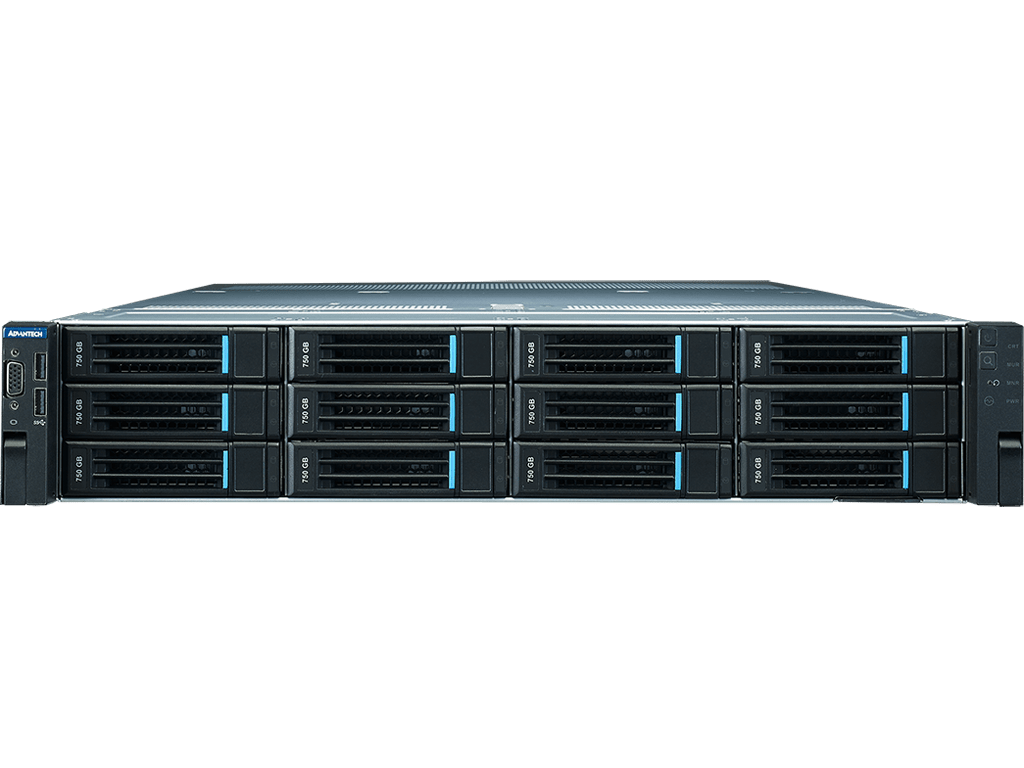

SKY-7260S – Hyper-converged Infrastructure and Storage Server
The new SKY-7260S is a 2U single socket enterprise server with up to 2TB memory, 64 powerful “Zen 3” cores, 200TB storage and high networking flexibility via 10G SFP+ and 10GBase-T OCP mezzanine modules. All this combined with AMD SEV, SME and Advantech in-house BMC management platform provides a reliable server and secure environment for next generation AI-driven ICT infrastructure.
- 1x AMD EPYC™ 7003 series processor
- Up to 16x DDR4-3200 ECC RDIMM/LRDIMM
- Up to 8 x PCIe slots for GPGPU and FPGA accelerator
- 12x 3.5” SAS/SATA HDD (4x tri-mode)
- 2x 2.5” NVMe SSD
- 2x M.2 2280 SATA or NVMe SSD
- 2x 1GbE, 1x 1GbE for IMPI, 1x Console port, 1x VGA port(rear), 1x VGA port(front), 1x OCP 3.0 slot, 2x USB 3.0(rear), 1x USB 2.0+1x USB 3.0(front)
- 1+1 redundant AC PSU
- 4x swappable fan with smart fan control
- 438mm (W) x 88mm (H) x 797mm (D)
The new SKY-8260S is a 2U single socket carrier-grade server designed to accelerate communication and other business critical workloads in 5G, intelligent edge and video solutions. Its high density, optimized performance, advanced reliability and environmental features make it ideal for cloud and communication service providers to power network edge, access and core software defined infrastructure use cases.

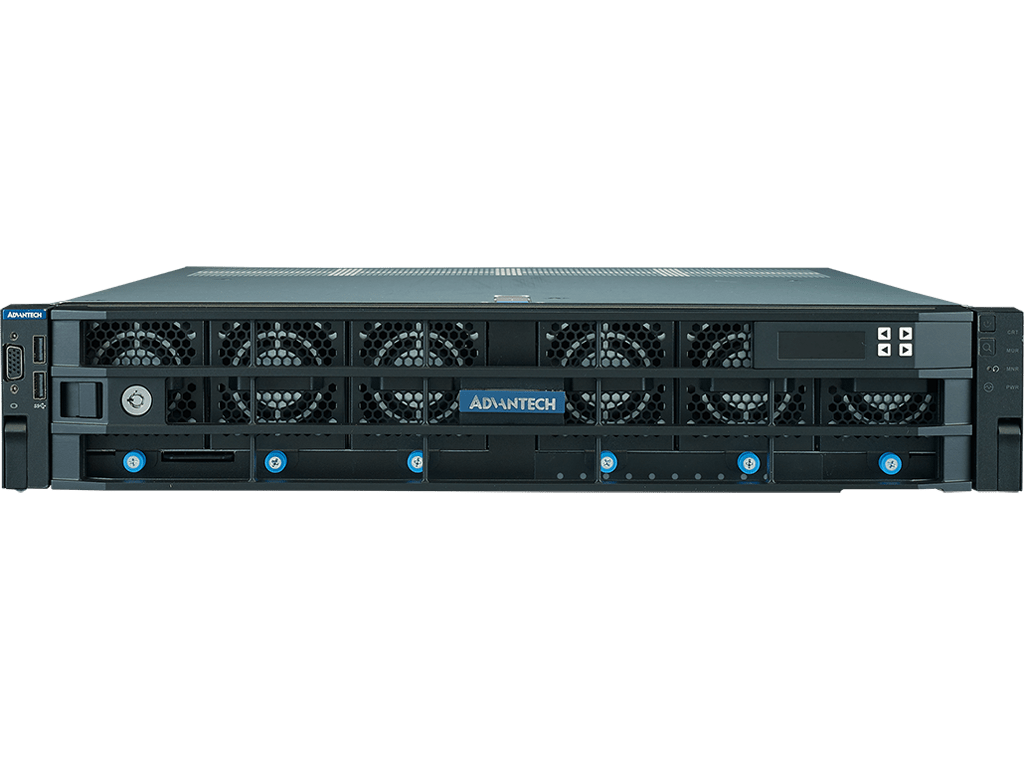

SKY-8260S – Short Depth Edge Server
- 1x AMD EPYC™ 7003 series processor
- Up to 16x DDR4-3200 ECC RDIMM/LRDIMM
- Up to 4x 2.5” SAS/SATA HDD/SSD or 2x NVMe U.2 SSD + 2x on-board M.2 2280 SATA
- Option1 : Up to 4x PCIe x16 + 2x PCIe x8 LP slots (or 1x PCIe x16 LP slot)
- Option2 : Up to 2x PCIe x16 + 4x PCIe x8 +2x PCIe x8 LP slots
- 1x console port + 1x VGA + 2x GbE RJ45 ports + 1xGbE RJ45 management port + 2x USB ports + 1x OCP3.0 module slot
- 6x pluggable, hot-swappable, N+1 redundant fan modules
- 1+1 redundant AC or DC PSU with separate power inlets
- 438mm (W) x 87mm (H) x 518mm (20.4”) (D)

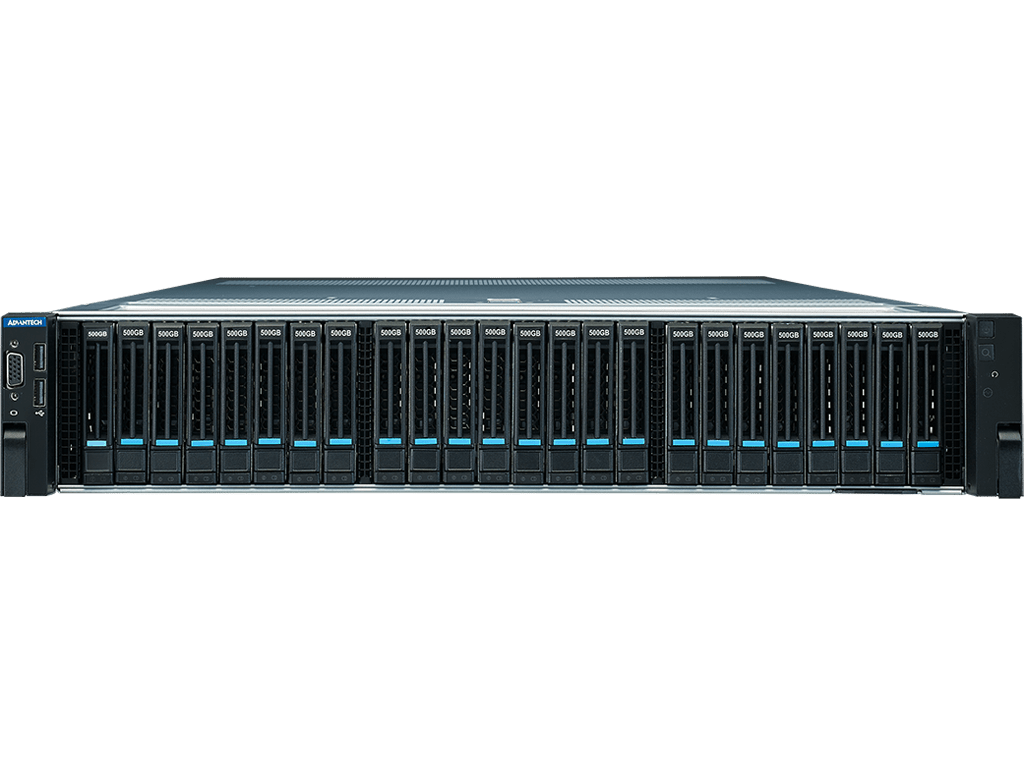

SKY-8260D – High Performance Storage Server
The new SKY-8280D is a 2U dual socket server that maximizes compute and storage performance and scalability for HPC and big data applications such as data protection, disaster recovery or genomic data analysis. Highly virtualized data center environments can benefit from its versatile storage duality being able to integrate hot to cold storage solutions over a single platform.
- 2x AMD EPYC™ 7003 series processors
- Up to 32x DDR4-3200 ECC RDIMM/LRDIMM
- Up to 24 x 2.5” SAS/SATA/NVMe HDD/SSD or 12 x 3.5” SAS/SATA HDD
- 2.5” SKU: Up to 2x PCIe x16 + 3x PCIe x8 slots
- 3.5” SKU: Up to 2x PCIe x16 + 4x PCIe x8 + 1x PCIe x16 LP slots
- 2 x on-board M.2 2280 NVMe
- 6 x pluggable, hot-swappable, N+1 redundant fan modules
- 1+1 redundant AC PSU with separate power inlets
- 440mm x 88mm x 800mm(31.5” Depth)
- 1 x Console port, 1x VGA ,2x GbE RJ45 ports, 1xGbE RJ45 management port, 2x USB ports ,1 x OCP3.0 module slot

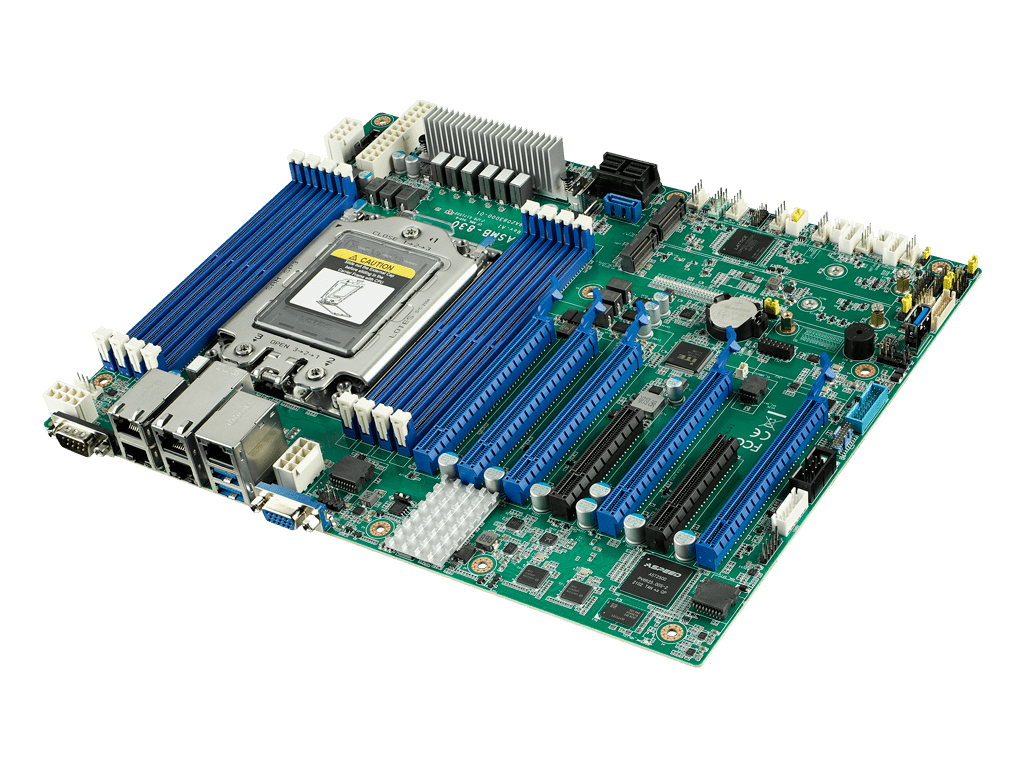

ASMB-830 – Industrial Server Mother Board
The new ASMB-830 is a single socket mother board that enables industrial server solutions for factory automation, optical inspection, intelligent manufacturing, warehouse management and medical image applications. Server-level solutions integrating the new ASMB-830 can leverage high density GPU-based AI acceleration through ample PCIe Gen 4 slot capacity.
- 1x AMD EPYC™ 7003 series processor
- Up to 8x DDR4 memory RDIMMs, one DIMM per channel
- Up to 5x PCIe x16 + 2x PCIe x8 slots
- 8x SATA III for HDD + 1x SATA III for other SATA device
- 1x NVMe M.2 22110 (PCIe + SATA) + 1x NVMe M.2 22110 (SATA)
- 1x VGA + 1x COM in rear side
- 5x USB Ports
- IPMI 2.0 (Dedicated NIC)
- Size: 12”x9.6”

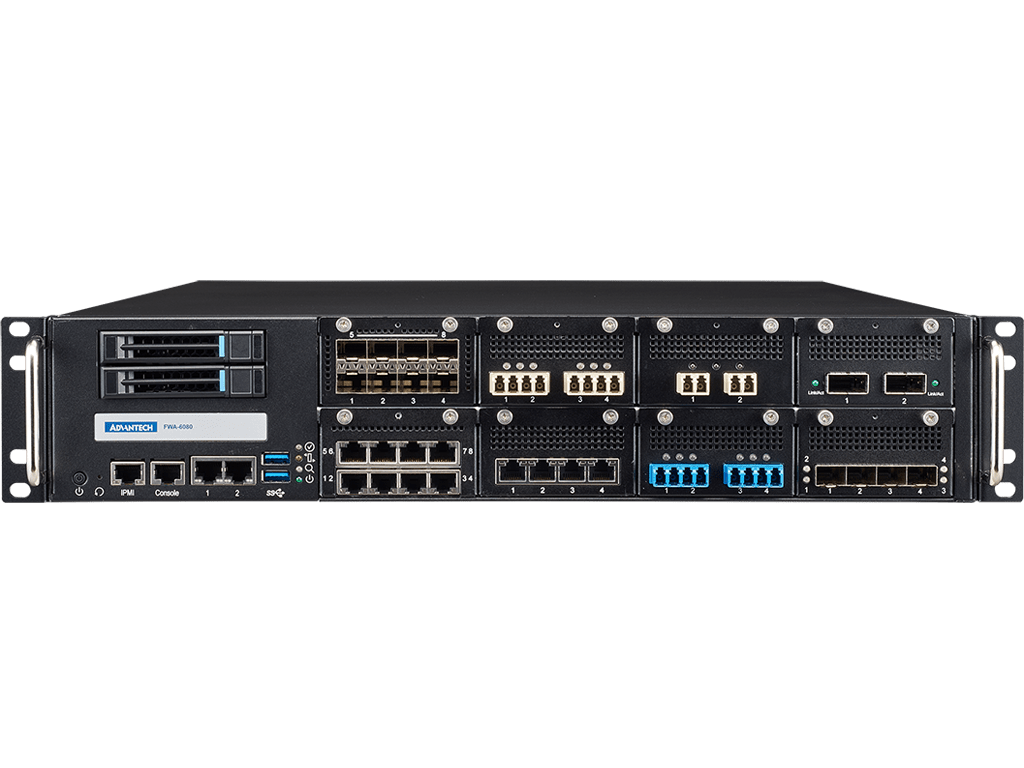

FWA-6080 – High Throughput Network Appliance
The new FWA-6080 is a 2U single socket network appliance made for cyber security vendors that require faster CPU performance to accelerate Next Generation Firewall (NGFW), Secure Web Gateway (SWG), Zero Trust Network (ZTN), and Hybrid Cloud Security solutions. Cloud-based cyber security providers leveraging the new FWA-6080 will be able to combine advanced security features from AMD and Advantech with flexible connectivity through Advantech Network Mezzanine Cards (NMC) to better protect their enterprise customers with higher throughput solutions.
- 1x AMD EPYC™ 7003 series processor
- 16x DDR4 3200/2933 R-DIMM for up to 4TB system capacity
- 8x Network Mezzanine slots with 16GB/s throughput per slot
- 2x front-accessible 2.5" SATA/PCIe gen4 SSD
- Redundant F/W images to minimize trouble-shooting resources
- High-level security protection by Advantech IPMI for out-of-band management and diagnostics
