The Winmate rugged, Industrial-grade panel PC series is built to withstand challenging environments, undergoing rigorous testing to ensure safety and top performance. All of the models in the series are sealed to at least IP65 Standards
We are often asked about some of the main features of our Stainless Steel IP65-IP67 Panel PC series. In this article, we delve into some of the main features and uses.
The Winmate rugged, Industrial-grade panel PC series is built to withstand challenging environments, undergoing rigorous testing to ensure safety and top performance. All of the models in the series are sealed to at least IP65 Standards.

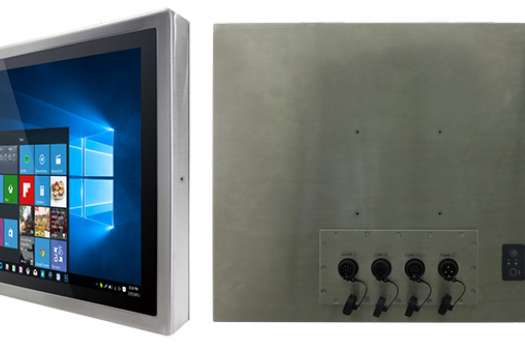

Winmate's Flat stainless steel P-Cap panel PCs and display go beyond that of the standard industrial panel computes with elegant, edge-to-edge design, rugged construction, powerful performance, and flexible mounting options.
Features
• Intel Celeron Bay Trail-M N2930 1.83GHz or Intel Core i5-5200U Broadwell 2.2GHz, or Display
• Screen sizes available in 10.4", 15", 17", 19", or 21.5"
• Stainless housing, built to withstand the most demanding industries
• Sealed to IP65 for protection against water and dust
• A true flat, easy-to-clean front surface with edge-to-edge design
• Flat multi-touch panel pc with superior readability and P-Cap technology
• Various mounting solutions, Yoke mount and VESA mount
• Plenty of I/O s including USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports
• Waterproof ports with adapter cables for external connectivity
Flat stainless steel P-Cap panel PCs product offering
| Bay Trail | 10.4” | 15” | 17” | 19” | 21.5” | ||||||||
| Model Name | R10IB3S-SPT2 | R15IB3S-SPC3 | R17IB3S-SPA1 | R19IB3S-SPA1 | W22IB3S-SPA3 | ||||||||
| Processor | Intel Celeron Bay Trail-M N2930 1.83GHz | ||||||||||||
| Broadwell | 15” | 17” | 19” | 21.5” | |||||||||
| Model Name | R15IH3S-SPC3 | R17IH3S-SPA1 | R19IH3S-SPA1 | W22IH3S-SPA3 | |||||||||
| Processor | Intel Core i5-5200U Broadwell 2.2GHz | ||||||||||||
| Panel Spec | 1024 x 768 350 nits 1000:1 |
1024 x 768 250 nits 700:1 |
1280 x 1024 350 nits 1000:1 |
1280 x 1024 400 nits 1000:1 |
1920 x 1082 250 nits 3000:1 |
||||||||
| Memory | 1 x SO-DIMM, Default 4GB, Max 8GB DDR3L 1600 | ||||||||||||
| Storage | Default 64GB | ||||||||||||
| Expansion Slot | 1 x mini PCIe (Internal) | ||||||||||||
| SSD Interface | 1 x mini PCIe SSD | ||||||||||||
| I/O |
|
||||||||||||
| Accessories |
|
||||||||||||
Flat stainless steel P-Cap display product offering
| 10.4” | 15” | 17” | 19” | 21.5” | |||||||||
| Model Name | R10L100-SPT2 | R15L100-SPC3 | R17L100-SPA1 | R19L100-SPA1 | W22L100-SPA3 | ||||||||
| Panel Spec | 1024 x 768 350 nits 1000:1 |
1024 x 768 250 nits 700:1 |
1280 x 1024 350 nits 1000:1 |
1280 x 1024 400 nits 1000:1 |
1920 x 1082 250 nits 3000:1 |
||||||||
| I/O |
|
||||||||||||
| Accessories |
|
||||||||||||
