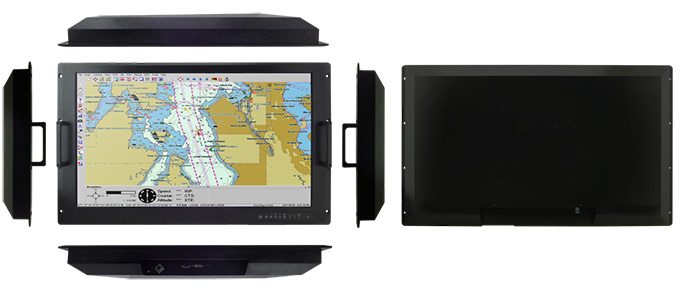

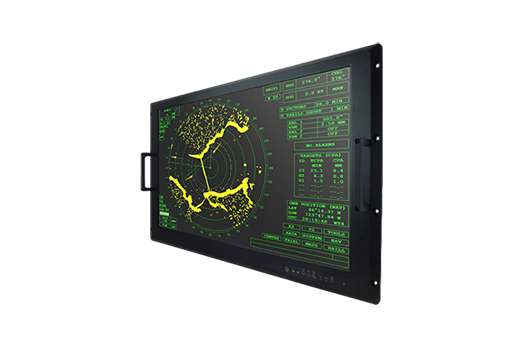

Introducing Winmate's 32-inch Military Display Solution

Winmate's Military Series of panel PCs and displays built to survive drops, shocks, liquid spills, vibrations, dust, salt, and extreme temperatures; our specially designed military line of products has also been tested for MIL-STD-810G environmental and MIL-STD 461F EMC standards.

Press Center >> Industrial news >> 29.03.2017

Winmate's Military Series of panel PCs and displays are durable, industrial-grade displays that have undergone rigorous testing to ensure safety and performance that goes beyond the military standard compliance. They are built to survive drops, shocks, liquid spills, vibrations, dust, salt, and extreme temperatures; our specially designed military line of products has also been tested for MIL-STD-810G environmental and MIL-STD 461F EMC standards. The rugged, high-resolution display offers optimized visibility with optical bonding and easy-to-use OSD front panel controls. The advanced computing platform enables faster searches and real-time positioning information, providing rapid response capabilities that are incomparable to a standard PC.

Winmate's Military Series of panel PCs and displays are durable, industrial-grade displays that have undergone rigorous testing to ensure safety and performance that goes beyond the military standard compliance. They are built to survive drops, shocks, liquid spills, vibrations, dust, salt, and extreme temperatures; our specially designed military line of products has also been tested for MIL-STD-810G environmental and MIL-STD 461F EMC standards. The rugged, high-resolution display offers optimized visibility with optical bonding and easy-to-use OSD front panel controls. The advanced computing platform enables faster searches and real-time positioning information, providing rapid response capabilities that are incomparable to a standard PC.

  • Military Grade Power Connector (MIL-DTL-38999 type I connectors)
  • Designed and tested for MIL-STD 810G/461F
  • VGA input with 5 x BNCs connector
  • AC built-in Power input / Isolation DC 9~36V Power input (Optional)
  • Standard AR Glass, Optional EMI Coating Glass
  • Optional 5-Wire Resistive touch with EMI Mesh Coating

Environmental (MIL-STD 810F/G Compliance)

Vibration

MIL-STD-810F/G Method 514.5

Humidity

MIL-STD-810F/G Method 507.4

Transit Drop

MIL-STD-810F/G Method 516.5

High Temperature

Storage: MIL-STD-810F/G Method 501.4
Operation: MIL-STD-810F/G Method 501.4

Low Temperature

Storage: MIL-STD-810F/G Method 502.4
Operation: MIL-STD-810F/G Method 502.4

Environmental (MIL-STD 416E/F Compliance)

RE

RE 101/ RE 102

CE

CE 101/ CE 102

Optional with EMI Glass / Touch

CS

RS 101/ RS 103

CS

CS 101/ CS 106 / CS 109 / CS 114 / CS 115 /
CS 116

Product Offering

Size

Military Display

Military Panel PC

Intel Celeron N2930 2.16GHz

Intel Core i7 4650U 3.3 GHz

MIL-DTL-38999 type I

MIL-DTL-38999 type I

MIL-DTL-38999 type III

17-inch

R17L100-RKA1ML

R17IB3S-RKA1ML

R17IH3S-MLA1-89

19-inch

R19L100-RKA2ML

R19IB3S-RKA2ML

R19IH3S-MLA1-89

20.1-inch

R20L100-RKA2ML

---

---

24-inch

W24L100-RKS1ML

W24IB3S-RKS1ML

W24IH3S-MLS1-89

32-inch

W32L100-RKA3ML

---

---
