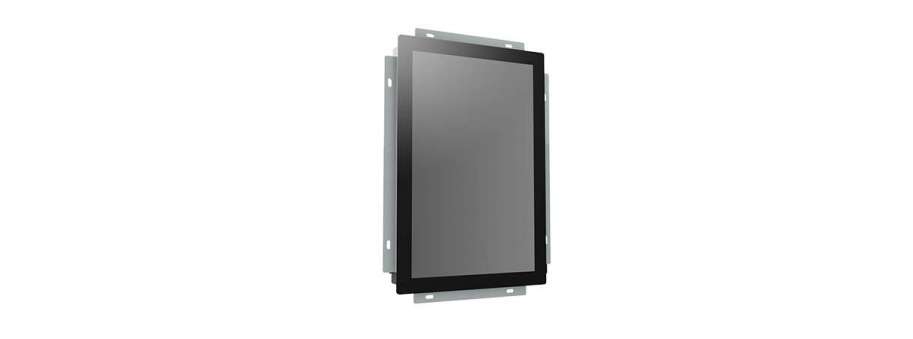

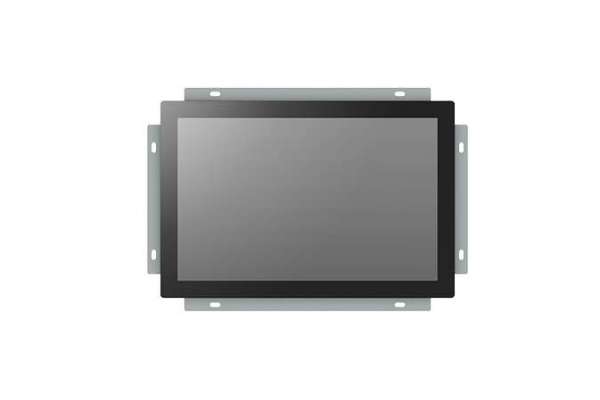

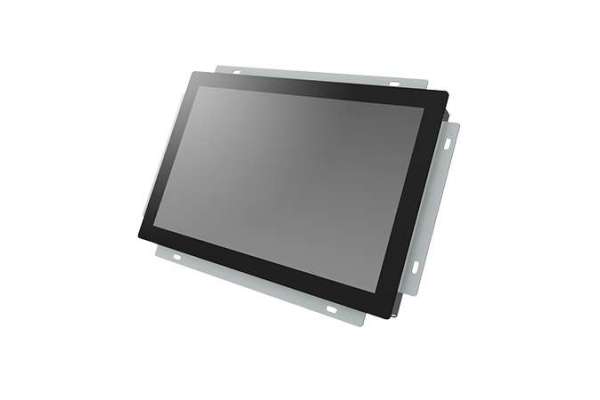

10.1" Open Frame Panel PC Advantech with Intel® Celeron® N3350 /Pentium® N4200

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-210GP-ATO2E 10" Pcap, N3350, 2G RAM, Openframe  33 479,9
UTC-210GP-ATO1E 10" Pcap, N4200, 2G RAM, Openframe  38 267,5

UTC-210 features one-piece solution and fan-less design that easy to embedded into kiosk chassis or wall mount type. Continuation of the advantage from UTC series, It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered

  • Low power and fanless system design
  • Built-in Intel® Celeron® N3350 / Pentium® N4200
  • 10.1" monitor with 16:10 widescreen display
  • Supports both landscape and portrait screen orientations
  • PoE supported on Celeron® N3350 / Pentium® N4200 platform

Additional information

Processor System

CPU Intel® Celeron® N3350 (UTC-210G) Intel® Pentium® N4200 (UTC-210G)
Base Frequency 1.10 GHz (Dual-Core) 1.10 GHz (Quad-Core)
Cache L2 Cache 1MB L2 Cache 2MB
Memory 1 x SO-DIMM DDR3L 1866 MHz up to 8 GB 1 x SO-DIMM DDR3L 1866 MHz up to 8 GB
Storage 1 x M.2 2242 SSD 1 x M.2 2242 SSD
Network (LAN)

2 x Gigabit Ethernet ports (Supports Wake on LAN)

2 x Gigabit Ethernet ports (Supports Wake on LAN)

I/O ports
  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 2 x USB3.0 / 2 x USB3.0 (optional)
  • 2 x Gigabit Ethernet ports (1 with PoE)
  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 2 x USB3.0 / 2 x USB3.0 (optional)
  • 2 x Gigabit Ethernet ports (1 with PoE)
Stereo Speaker (Optional) 1 x 2W 1 x 2W
Bus expansion 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Dimensions (W x H x D) 247 x 165.6 x 33.2 mm 247 x 165.6 x 33.2 mm
Weight 1.3kg (2.87lbs) 1.3kg (2.87lbs)

OS Support (Optional)

  • Win 10 IoT Enterprise 64bit
  • Android 6.0/8.1/10
  • Linux
  • Win 10 IoT Enterprise 64bit
  • Android 6.0/8.1/10
  • Linux

Environmental Specifications

Operating Temperature 0 ~ 40 °C (32 ~ 104 °F)* 0 ~ 40 °C (32 ~ 104 °F)*
Relative Humidity 10 ~ 95% @ 40 °C non-condensing 10 ~ 95% @ 40 °C non-condensing
Vibration 0.5G 0.5G
Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Certification CE, FCC CE, FCC

Power Supply

DC Input Rating 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter
PoE Optional IEEE 802.3at/30W Optional IEEE 802.3at/30W
Power consumption
  • Typical 25W
  • Max. 34W
  • Typical 25W
  • Max. 34W
Size/Type 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight
Max.Resolution 1280 x 800 1280 x 800
Max. Color 16.7M 16.7M
Pixel Pitch (um) 169.5 x 169.5 169.5 x 169.5
Brightness (cd/m2 ) 350 350
View Angle 170°/ 170° 170°/ 170°

Touch Screen Option (PE/GE)

Type Projected Capacitive. Glass Panel Projected Capacitive. Glass Panel
Light Transmission 80% ± 5% / 90% 80% ± 5% / 90%
Controller USB Interface USB Interface
