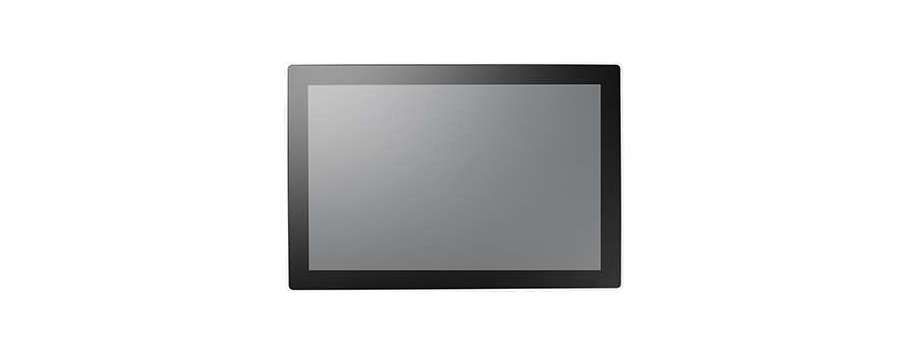

10.1" Ubiquitous Touch Computer Advantech UTC-310G with Intel® Celeron® N3350 / Pentium® N4200

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-310GP-ATB0E Панельний комп'ютер Advantech UTC-310 10.1" Pcap, N3350, 2G RAM, Black  48 655,6
UTC-310GP-ATB1E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 10.1"Pcap,N4200,2G RAM,Black  54 733,9
UTC-310GP-ATW0E Панельний компьютер Advantech 10.1"Pcap, N3350,2G RAM, White  48 655,6
UTC-310GP-ATW1E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 10.1"Pcap,N4200,2G RAM,White  54 733,9
UTC-310GP-USB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 10.1"Pcap,N3350,2G RAM,Black,All-in-one  48 655,6
UTC-310GP-USB1E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 10.1"Pcap,N4200,2G RAM,Black,All-in-one  54 733,9
UTC-310GP-USW0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 10.1"Pcap,N3350,2G RAM,White,All-in-one  48 644,6
UTC-310GP-USW1E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 10.1"Pcap,N4200,2G RAM,White,All-in-one  54 733,9

UTC-310 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • Low power and fanless system design
  • Built-in Intel® Celeron® N3350 / Pentium® N4200 (UTC-310G)
  • 10.1" monitor with 16:10 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Supports both landscape and portrait screen orientations
  • VESA 75 mm standard mounting holes for varied mounting demands
  • Detachable plastic frame design for panel mount applications
  • PoE supported on Celeron® N3350 / Pentium® N4200 platform

Additional information

Processor System

CPU Intel® Celeron® N3350 (UTC-310G) Intel® Pentium® N4200 (UTC-310G)
Base Frequency 1.10 GHz (Dual-Core) 1.10 GHz (Quad-Core)
Cache L2 Cache 1MB L2 Cache 2MB
Memory 1 x 204 pin SO-DIMM DDR3L 1600 MHz up to 8 GB 1 x 204 pin SO-DIMM DDR3L 1600 MHz up to 8 GB
Storage 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage bay (2.5" N/A with Internal PoE) 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage bay (2.5" N/A with Internal PoE)
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)

I/O ports

  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 2 x USB3.0 / 2 x USB3.0 (optional)
  • 2 x Gigabit Ethernet ports (1 with optional PoE)
  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 2 x USB3.0 / 2 x USB3.0 (optional)
  • 2 x Gigabit Ethernet ports (1 with optional PoE)
Stereo Speaker 1 x 2W 1 x 2W
Bus expansion 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Mounting VESA 75 x 75 mm (Screw Size, M4, 6mm) VESA 75 x 75 mm (Screw Size, M4, 6mm)

Dimensions

(W x H x D)

251 x 170 x 32.5 mm 251 x 170 x 32.5 mm
Weight 1.12kg (2.46lbs) 1.12kg (2.46lbs)

OS Support

  • Win 10 IoT Enterprise 64bit
  • Android6.0/8.1
  • Linux
  • Win 10 IoT Enterprise 64bit
  • Android6.0/8.1
  • Linux

Environmental Specifications

Operating Temperature 0 ~ 40 °C (32 ~ 104 °F)* 0 ~ 40 °C (32 ~ 104 °F)*
Relative Humidity 10 ~ 95% @ 40 °C non-condensing 10 ~ 95% @ 40 °C non-condensing
Vibration 0.5G 0.5G
Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Certification CE, FCC, CB, UL, CCC, BSMI CE, FCC, CB, UL, CCC, BSMI
Front Panel Protection IP 65 Compliant IP 65 Compliant

Power Supply

DC Input Rating 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter
PoE IEEE 802.3at/30W (Optional, N/A with 2.5" storage) IEEE 802.3at/30W (Optional, N/A with 2.5" storage)
Power consumption
  • Typical 25W
  • Max. 34W
  • Typical 25W
  • Max. 34W

LCD Display

Size/Type 10.1" TFT LCD with LED backlight 10.1" TFT LCD with LED backlight
Max.Resolution 1280 x 800 1280 x 800
Max. Color 16.7M 16.7M
Pixel Pitch (um) 169.5 x 169.5 169.5 x 169.5
Brightness (cd/m2 ) 350 350
View Angle 170°/ 170° 170°/ 170°

Touch Screen Option (PE/GE)

Type Projected Capacitive. Glass panel (by required) Projected Capacitive. Glass panel (by required)
Light Transmission 80% ± 5% / 90% 80% ± 5% / 90%
Controller USB Interface USB Interface
