2xCOM Input 24V DC IP66 RS232 RS485 Standard T range

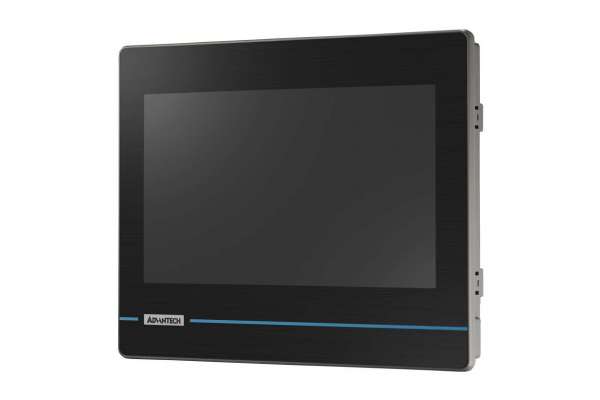

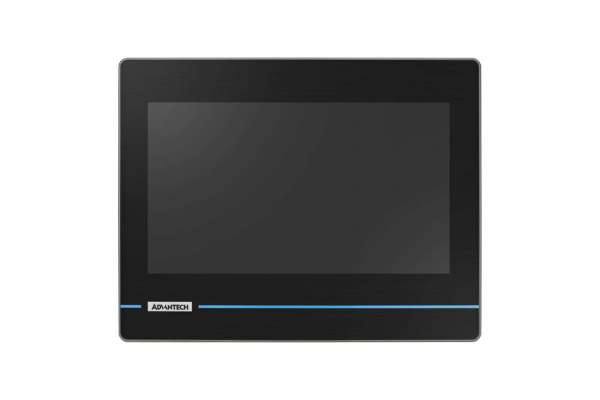

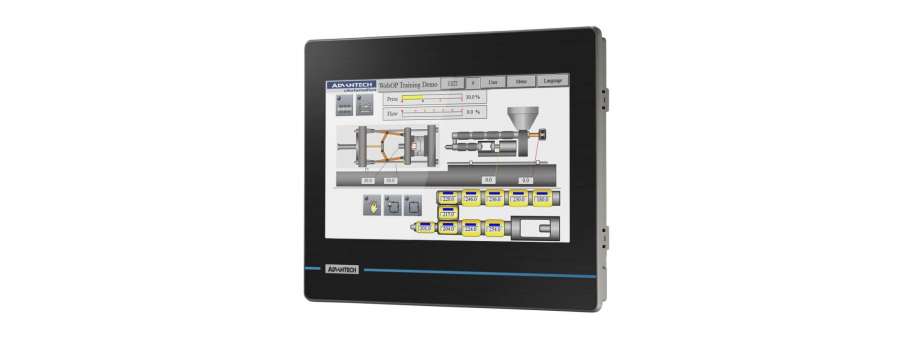

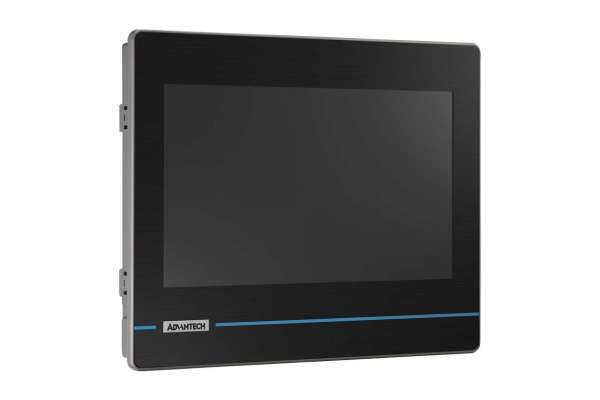

10.1" WSVGA Operator Panel Advantech Installed with HMINavi Software [RTOS] WOP-210K

Price and avalability

Partnumber Description Price VAT incl Avalability
WOP-210K-NAE Панель оператора Advantech WOP-210K, 10.1" WSVGA, 64MB, 128MB(NAND), Serialx3, Ethernet  40 896,5

To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and F&B applications, Advantech developed the WOP-200K series for diverse operations that involve PLCs, thermal controllers, inverters, and sensors. Powered by an ARM9™ 32-bit RISC processor with 64 MB working memory, the WOP-200K series systems are available with LCDs of varying size (from 4.3" to 15"). Additionally, WOP-200K systems are bundled with Advantech’s HMINavi software – a human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization. Powerful connectivity drivers support 500+ variety market brands of PLC.

  • ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  • Supports over 500+ PLC industrial communication protocols
  • Backup memory 128KB for retaining critical data or parameter
  • Supports the HMINavi Designer development tool free on Windows 10
  • Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  • No limitation on the internal I/Os points used for variety application
  • Reliable firmware setting from HMINavi software for 24/7 operation
  • Easy to switch one application to different LCD sizes in seconds
  • Supports operation in both landscape and portrait mode
  • Panel mount design ensures easy installation and IP66-rated front panel

Additional information


Certification CE, FCC, UL61010
Dimensions (W x H x D) 270.1 x 212.1 x 43.4mm (10.63' x 8.35' x 1.71')
Cutout Dimensions 259.5 x 201.5mm (10.22' x 7.93')
Front Panel Thickness 6 mm (0.23 in)
Operating System HMI RTOS, HMINavi Designer
Power Supply Voltage 24VDC ± 10%, Isolation
Power Consumption 20W
Enclosure Housing Plastic
Mount Options Panel
Weight (Net) 1.1 kg (2.43 lbs)

System Hardware

CPU ARM9™ 32-bit RISC processor
Battery Backup Memory 128KB
Working Memory 64 MB SDRAM
  • 128 MB NAND Flash
  • Runtime Max Size: 64 MB
  • Data Logger Max Size: 64 MB

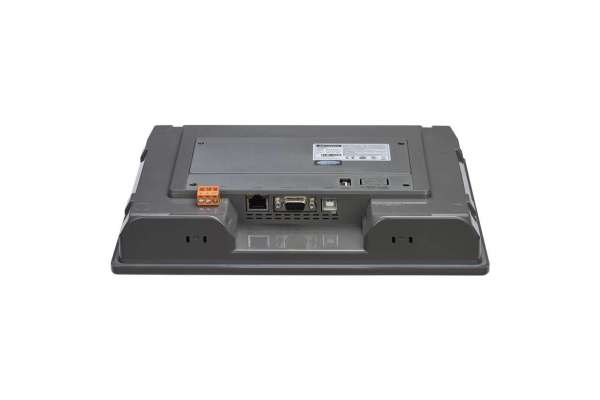

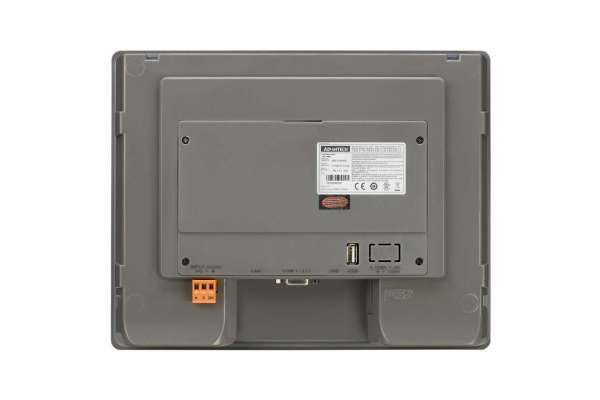

Communication Interface

COM1 RS-232 (DB9 Female)
COM2 RS-422/485 (COM1: Pin 1, 4, 5, 6, 9)
COM3 RS-485 (COM1: Pin 5, 7, 8)
Ethernet (RJ45) 10/100-BaseT
  • 1 x USB (Client)
  • 1 x USB (Host)

LCD and Touchscreen

Display Type WSVGA TFT LCD
Display Size 10.1"
Max. Resolution 1024 x 600
Max. Colors 65,536 colors
Luminance (cd/m2 ) 350
Backlight Life LED, 20,000 hr
Touchscreen 4 wires analog resistive


Operating Temperature -10 ~ 60°C (14 ~ 140° F)
Storage Temperature -20 ~ 70°C (-4 ~ 158° F)
Humidity 95% RH @ 40°C, non-condensing
Ingress Protection Front panel: IP66
Vibration Protection 5 ~ 500Hz (X,Y,Z direction, 1Grms, 1hour per axis)
