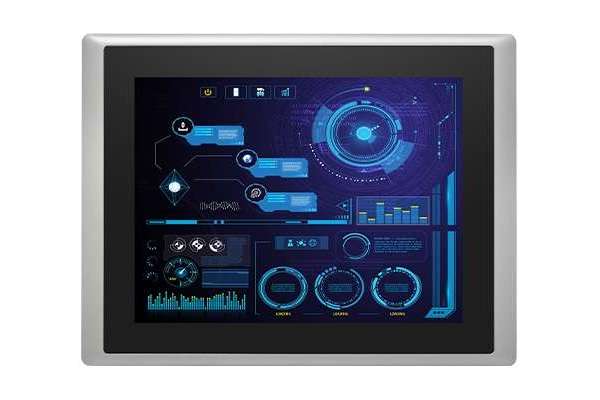

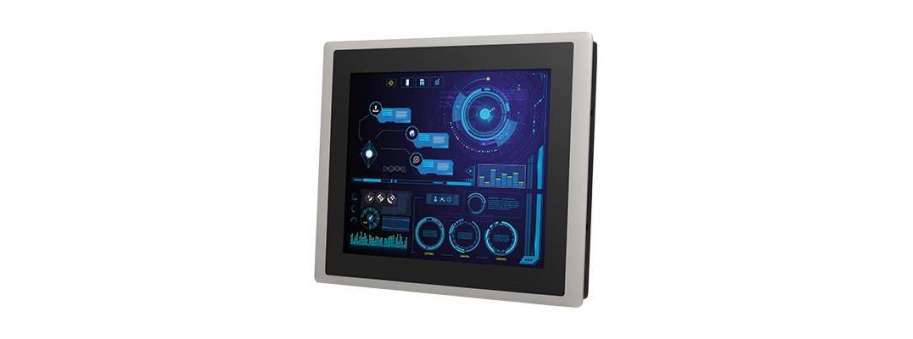

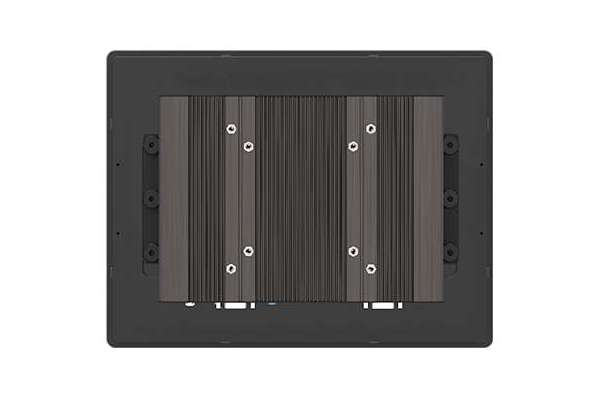

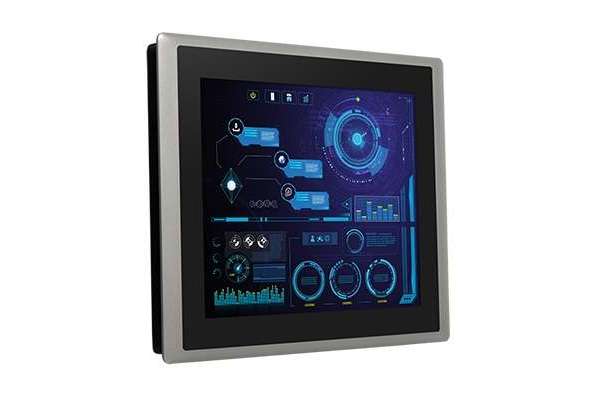

TFT-LCD SVGA Touch Monitor with Resistive 5-wire / Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA Cincoze CV-110/M1101
The Cincoze CV-110/M1101 series modular industrial touch monitors are suitable for the display requirements of equipment HMI and production process visualization in harsh on-site applications. The wide selection of screen sizes and touch options are just some of the features. The patented CDS (Convertible Display System) technology makes field side maintenance easier and enables simpler upgrades in the future.
The CV-110/M1101 series supports digital and analog signal inputs, including HDMI, DisplayPort and VGA. It also has a multi-language OSD and supports multiple installation methods, including panel, VESA, and rack mount, so the monitor can adapt to deployment in a variety of application scenarios.
- 10.4” TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Casting Front Frame
- Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
- Support USB & RS-232 Interfaces for Touch Function
- OSD Control keys for Brightness Adjustment
- Convertible Display System (CDS) Supported
- True Flat IP65 Front Panel Protection
- Support Panel / VESA / Rack Mount
Additional information
Display |
|
| LCD Size |
10.4" (4:3)
|
| Max. Resolution |
800 x 600
|
| Brightness (cd/m2) |
400
|
| Contrast Ratio |
700 : 1
|
| LCD Color |
16.2M
|
| Pixel Pitch (mm) |
0.264 (H) x 0.264 (V)
|
| Viewing Angle (H-V) |
160 / 130
|
| Backlight LED Life Time |
70,000 hrs (LED Backlight)
|
Touch Screen |
|
| Touch Type |
|
Physical |
|
| Dimension ( W x D x H ) |
295 x 227.3 x 56.2 mm
|
| Weight Information |
2.24 kg
|
| Mechanical Construction |
Die-Casting Flat Surface
|
Power |
|
| Power Consumption |
3.38W (Typ.) (for CV-110R)
3.33W (Typ.) (for CV-110C)
|
Environment |
|
| Front Panel Protection |
IP 65 Compliant
|
| Operating Temperature |
Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripher) (for CV-110R)
Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals) (for CV-110C)
|
| Storage Temperature |
-30°C to 80°C
|
| Relative Humidity |
90% RH @ 40°C (Non-condensing)
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
Graphics |
|
| HDMI-in |
1x HDMI Connector (1920 x 1080 @60Hz)
|
| DP-in |
1x DisplayPort Connector (1920 x 1080 @60Hz)
|
| VGA-in |
1x VGA Connector (1920 x 1080 @60Hz)
|
Audio |
|
| Audio input |
1x Audio Line in, Phone Jack 3.5mm
|
I/O |
|
| COM |
1x RS-232, DB9
|
| USB |
1x 480Mbps USB 2.0, Type A
|
Power |
|
| Power Input |
9 - 48VDC, 3-pin Terminal Block
|
Physical |
|
| Dimension ( W x D x H ) |
204.5 x 149 x 38.5 mm
|
| Weight Information |
1.2 kg
|
| Mechanical Construction |
Extruded Aluminum with Heavy Duty Metal
|
| Mounting |
VESA / CDS Mounting
|
| Physical Design |
|
Environment |
|
| Operating Temperature |
-20°C to 70°C
* Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
|
| Storage Temperature |
-20°C to 75°C
|
| Relative Humidity |
95%RH @ 70°C (non-Condensing)
|
| Shock |
Operating, 15 Grms (according to IEC60068-2-27)
|
| Vibration |
|
| EMC |
|
| EMI |
|
| EMS |
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
