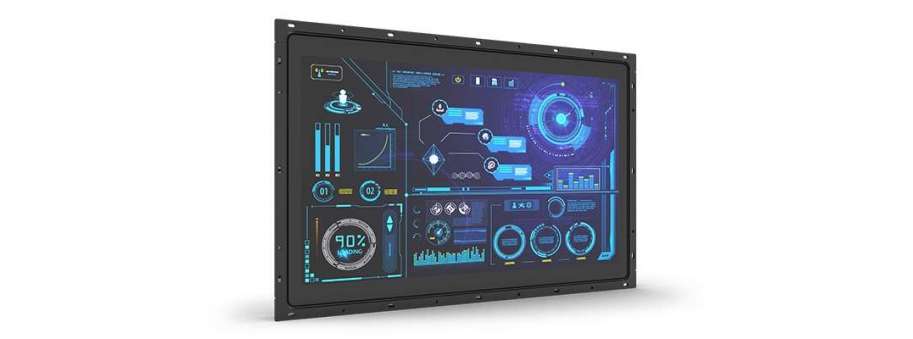

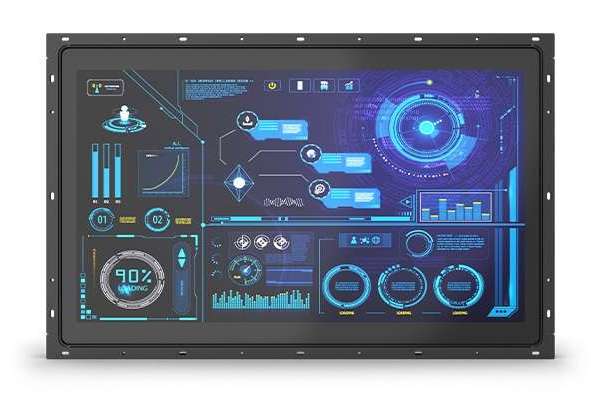

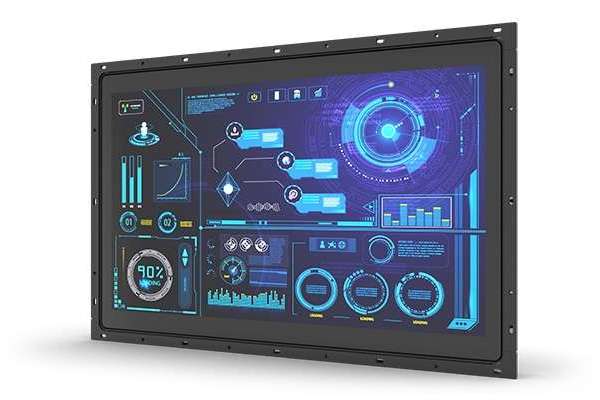

TFT-LCD Full HD Open Frame Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA Cincoze CO-W124C/M1101
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| CO-W124C-R10/M1101-R10 | Сенсорний OpenFrame монітор Cincoze 24" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch + Display Module (VGA, DP, HDMI) | 174 806,0 |
The Cincoze CO-100/M1101 series open frame industrial touch monitors include HDMI and DisplayPort digital inputs, and VGA analog input. The biggest highlight is its patented adjustable mounting bracket with thickness adjustment and locking types to make installation easier. The CO-100/M1101 is designed for equipment manufacturers and seamlessly integrates into control cabinets of various materials and thicknesses. Its rugged design takes into account the tough application requirements of field-side HMI in harsh industrial environments.
- 24” TFT-LCD with Projected Capacitive Touch
- Designed with Adjustable Mounting Bracket
- Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
- Support USB & RS-232 Interfaces for Touch Function
- OSD Control keys for Brightness Adjustment
- Cincoze Patent CDS Technology Support
- Front Panel IP65 Compliant
- Support Flat / Standard / VESA / Rack Mount
Additional information
Display |
|
| LCD Size | 24” (16:9) |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 5000 : 1 |
| LCD Color | 16.7M |
| Pixel Pitch | 0.27675(H) x 0.27675(V) mm |
| Viewing Angle | 178 (H) / 178 (V) |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
Touch Screen |
|
| Touchscreen Type | Projected Capacitive Touch |
| Wet Touch Tracking | v |
Physical |
|
| Dimension (W x D x H) | 604 x 387.2 x 63.3mm |
| Weight | 8.3 kg |
| Construction | One-piece and Slim Bezel Design |
| Mounting Type | Flat / Standard / VESA / Rack Mount |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) |
Power |
|
| Power Consumption | 23.75W (Max.) |
Protection |
|
| Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
Environment |
|
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) (With Industrial Grade peripherals; Ambient with air flow) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Humidity | 90% RH @ 40°C (non-Condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
Graphics |
|
| HDMI-in | 1x HDMI Connector (1920 x 1080 @60Hz) |
| DP-in | 1x DisplayPort Connector (1920 x 1080 @60Hz) |
| VGA-in | 1x VGA Connector (1920 x 1080 @60Hz) |
Audio |
|
| Audio input | 1x Audio Line in, Phone Jack 3.5mm |
I/O |
|
| COM | 1x RS-232, DB9 |
| USB | 1x 480Mbps USB 2.0, Type A |
Power |
|
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
Physical |
|
| Dimension ( W x D x H ) | 204.5 x 149 x 38.5 mm |
| Weight Information | 1.2 kg |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |

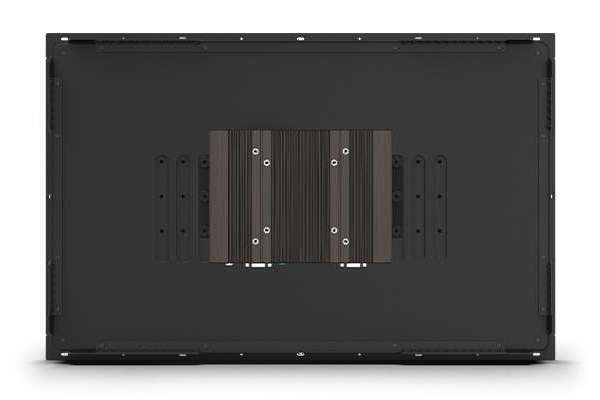

| Mounting | VESA / CDS Mounting |
| Physical Design |
|
Environment |
|
| Operating Temperature |
-20°C to 70°C
* Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -20°C to 75°C |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | Operating, 15 Grms (according to IEC60068-2-27) |
| Vibration |
|
| EMC |
|
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
